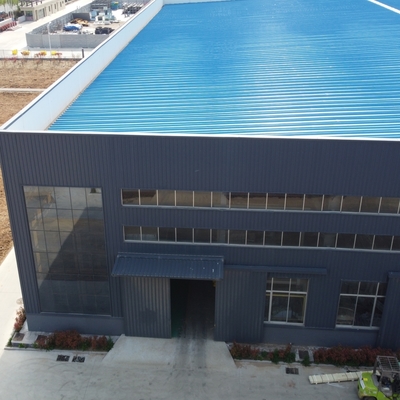

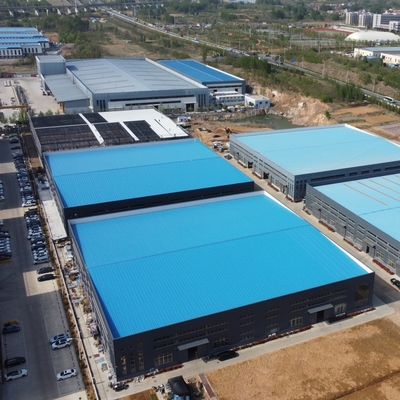

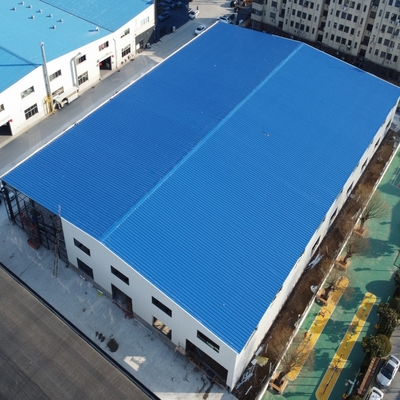

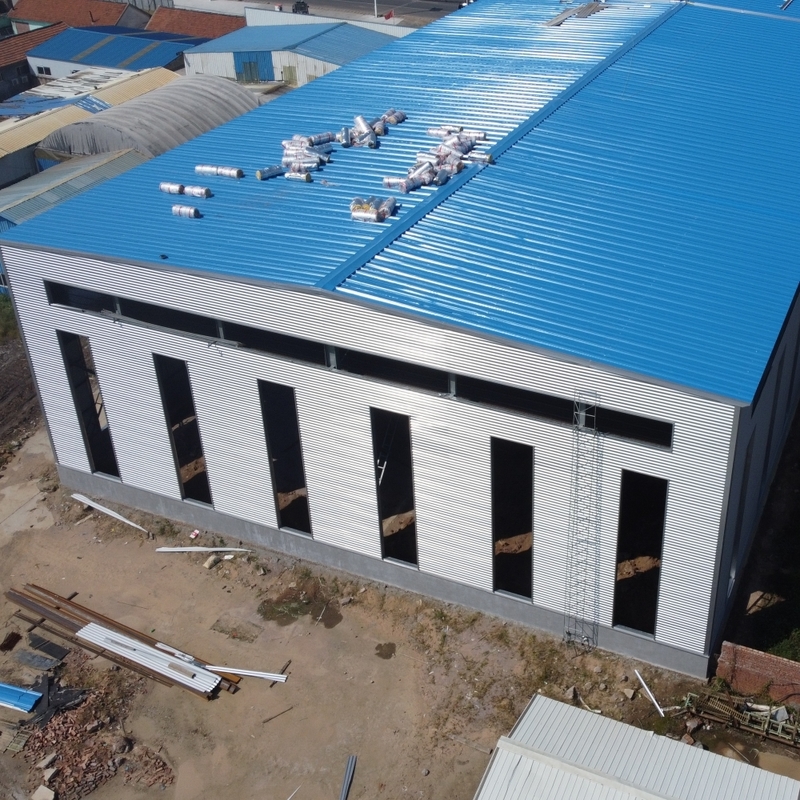

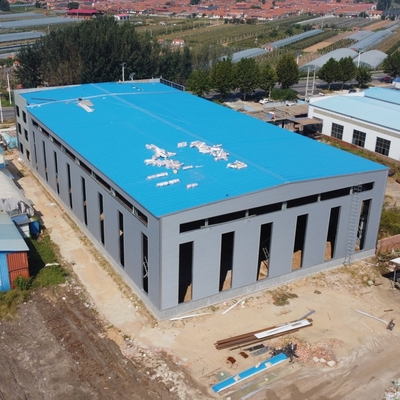

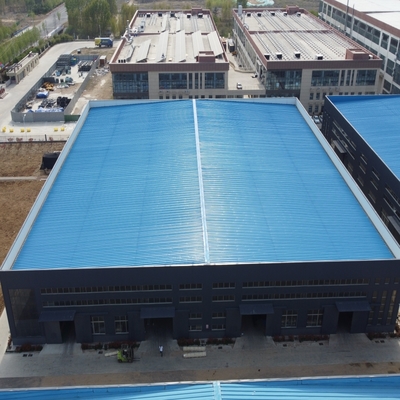

Lightweight Prefabricated Steel Warehouse With Overhead Crane

Lightweight Prefabricated Steel Warehouse With Overhead Crane
Lightweight Prefabricated Steel Warehouse With Overhead Crane Lightweight Prefabricated Steel Warehouse With Overhead Crane

Large Image :  Lightweight Prefabricated Steel Warehouse With Overhead Crane

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV,ISO
Model Number: Ruly0059
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square meters
Price: USD25-USD95 Per Square meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 Ton Per Month

Lightweight Prefabricated Steel Warehouse With Overhead Crane

Description
Features: Steel Warehouse With Overhead Crane Appilcation: Prefabricated Steel Warehouse
Raw Steel Material: Q235B, Q355B, ASTM A36, Surface Treatment: Painting Or Hot-dip Galvanize
Service Life: 50 Years Wall And Roof: Glass Wool Sandwich Panel
Columns And Beam: H Section Column&Beam, Latticed Column Service: Design,Fabrication, Installation
High Light:

steel structure building

,

metal storage buildings

,

Lightweight Prefabricated Steel Warehouse



Lightweight Prefabricated Steel Warehouse With Overhead Crane


Lightweight Prefabricated Steel Warehouse With Overhead Crane mainly refers to the steel structure buildings that is consisted of lightweight steel beams and columns, welded steel structure components are connected by bolts.  Take this project as an example: this steel structure warehouse is used to store metal raw material. It will install a 5 Ton electric single girder crane on the crane beam. To provide more working space in this building, we dont design the middle steel column in it. Because of the small wind load and crane load, the steel quantity for this project is only 35  kg per square meter.

Project information of Structural steel frame warehouse buildings:



Name

Lightweight Prefabricated Steel Warehouse With Overhead Crane

Structure Type Portal frame, single ridge, single span
Length 80m
Width 20m
Eave Height 8m
span  single span
Steel structure quantity 60 Ton
Column&Beam  H-section steel, latticed column, honeycomb beam, truss beam
Roof & Wall sandwich panel

0.5mm steel cladding sheet

Door Sliding door
Window Ribbon Skylight



Main parts of the steel structures and technical parameters:



Steel Frame H section steel Q235/Q345 steel 8mm/10mm
Welding Automatic submerged arc welding
Rust removal Sand blasting
Surface finish Alkyd paint or galvanized
Intensive bolt M20,Grade 10.9
Supporting System Angle brace L50x4,Steel Q235, processed and painted
Horizontal brace Φ20, Steel Q235, processed and painted
Column brance Φ20, Steel Q235, processed and painted
Tie rod Φ89*3, Steel Q235, processed and painted
Ordinary bolt M12 Galvanized bolt
Roof Purlin C160*60*2.5,Steel Q235, galvanized and painted
Roof panel  0.5mm steel cladding sheet
Sky light 6mm thick PVC
Accessories Glass cement, self-tapping screws, etc.
Edge cover 0.4mm steel sheet profile trimming
Gutter 0.4mm thick sheet steel profile or galvanized sheet
Down pie Φ110PVC
Walls Purlin C160*60*2.5,Steel Q235, painted
Wall 0.5mm steel cladding sheet
Accessories Glass cement, self-tapping screws, etc.
Edge cover 0.4mm steel sheet profile trimming
Ventilation Ventilation ball
Doors & windows Rolling door/sliding door PVC/alu/steel/window



Steel Designing & Detailing:

 We could design the drawing as your requirement or calculate the steel quantity based on your drawing. We have a dedicated steel structure engineering design department and research and development department, and established an independent and complete steel structure engineering design, optimization and deepening design system. Establishing engineering materials than building materials, we not only control the reliability and economy of the structure, but also the categories, performance, selection and combination of traditional enclosing materials and new maintenance materials. Our design is not only more applicable, safer, more economical, but also rich in architectural beauty.

Lightweight Prefabricated Steel Warehouse With Overhead Crane 0

Our steel structure fabrication factory:

We are manufacture factory. Welcomed to visit us at any time. The quality control flow and sales team will show you our professionalism. Also you will get best and most competitive price after visiting us.

Lightweight Prefabricated Steel Warehouse With Overhead Crane 1



Why us?


1. Professional design team, we could design the drawing as your requirement or calculate the steel quantity based on your drawing.
2. Skilled fabrication team and advanced equipment. We make the independent production schedule to each project.
3. One-stop service: We have completed lots such kinds of projects, we could provide the integrated proposal for your project.
4. Professional QC team will guarantee that we will provide the production and service as your request.
5. After sales service: If it has any questions that need us to do in your process of using, such as the maintain of outside insulation and steel components, just tell us , we will try to provide the service as well as we can.



How to quote:


The following question we need to know before making the price. Just feel free to fill what you know.

1 Location (where will be built?) _____country, area
2 Size: length*width*height _____mm*_____mm*_____mm
3 wind load (max. wind speed) _____kn/m2, _____km/h, _____m/s
4 snow load (max. snow height) _____kn/m2, _____mm
5 anti-earthquake _____level
6 brickwall needed or not If yes, 1.2m high or 1.5m high
7 thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; . if not, the metal steel sheets will be ok. The cost of the latter will be much
lower than that of the former
8 door quantity & size _____units, _____(width)mm*_____(height)mm
9 window quanity & size _____units, _____(width)mm*_____(height)mm
10 crane needed or not If yes, _____units, max. lifting weight____tons; max. lifting height _____m
