Pre Engineered Portal Frame Warehouse with Glass Wool Panels

Pre Engineered Portal Frame Warehouse with Glass Wool Panels
Pre Engineered Portal Frame Warehouse with Glass Wool Panels
Pre Engineered Portal Frame Warehouse with Glass Wool Panels Pre Engineered Portal Frame Warehouse with Glass Wool Panels Pre Engineered Portal Frame Warehouse with Glass Wool Panels Pre Engineered Portal Frame Warehouse with Glass Wool Panels Pre Engineered Portal Frame Warehouse with Glass Wool Panels Pre Engineered Portal Frame Warehouse with Glass Wool Panels Pre Engineered Portal Frame Warehouse with Glass Wool Panels

Large Image :  Pre Engineered Portal Frame Warehouse with Glass Wool Panels

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, ,ISO, BV
Model Number: Ruly0023
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 20000 Square Meter Per Month
Contact Now

Pre Engineered Portal Frame Warehouse with Glass Wool Panels

Description
Features: Multi Span Steel Structure Warehouse Keywords: Pre Engineered Portal Frame Warehouse
Raw Steel Material: Q235B, Q355B Surface Treatment: Painting Or Hot-dip Galvanize
Shot Blasting Level: Sa 2.5 Service Life: 50 Years
Wall And Roof: Glass Wool Panel Columns And Beam: H Section Column&Beam
Highlight:

metal warehouse construction

,

metal storage buildings

,

Pre Engineered Portal Frame Warehouse

Pre Engineered Portal Frame Warehouse Multi Span Glass Wool Panel
Product Specifications
Attribute Value
Keywords Pre Engineered Portal Frame Warehouse
Features Multi Span Steel Structure Warehouse
Raw steel material Q235B, Q355B
Surface treatment Painting or Hot-dip Galvanize
Shot blasting level Sa 2.5
Service life 50 Years
Wall and Roof Glass wool panel
Columns and Beam H Section Column & Beam
Project Overview

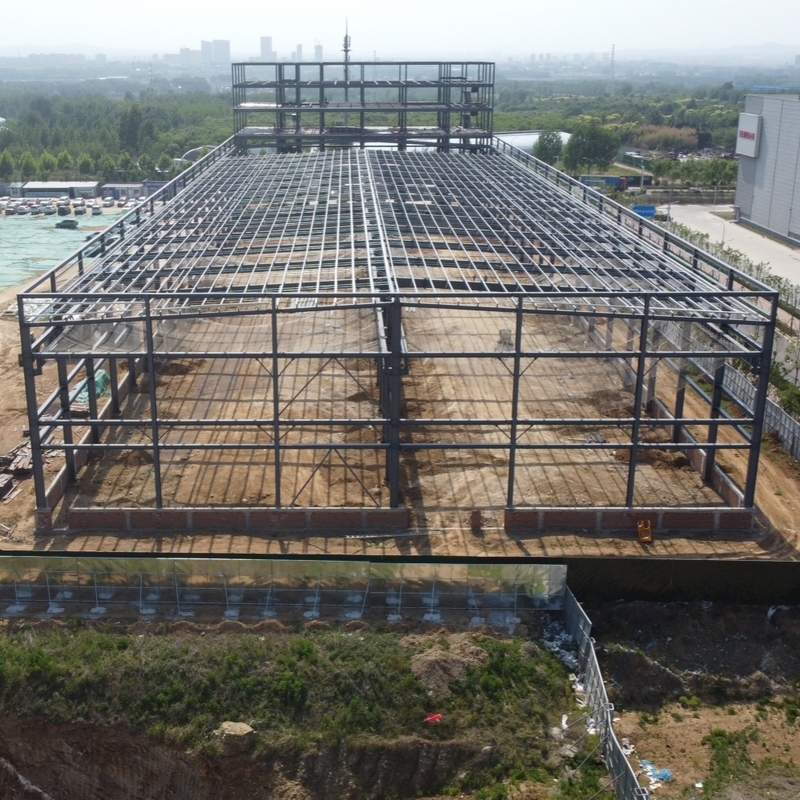

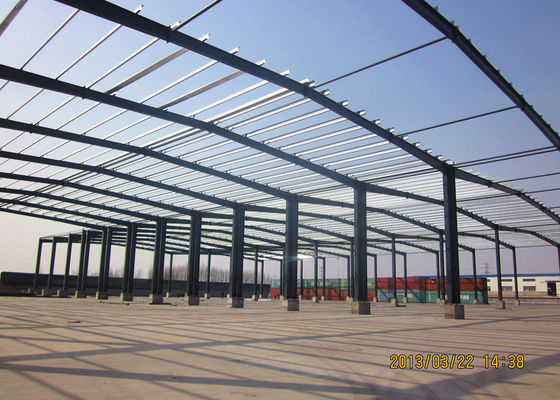

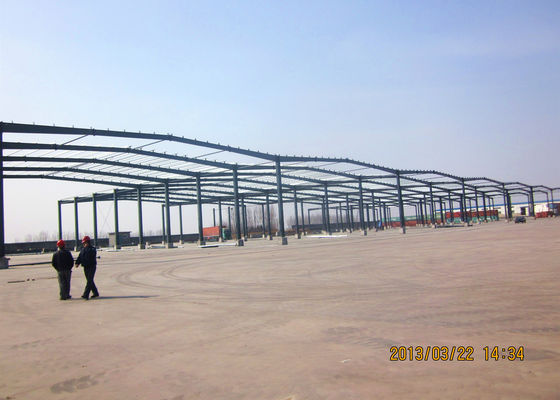

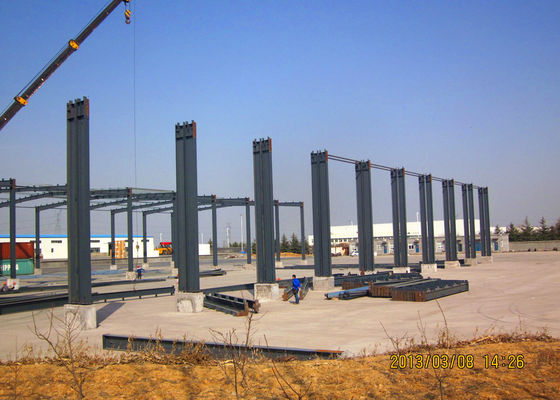

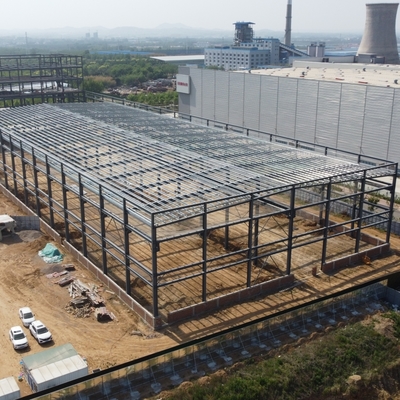

We constructed this multi-span pre-engineered portal frame warehouse for a shipping company. This light portal frame steel structure warehouse covers a construction area exceeding 20,000 square meters. Our comprehensive service included design, steel structure fabrication, roof & wall panel production, and complete installation within three months.
Our integrated approach combines design, production, and installation to deliver complete solutions for various steel structure buildings (single-deck, double-deck, multi-layer). As a certified steel structure engineering contractor with ISO9001 certification since 2010, we possess unique competitive advantages in the steel structure engineering market.
Technical Specifications
Main Steel Frame System
  • Main structure: H section steel Q355, alkyd painting (two primary coats, two finish coats)
  • Roof purlin: XZ160*60*20*2.5, galvanized
  • Wall purlin: XZ160*60*20*2.5, galvanized
  • Intensive bolt: Grade 10.9
  • Turn buckle bolt: M20+2, steel Q235, processing
  • Anchor bolt: M24, steel Q235, processing
  • Ordinary bolt: Galvanized bolt M20 & M12
  • Brace nut: Galvanized bolt M12
Bracing System
  • Cross brace: Φ20 round steel bar Q235, processed and painted (alkyd painting)
  • Angle brace: L50*5 angle steel Q235, processed and painted (alkyd painting)
  • Column bracing: Φ25 round steel bar Q235, processed and painted (alkyd painting)
  • Tie bar: Φ127*3 steel pipe Q235, processed and painted (alkyd painting)
  • Batter brace: Φ32*2.5, Φ12 round steel bar Q235, processed and painted (alkyd painting)

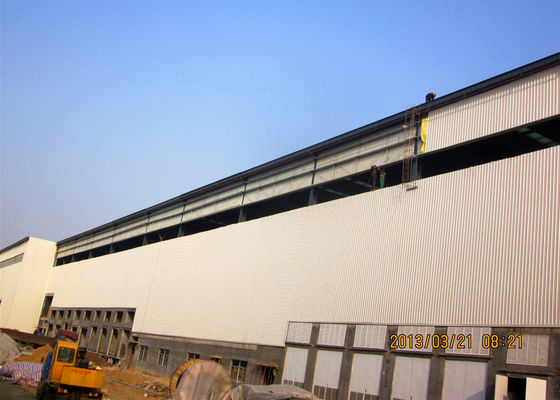

Wall & Roof System
  • Roof panel: Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU)
  • Wall panel: Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU)
  • Edge cover: 0.5mm color plate, angle Alu.
  • Fittings & accessories: Nails, glue etc.
  • Unpowered ventilator: Diameter Φ600, stainless steel
  • Sky lighting band: 1.2mm FRP, double layer
  • Sliding door: Sandwich panel door
Roof Drainage System
  • Gutter: 0.5mm color steel plate
  • Rainspout pipes: Φ110 PVC pipe
Design Process
For projects of this scale, we provide comprehensive design services including preliminary layout drawings, 3D Tekla models, and detailed installation drawings to ensure project success.
Pre Engineered Portal Frame Warehouse with Glass Wool Panels 0
Manufacturing Process
All steel components are precision fabricated in our factory under strict quality control measures.
Pre Engineered Portal Frame Warehouse with Glass Wool Panels 1
Packaging & Shipping
All structural components, panels, bolts, and accessories are carefully packed in standard ocean transportation packaging and loaded into 40'HQ containers.
Project Planning Information
Please provide the following details for accurate pricing and design:
  1. Location: _____country, area
  2. Size: length*width*height _____mm*_____mm*_____mm
  3. Wind load: _____kn/m2, _____km/h, _____m/s
  4. Snow load: _____kn/m2, _____mm
  5. Anti-earthquake: _____level
  6. Brickwall needed: If yes, 1.2m high or 1.5m high
  7. Thermal insulation: If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested
  8. Door quantity & size: _____units, _____(width)mm*_____(height)mm
  9. Window quantity & size: _____units, _____(width)mm*_____(height)mm
  10. Crane needed: If yes, _____units, max. lifting weight____tons; max. lifting height _____m
