Product Details:
|
Features: | Pre Engineered Metal Buildings | Application: | Prefab Agricultural Steel Buildings |
---|---|---|---|
Type: | Agricultural Steel Buildings Warehouse | Raw Steel Material: | Q235B, Q355B |
Surface Treatment: | Painting Or Hot-dip Galvanize | Wall And Roof: | Steel Cladding/Rock Wool/Glass Wool/EPS/PU Sandwich Panel |
Columns And Beam: | H Section Column&Beam | Installation: | Engineer Guidance On Site |
Highlight: | metal warehouse construction,metal storage buildings,Prefab Agricultural Steel Buildings |
Attribute | Value |
---|---|
Application | Prefab Agricultural Steel Buildings |
Features | Pre Engineered Metal Buildings |
Type | Agricultural Steel Buildings Warehouse |
Raw steel material | Q235B, Q355B |
Surface treatment | Painting or Hot-dip Galvanize |
Wall and Roof | Steel cladding/Rock wool/Glass wool/EPS/PU sandwich panel |
Columns and Beam | H Section Column & Beam |
Installation | Engineer guidance on site |

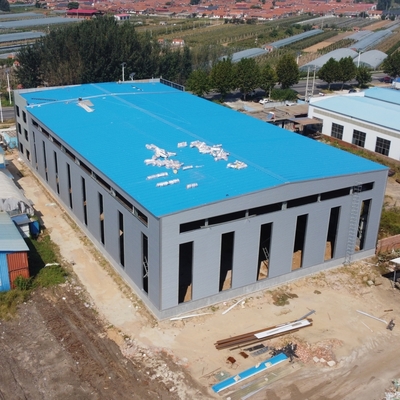

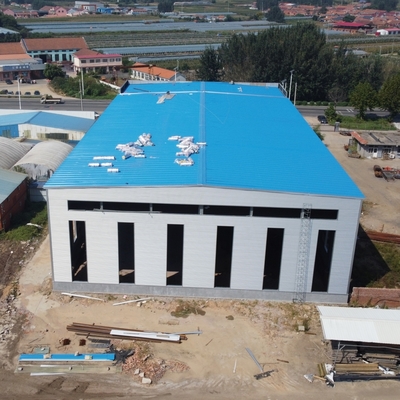

Our prefabricated agricultural steel buildings and pre-engineered metal warehouses are professionally designed, fabricated, and installed by Ruly Steel. These light steel structures are ideal for storing metal parts and can be customized to your exact specifications.
We can work from your existing drawings or develop designs based on your requirements. Our commitment is to deliver the best value - offering competitive pricing without compromising on quality.
Component | Specification |
---|---|
Steel Frame | H section steel | Q235/Q345 steel 8mm/10mm |
Welding | Automatic submerged arc welding |
Rust removal | Sand blasting |
Surface finish | Alkyd paint or galvanized |
Intensive bolt | M20, Grade 10.9 |
Supporting System | Angle brace: L50x4, Steel Q235, processed and painted |
Roof System | Purlin: C160*60*2.5, Steel Q235, galvanized and painted |
Wall System | Purlin: C160*60*2.5, Steel Q235, painted |
Our 35,000㎡ steel structure fabrication facility includes 20,000㎡ of workshop space equipped with:
All structural components, panels, bolts, and accessories are carefully packaged for ocean transportation and loaded into 40'HQ containers.
Please provide the following information for accurate pricing and design:
Item | Details Required |
---|---|
1 | Location (country, area) |
2 | Size: length*width*height (mm) |
3 | Wind load (max. wind speed) |
4 | Snow load (max. snow height) |
5 | Earthquake resistance level |
6 | Brick wall requirements (height if needed) |
7 | Thermal insulation specifications |
8 | Door quantity & dimensions |
9 | Window quantity & dimensions |
10 | Crane requirements (if needed) |
