Steel Structure Warehouse Q235B Q355B with 50-Year Lifespan

Steel Structure Warehouse Q235B Q355B with 50-Year Lifespan
Steel Structure Warehouse Q235B Q355B with 50-Year Lifespan
Steel Structure Warehouse Q235B Q355B with 50-Year Lifespan Steel Structure Warehouse Q235B Q355B with 50-Year Lifespan Steel Structure Warehouse Q235B Q355B with 50-Year Lifespan Steel Structure Warehouse Q235B Q355B with 50-Year Lifespan Steel Structure Warehouse Q235B Q355B with 50-Year Lifespan Steel Structure Warehouse Q235B Q355B with 50-Year Lifespan

Large Image :  Steel Structure Warehouse Q235B Q355B with 50-Year Lifespan

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, ,ISO, BV
Model Number: Ruly0016
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 20000 Square Meter Per Month
Contact Now

Steel Structure Warehouse Q235B Q355B with 50-Year Lifespan

Description
Raw Steel Material: Q235B, Q355B Surface Treatment: Painting Or Hot-dip Galvanize
Shot Blasting Level: Sa 2.5 Service Life: 50 Years
Wall And Roof: Aluminium Composite Panel Columns And Beam: H Section Column&Beam
Installation: Engineer Guidance On Site Application: Steel Structure Warehouse, Workshop
Highlight:

steel structure building

,

metal warehouse construction

,

Q235B Structural Steel Structure Warehouse

Structural Steel Structure Warehouse / Workshop Industrial Steel Construction
Product Specifications
Attribute Value
Raw steel material Q235B, Q355B
Surface treatment Painting or Hot-dip Galvanize
Shot blasting level Sa 2.5
Service life 50 Years
Wall and Roof Aluminium composite panel
Columns and Beam H Section Column & Beam
Installation Engineer guidance on site
Application Steel structure warehouse, workshop
Project Overview

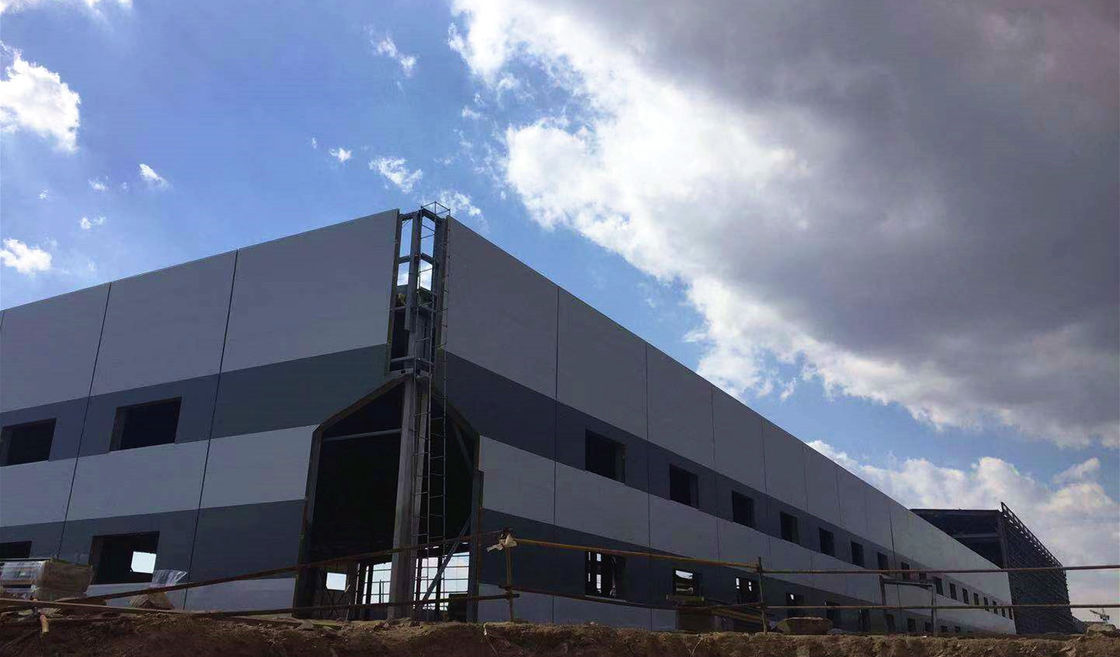

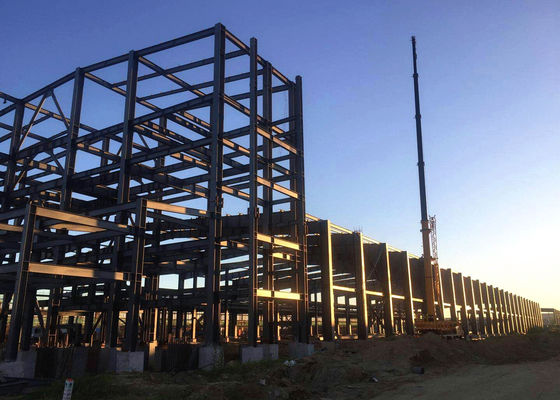

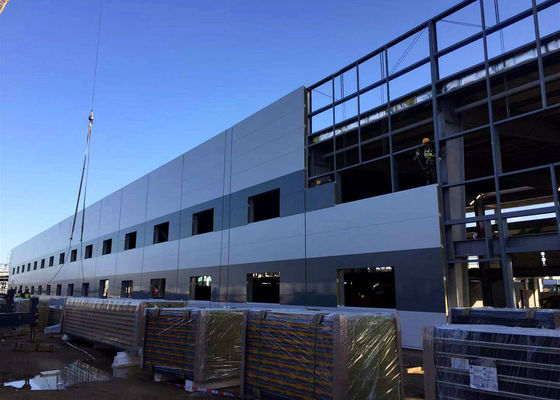

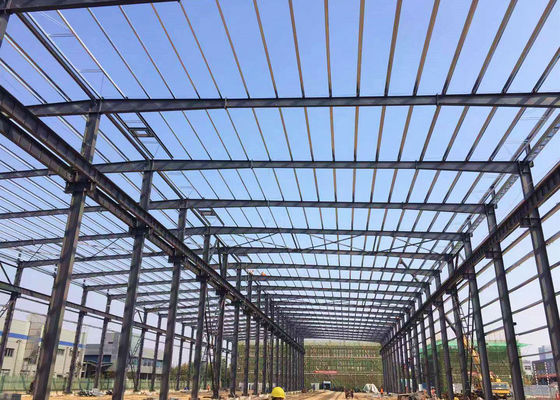

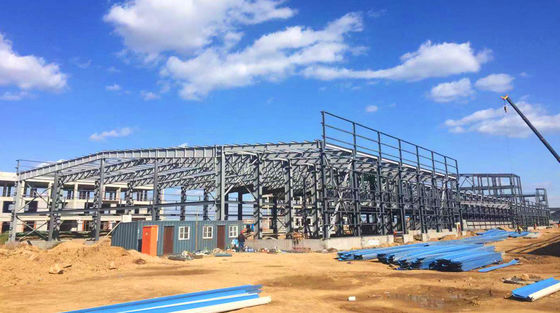

This integrated steel frame structure building covers more than 23,000 square meters, offering cost-effective construction, superior space utilization, and excellent structural stability. Our factory fabricated approximately 1,800 tons of steel structure within one month, with complete installation including roof and wall panels, windows, and doors accomplished in the same timeframe.

Structural Components
Main Steel Frame System
  • Main structure: H section steel Q355 with alkyd painting (two primary coats, two finish coats)
  • Roof purlin: XZ160*60*20*2.5, galvanized
  • Wall purlin: XZ160*60*20*2.5, galvanized
  • Intensive bolt: Grade 10.9
  • Turn buckle bolt: M20+2, steel Q235, processed
  • Anchor bolt: M24, steel Q235, processed
  • Ordinary bolts: Galvanized M20 and M12
  • Brace nut: Galvanized bolt M12
Bracing System
  • Cross brace: Φ20 round steel bar Q235, processed and painted
  • Angle brace: L50*5 angle steel Q235, processed and painted
  • Column bracing: Φ25 round steel bar Q235, processed and painted
  • Tie bar: Φ127*3 steel pipe Q235, processed and painted
  • Batter brace: Φ32*2.5, Φ12 round steel bar Q235, processed and painted
Wall & Roof System
  • Roof panel: Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU)
  • Wall panel: Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU)
  • Edge cover: 0.5mm color plate, angle Alu.
  • Fittings & accessories: Nails, glue etc.
  • Unpowered ventilator: Diameter Φ600, stainless steel
  • Sky lighting band: 1.2mm FRP, double layer
  • Sliding door: Sandwich panel door
Roof Drainage System
  • Gutter: 0.5mm color steel plate
  • Rainspout pipes: Φ110 PVC pipe
Design Process

Our comprehensive design package includes preliminary layout drawings, 3D Tekla models, and detailed installation drawings to ensure project success.

Steel Structure Warehouse Q235B Q355B with 50-Year Lifespan 0
Installation Services
  • We provide detailed shop drawings prior to installation
  • Our engineers provide on-site guidance throughout the installation process
Steel Structure Warehouse Q235B Q355B with 50-Year Lifespan 1
Packaging & Shipping

All structural components, panels, bolts, and accessories are securely packed in standard packages suitable for ocean transportation and loaded into 40'HQ containers.

Steel Structure Warehouse Q235B Q355B with 50-Year Lifespan 2
Project Requirements
1. Width __________ M
2. Length __________ M
3. Eave height __________ M
4. Local wind load/wind speed and snow load (if known)
5. Brick wall or concrete wall height (if any) __________ M
6. Ventilation: A. no B. Normal C. natural D. ventilator
7. Wall and roof: A. EPS sandwich panel B. PU panel C. rockwool panel D. steel sheet thickness: __________
8. Door: A. sandwich panel sliding door B. rolling door size: __________
9. Window: A. aluminium window B. PVC window size: __________
10. Lighting: A. skylight board B. thickness: __________
11. Crane: A. No B. Yes (quantity and capacity: __________)
