Product Details:
|
Features: | Prefab Steel Structure, Large Span, Multi-Floor | Raw Steel Material: | Q235B, Q355B, ASTM A36 |
---|---|---|---|
Application: | Steel Workshop, Steel Structure Platform, Structural Roofing, Frame Part | Surface Treatment: | Painting Or Hot-DIP Galvanized |
Service Life: | 50 Years | Wall And Roof: | Steel Cladding Sheet,Sandwich Panel |
Columns & Beams: | H-Section Steel | Shot Blasting Level: | SA 2.5 |
Certification: | CE, AISC, SGS, BV, ISO, GB | Installation: | Engineer Guidance On Site |
Drawing: | CAD, TEKLA, 3D Model, PKPM, BIM | HS Code: | 9406900090 |
Transport Package: | Standard Export Package Or Customer′s Requirement | Production Capacity: | 30000ton/Year |
Connection Form: | Bolt Connection | Parapet Wall: | As Requested |
Highlight: | High Wind Resistance Steel Frame Warehouse,Customized Construction Steel Frame Warehouse,Structural Stability Steel Frame Warehouse |
Product Features
1. The weight capacity of steel structure is lighter than traditional building materials.
2. Steel structure has high strength and good toughness, and the material is uniform, these features make it have excellent seismic performance.
3. Factory prefabrication and on-site installation is the leading direction of steel structure plant construction, which has faster construction speed and lower cost compared with reinforced concrete structure.
4. The construction of steel structure plant will not cause pollution to the environment, and it can also save resources. Because the steel structure materials can be recycled and reused, the waste of resources can be reduced.
Steel Frame | H section steel | Q235/Q355 steel 8mm/10mm |
Welding | Automatic submerged arc welding | |
Rust removal | Sand blasting | |
Surface finish | Alkyd paint or galvanized | |
Intensive bolt | M20,Grade 10.9 | |
Supporting System | Angle brace | L50x4,Steel Q235, processed and painted |
Horizontal brace | Φ20, Steel Q235, processed and painted | |
Column brace | Φ20, Steel Q235, processed and painted | |
Tie rod | Φ89*3, Steel Q235, processed and painted | |
Ordinary bolt | M12 Galvanized bolt | |
Roof | Purlin | C160*60*2.5,Steel Q235, galvanized and painted |
Roof panel | Sandwich panel or corrugated steel sheet | |
Sunlight | 1mm thick PVC | |
Accessories | Glass cement, self-tapping screws, etc. | |
Edge cover | 0.4mm steel sheet profile trimming | |
Gutter | 0.4mm thick sheet steel profile or galvanized sheet | |
Down pipe | Φ110PVC | |
Walls | Purlin | C160*60*2.5,Steel Q235, painted |
Wall | Sandwich panel or corrugated steel plate | |
Accessories | Glass cement, self-tapping screws, etc. | |
Edge cover | 0.4mm steel sheet profile trimming | |
Ventilation | Powered Ventilation ball | |
Doors & windows | Rolling door/sliding door PVC/alu/steel/window |

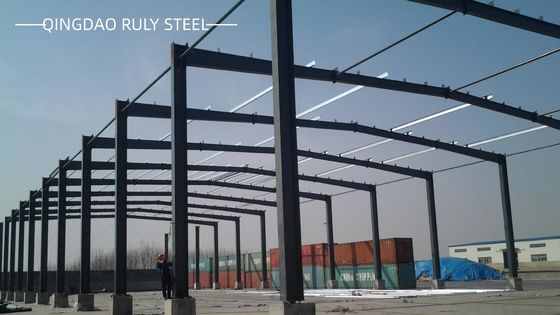

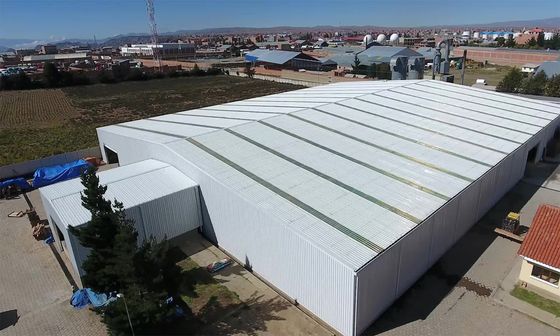

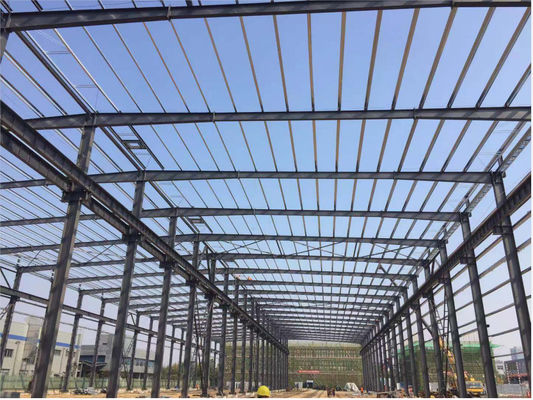

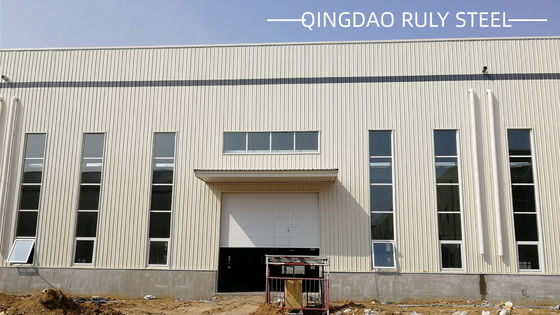

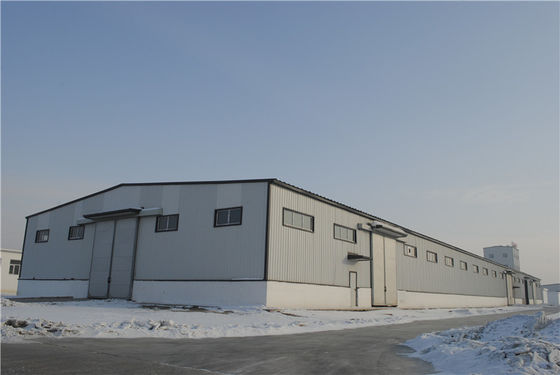

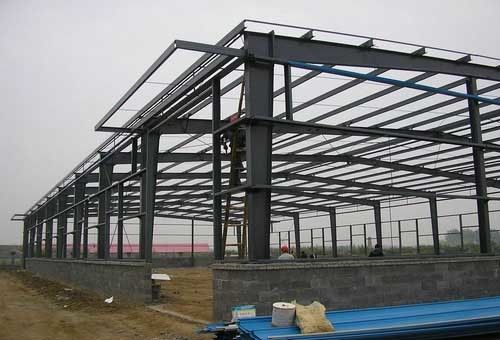

Project Show
Project Usage: High-End Intelligent Hydraulic Machine Tool Equipment
Size of the plant: Total Area 9,702 Sqm
Steel Structure Weight: 630Ton
Project Usage: Logistics Steel Warehouse For High-Speed Rail Station
Size of the plant: Total Area 24,570 Sqm
Steel Structure Weight: 985Ton
Project Usage: Textile Manufacturing Machine Machine Tool Equipment
Size of the plant: Total Area 6,615 Sqm
Steel Structure Weight: 750Ton
About our company and certifications
Qingdao Ruly Steel Engineering Co., Ltd is a professional steel structure fabrication and engineering company, located in Qingdao, China, which integrates steel structure design, research and development, manufacturing and installation. The project types include prefabricated steel workshop, warehouse, logistics park and other light steel structure of the civil building system, high-rise residential buildings, exhibition center, stadium, airport station and bridge, Power plant, chemical plant, oil and gas, mining,etc.
Our company's steel structure processing plant now covers an area of 35,000 square meters, plant20,000 square meters. More than 100 employees. The monthly production capacity for steel structure is more than 1500 Tons. Our steel structure components include light/heavy H steel ,BOX steel,Cross shaped section steel, large diameter submerged arc straight-weld pipe,steel model structure, C/Z purlin and machining fitting components . There are three subordinate steel structure companies, which have passed and strictly implemented ISO9001:2008 quality management system, ISO14001:2004 environmental system, GB/T28001:2001 occupational health system, and obtained ASTM certification in the United States, and international SGS product certification. Obtained the right of export, design, installation and consultation from the ministry of foreign trade and economic cooperation.
Quality first, Technology ahead ,Innovation continually is our entrepreneurial concept. We build strong relationships of trust with our clients, truly understanding their needs and bringing them the most reasonable solutions.
Our Service
1.Structural steel fabrication, painting , galvanizing , pre-assembly
2.Designing, fabrication and installation for Prefabricated steel structure building.
3.Deepen or design the fabrication drawing or shop drawing based on your architectural drawing and construction drawing
4.We offer reasonable advices for usage, maintenance and technically improve.
Packaging&Shipping
All the structure components, panels,bolts and sort of accessories will be well packed with standard package suitable ocean transportation and loaded into 40'HQ.
All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers,who will prevent the goods to be damaged.
FAQ
1. Are you a manufacture factory or trading company?
We are manufacture factory. And you are welcomed to visit us at any time. The quality control flow and sales team will show you our professionalism. Also you will can get best and most competitive price after visiting us.
2. Is your price competitive compared with other companies?
Our business objectives are to give the best price with same quality and best quality with the same price. We will do everything we can to reduce your cost and guarantee you get the best product that you paid for.
3. Can you send engineers or whole team to install my project?
We will give detailed installation drawings for free. We can send engineers as installation director or a team upon request.
4. Do you accept container loading inspection?
You are welcomed to send an inspector, not only for the container loading, but any time during the production time.
5. Do you offer designing service for us?
Yes, we could design full solution drawings as your requirements. By using AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (Xsteel) and etc. we can design complex industrial building like office mansion, super marker, auto dealer shop, shipping mall, 5 star hotel.
6. What is the delivery time?
Delivery time depends on order quantities. In general the delivery time to nearest seaport in China will be 40 days after receiving deposit.
7. How can you get a quotation for your projects?
You can contact us by email, phone, WhatsApp, Viber and so on 24*7 and you will get reply within 8 hours.
Why choose us?
1. Professional design team, we could design the drawing as your requirement or calculate the steel quantity based on your drawing.
2. Skilled fabrication team and advanced equipment. We make the independent production schedule to each project.
3. One-stop service: We have completed lots such kinds of projects, we could provide the integrated proposal for your project.
4. Professional QC team will guarantee that we will provide the production and service as your request.
5. After sales service: If it has any questions that need us to do in your process of using, such as the maintain of outside insulation and steel components, just tell us , we will try to provide the service as well as we can.
How to get a quotation
1 | Location (where will it be built?) | _____country, area |
2 | Size: length*width*height | _____mm*_____mm*_____mm |
3 | wind load (max. wind speed) | _____kn/m2, _____km/h, _____m/s |
4 | snow load (max. snow height) | _____kn/m2, _____mm |
5 | anti-earthquake | _____level |
6 | brickwall needed or not | If yes, 1.2m high or 1.5m high |
7 | thermal insulation | If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; . if not, the metal steel sheets will be ok. The cost of the latter will be much lower than that of the former |
8 | door quantity & size | _____units, _____(width)mm*_____(height)mm |
9 | window quanity & size | _____units, _____(width)mm*_____(height)mm |
10 | crane needed or not | If yes, _____units, max. lifting weight____tons; max. lifting height _____m |
