Product Details:
|
| Features: | Prefab Steel Structure, Large Span, Multi-Floor | Raw Steel Material: | Q235B, Q355B, ASTM A36 |
|---|---|---|---|
| Application: | Steel Workshop, Steel Structure Platform, Structural Roofing, Frame Part | Surface Treatment: | Painting Or Hot-DIP Galvanized |
| Service Life: | 50 Years | Wall And Roof: | Steel Cladding Sheet,Sandwich Panel |
| Columns & Beams: | H-Section Steel | Shot Blasting Level: | SA 2.5 |
| Certification: | CE, AISC, SGS, BV, ISO, GB | Installation: | Engineer Guidance On Site |
| Drawing: | CAD, TEKLA, 3D Model, PKPM, BIM | HS Code: | 9406900090 |
| Transport Package: | Standard Export Package Or Customer′s Requirement | Production Capacity: | 30000ton/Year |
| Connection Form: | Bolt Connection |

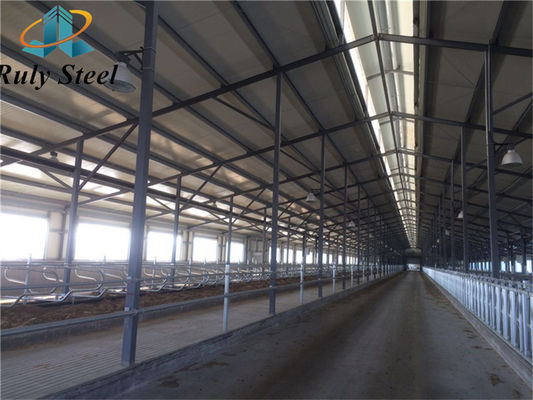

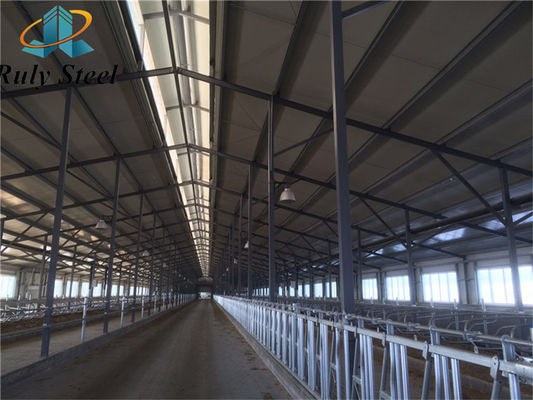

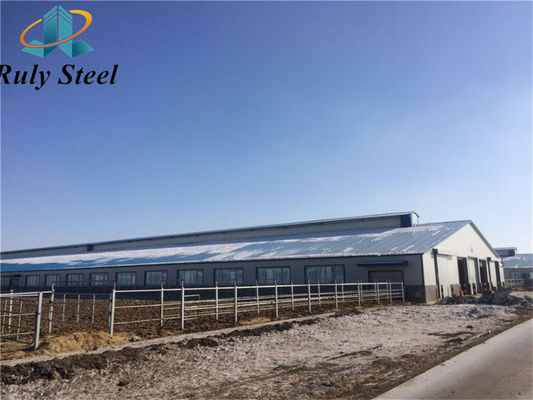

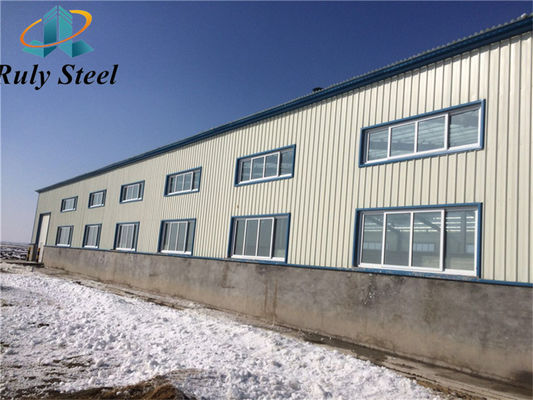

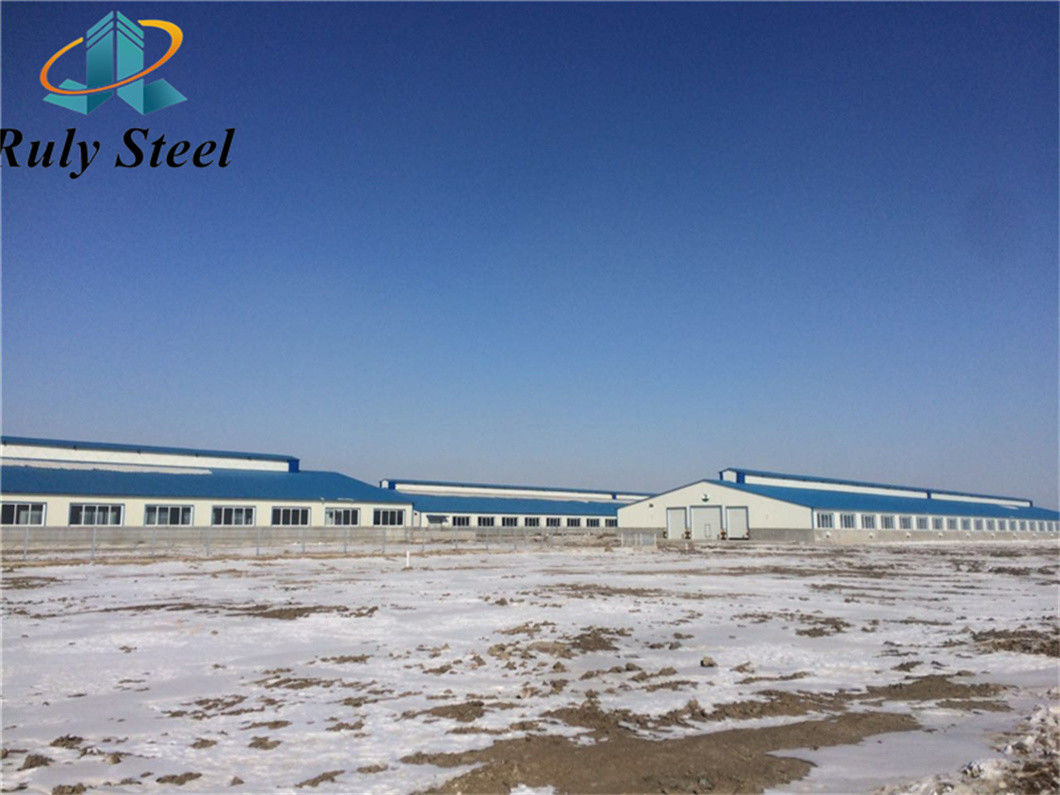

7000㎡ Steel Structure Cowshed Prefabricated Steel Structure Farm Customized By German Customers
This steel strucre building is used as a Cowshed . The construction floor area is about 7000 square meters. We provide wleded steel beam&column, crane, steel cladding sheet, purlin, window and doors and other accessory.
We are a professional steel structure fabrication and construction company for light and heavy steel structure project. Our service include design, fabrication for all the steel structure components and insullation panel, installation on site.
| Items | Specification | |
| Main steel frame | Colume | Q235,Q355 welded H section steel |
| Beam | Q235,Q355 welded H section steel | |
|
Secondary frame |
Purlin | Q235 C and Z purlin |
| Knee brace | Q235 angle steel | |
| Tie rod | Q235 circular steel pipe | |
| Brace | A235 round bar | |
| Vertical and horizontal support | Q235 angle steel, round bar or steel pipe | |
| Maintenance system | Roof panel | EPS sandwich panel/glass fiber sandwich panel/rock wool sandwich panel/Pu sandwich panel/steel sheet |
| Wall panel | Sandwich panel/corrugated steel sheet | |
|
Accessories |
Window | Aluminium alloy window/PVC window/sandwich panel window |
| Door | Sliding sandwich panel door/rolling metal door/personal door | |
| Rainspout | PVC | |
| Live load on roof | In 120kg/sqm(color steel panel surrounded) | |
| Wind resistance grade | 12 grades | |
| Earthquake-resistance | 8 grades | |
| Structure usage | Up to 50 years | |
| Finishing options | Vast array of colors and textures available | |
| Paint options | Alkyd paiting, two primary paiting, two finish paiting(Gray paint, red paint, white paint, epoxy zinc etc.) or galvanized | |
Qingdao Ruly Steel Engineering Co., Ltd is a professional steel structure design, research, fabrication and construction company, located in Qingdao, China. Our company's steel structure processing plant now covers an area of 35, 000 square meters, plant20, 000 square meters. More than 100 employees. The monthly production capacity for steel structure is more than 2000 Tons.
We could contract the projects such as prefabricated steel structure warehouse, workshop, storage sheds, garage, hangar, chicken shed, car parking, showroom, office buildings, gym, dormitory building, high rise steel residence buildings, oli&gas project, power station, infrastructure buildings, etc.
At present, Our products have been exported to Southeast Asia, South America, Middle East and Africa, Australia, etc. In order to serve better for the exported project, we get certification of AWS D1.1, CE(EN 1090-1: 2009+A1: 2011), ISO 14001, ISO9001, ISO45001, AS/NZS 1554, SGS and BV Certification.
We provide one-stop service for steel structure project, just tell us your requirement, and we will give you what you need.
All the structure components, panels,bolts and sort of accessories will bewell packed with standard package suitable ocean transportation and loaded into 40'HQ.
All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers,who will prevent the goods to be damaged.
1. Professional design team, we could design the drawing as your requirement or calculate the steel quantity based on your drawing.
2. Skilled fabrication team and advanced equipment. We make the independent production schedule to each project.
3. One-stop service: We have completed lots such kinds of projects, we could provide the integrated proposal for your project.
4. Professional QC team will guarantee that we will provide the production and service as your request.
5. After sales service: If it has any questions that need us to do in your process of using, such as the maintain of outside insulation and steel components, just tell us , we will try to provide the service as well as we can.
The following questions we need to know before offering the quotation. Just feel free to fill in what you know.
| 1 | Location (where will it be built?) | _____country, area |
| 2 | Size: length*width*height | _____mm*_____mm*_____mm |
| 3 | wind load (max. wind speed) | _____kn/m2, _____km/h, _____m/s |
| 4 | snow load (max. snow height) | _____kn/m2, _____mm |
| 5 | anti-earthquake | _____level |
| 6 | brickwall needed or not | If yes, 1.2m high or 1.5m high |
| 7 | thermal insulation | If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; . if not, the metal steel sheets will be ok. The cost of the latter will be much lower than that of the former |
| 8 | door quantity & size | _____units, _____(width)mm*_____(height)mm |
| 9 | window quanity & size | _____units, _____(width)mm*_____(height)mm |
| 10 | crane needed or not | If yes, _____units, max. lifting weight____tons; max. lifting height _____m |
