Cement Warehouse Large Space Prefabricated Steel Structure Building
Product Attributes
| Attribute |
Value |
| Durability |
High |
| Material |
Steel |
| Service Life |
50 Years |
| Shot Blasting Level |
SA 2.5 |
| Hs Code |
9406900090 |
| Usage |
Construction |
| Strength |
Strong |
| Carbon Structural Steel |
Q355B |
| Type |
Fabrication |
| Corrosion Resistance |
Yes |
| Wall And Roof |
Steel Cladding Sheet, Sandwich Panel |
| Efficiency |
Fast |
| Weather Resistance |
Yes |
| Maintenance |
Low |
| Installation |
Easy |
| Shape |
H Beam, H Columns |
| Transport Package |
Standard Export Package or Customer′s Requirement |
| Features |
Prefab Steel Structure, Large Span, Multi-Floor |
| Purlin |
/Z Shape Steel Channel,C/Z Galvanized Steel(Q235) |
| Door |
Sliding Door,PVC door/Steel door/Color steel door/Sandwich panel door/Rooler door,Sliding door or flat open or shutter door |
| Window |
Aluminum Alloy Window,PVC or Aluminum Alloy,Glass window/PVC window/Alumiun window,Sandwich Panel |
Product Description
Our 30,000 square meter steel structure warehouse offers a large storage space built with durable steel construction. This prefabricated solution provides numerous advantages for industrial and commercial applications.
Key Advantages
- High strength and durability to withstand heavy loads and cargo
- Fast construction time compared to traditional building methods
- Flexible design options to meet specific storage requirements
- Modular design for easy disassembly, transportation, and cost savings
- Sustainable construction using recyclable steel materials
- Reduced environmental impact through efficient construction processes
Multi-story Steel Structure Applications
Our multi-story steel structures are ideal for various commercial and industrial applications, offering superior strength, durability, and design flexibility.
- Exceptional load-bearing capacity for taller buildings with fewer support columns
- High resistance to natural disasters including earthquakes and hurricanes
- Durable construction that withstands harsh weather, corrosion, and fire
- Customizable designs to meet specific functional and aesthetic requirements
- Ideal for commercial buildings, shopping centers, hotels, and office complexes
Our Company and Factory
Our 35,000 square meter factory features modern facilities and two professional production lines, delivering high-quality steel structure products with efficient production capacity and excellent quality management.
- Monthly production capacity of 1,500 tons of steel structure products
- Certified quality management systems (ISO 9001, ISO 14001, OHSAS 18001)
- Experience with complex projects including industrial buildings and bridges
- Professional engineering team for comprehensive design solutions
- Long-term customer relationships built on trust and quality service

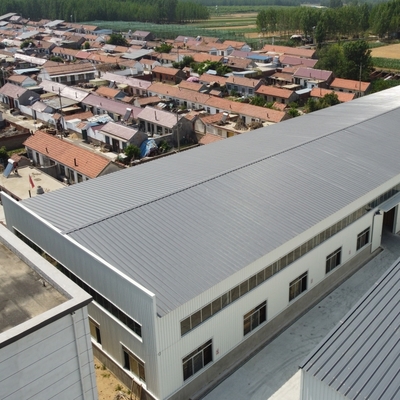

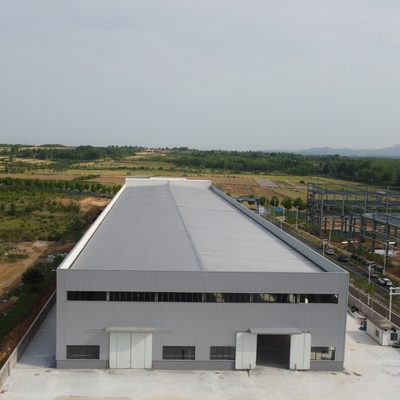

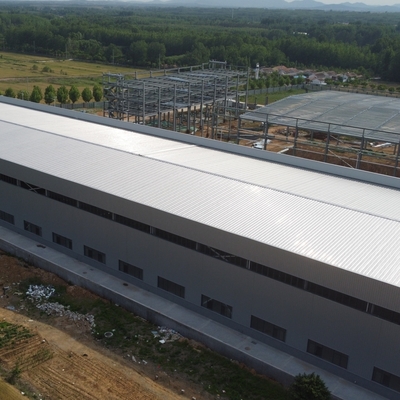

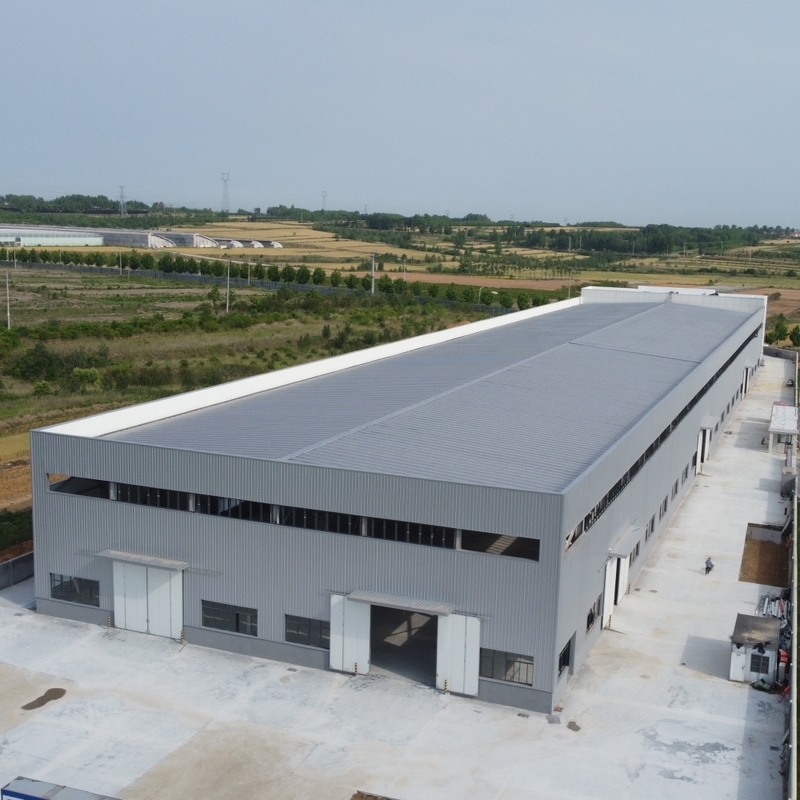

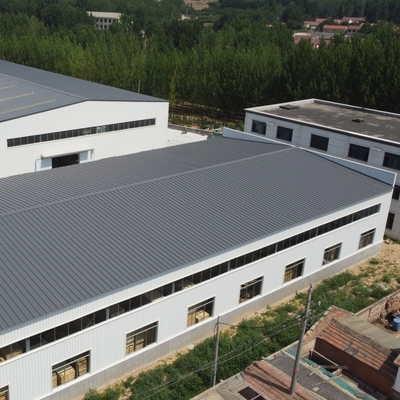

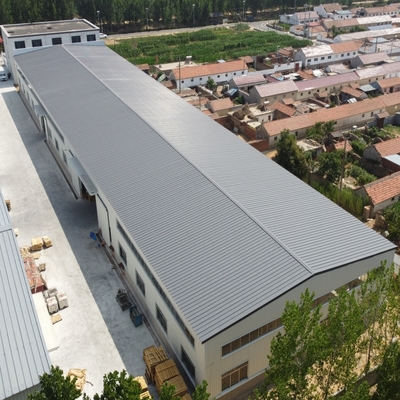

Project Showcase
Africa Projects:
Asia Projects:
Installation Services
We provide comprehensive installation support to ensure successful project completion:
- Detailed shop drawings provided before installation
- On-site training available at our factory
- Option for sample building assembly demonstration
Quality Control
Overall Planning
Packing and Loading
All structural components, panels, bolts, and accessories are packed with standard ocean transportation packaging and loaded into 40'HQ or 40'OT containers. Our skilled workers use cranes and forklifts to ensure safe loading without damage.
Why Choose Us
- Professional design team for customized solutions
- Skilled fabrication team with advanced equipment
- One-stop service for complete project solutions
- Strict quality control processes
- Comprehensive after-sales service and support
How to Get a Quote
Please provide the following information for an accurate quotation:
| Question |
Your Information |
| Location (where will it be built?) |
_____country, area |
| Size: length*width*height |
_____mm*_____mm*_____mm |
| Wind load (max. wind speed) |
_____kn/m2, _____km/h, _____m/s |
| Snow load (max. snow height) |
_____kn/m2, _____mm |
| Anti-earthquake |
_____level |
| Brickwall needed or not |
If yes, 1.2m high or 1.5m high |
| Thermal insulation |
If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; if not, the metal steel sheets will be ok |
| Door quantity & size |
_____units, _____(width)mm*_____(height)mm |
| Window quantity & size |
_____units, _____(width)mm*_____(height)mm |
| Crane needed or not |
If yes, _____units, max. lifting weight____tons; max. lifting height _____m |
Main Parts and Technical Parameters
Main Steel Frame System
| Component |
Specification |
| Main structure |
H section steel Q345, alkyd painting, two primary painting, two finish painting |
| Roof purlin |
XZ160*60*20*2.5, galvanized |
| Wall purlin |
XZ160*60*20*2.5, galvanized |
| Intensive bolt |
Grade 10.9 |
| Turn buckle bolt |
M20+2, steel Q235, processing |
| Anchor bolt |
M24, steel Q235, processing |
| Ordinary bolt |
Galvanized bolt M20 |
| Ordinary bolt |
Galvanized bolt M12 |
| Brace nut |
Galvanized bolt M12 |
Bracing System
| Component |
Specification |
| Cross brace |
Φ20 round steel bar Q235, process and painted (alkyd painting) |
| Angle brace |
L50*5 angle steel Q235, process and painted (alkyd painting) |
| Column bracing |
Φ25 round steel bar Q235, process and painted (alkyd painting) |
| Tie bar |
Φ127*3 steel pipe Q235, process and painted (alkyd painting) |
| Batter brace |
Φ32*2.5, Φ12 round steel bar Q235, process and painted (alkyd painting) |
Wall & Roof System
| Component |
Specification |
| Roof panel |
Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU) |
| Wall panel |
Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU) |
| Edge cover |
0.5mm color plate, angle Alu |
| Fittings & accessories |
Nails, glue etc |
| Unpowered ventilator |
Diameter Φ600, stainless steel |
| Sky lighting band |
1.2mm FRP, double layer |
| Sliding door |
sandwich panel door |
Roof Drainage System
| Component |
Specification |
| Gutter |
0.5mm color steel plate |
| Rainspout pipes |
Φ110 PVC pipe |
Frequently Asked Questions
1. Are you a manufacture factory or trading company?
We are manufacture factory. And you are welcomed to visit us at any time. The quality control flow and sales team will show you our professionalism. Also you will can get best and most competitive price after visiting us.
2. Is your price competitive compared with other companies?
Our business objectives are to give the best price with same quality and best quality with the same price. We will do everything we can to reduce your cost and guarantee you get the best product that you paid for.
3. Can you send engineers or whole team to install my project?
We will give detailed installation drawings for free. We can send engineers as installation director or a team upon request.
4. Do you accept container loading inspection?
You are welcomed to send an inspector, not only for the container loading, but any time during the production time.
5. Do you offer designing service for us?
Yes, we could design full solution drawings as your requirements. By using AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (Xsteel) and etc. we can design complex industrial building like office mansion, super marker, auto dealer shop, shipping mall, 5 star hotel.
6. What is the delivery time?
Delivery time depends on order quantities. In general the delivery time to nearest seaport in China will be 40 days after receiving deposit.
7. How can you get a quotation for your projects?
You can contact us by email, phone, WhatsApp, Viber and so on 24*7 and you will get reply within 8 hours.
