CE Professional Steel Structure Production Company Construction Workshop
Product Specifications
| Attribute |
Value |
| Raw Steel Material |
Q235B, Q355B, ASTM A36 |
| Application |
Steel Workshop, Steel Structure Platform, Structural Roofing, Frame Part |
| Surface Treatment |
Painting or Hot-DIP Galvanized |
| Service Life |
50 Years |
| Wall and Roof |
Steel cladding sheet, Sandwich Panel |
| Columns & Beams |
H-Section Steel |
| Shot Blasting Level |
SA 2.5 |
| Certification |
CE, AISC, SGS, BV, ISO, GB |
| Installation |
Engineer Guidance on Site |
| Drawing |
CAD, TEKLA, 3D Model, PKPM, BIM |
| HS Code |
9406900090 |
| Transport Package |
Standard Export Package or Customer's Requirement |
| Production Capacity |
30000ton/Year |
| Features |
Prefab Steel Structure, Large Span, Multi-Floor |
| Connection Form |
Bolt Connection |
High-Strength and Flexible Steel Structure Fabrication
Our steel structures combine aesthetic appeal with functional performance for construction projects requiring durability and design flexibility.
Key Customer Requirements
- Strength and durability: High-strength steel structures capable of withstanding environmental conditions and natural disasters, ensuring safety and long-term lifespan.
- Aesthetics and flexibility: Modern, appealing designs with customizable features to accommodate various project requirements.
- Sustainability: Environmentally friendly solutions meeting green building standards with energy efficiency and reduced carbon emissions.
- Cost-effectiveness: Economical solutions with rapid construction capabilities to meet project timelines and market demands.
Material Specifications
| Component |
Material |
| Main Steel Frame (Column) |
Q235, Q355 Welded H Section Steel |
| Main Steel Frame (Beam) |
Q235, Q355 Welded H Section Steel |
| Secondary Frame (Purlin) |
Q235 C and Z purlin |
| Knee Bracing |
Q235 Angle Steel |
| Tie Bar |
Q235 Circular Steel Pipe |
| Bracing |
Q235 Round Bar |
| Column and Horizontal Bracing |
Q235 Angle Steel, Round Bar or Steel Pipe |
| Roof Panel |
EPS Sandwich Panel / Fiber Glass Sandwich Panel / Rock Wool Sandwich Panel / PU Sandwich Panel / Steel Sheet |
| Wall Panel |
Sandwich Panel / Corrugated Steel Sheet |

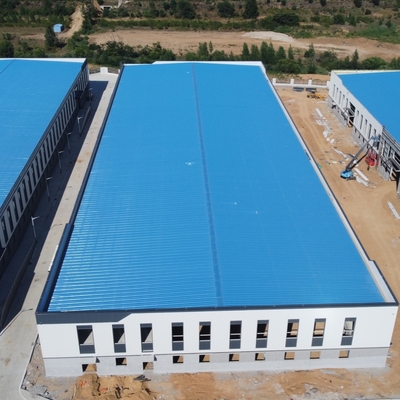

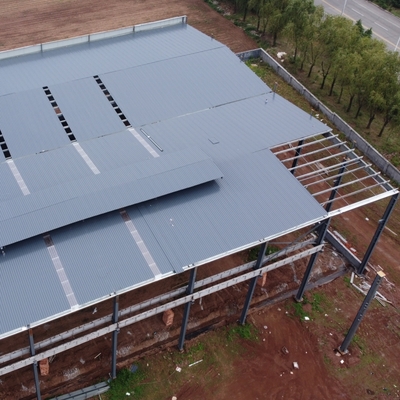

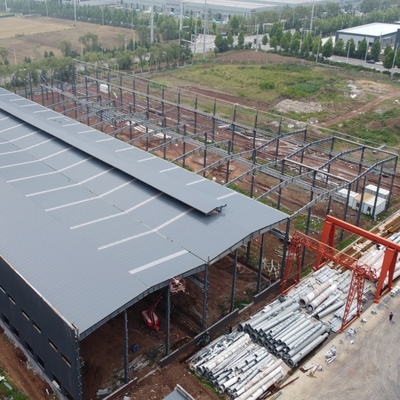

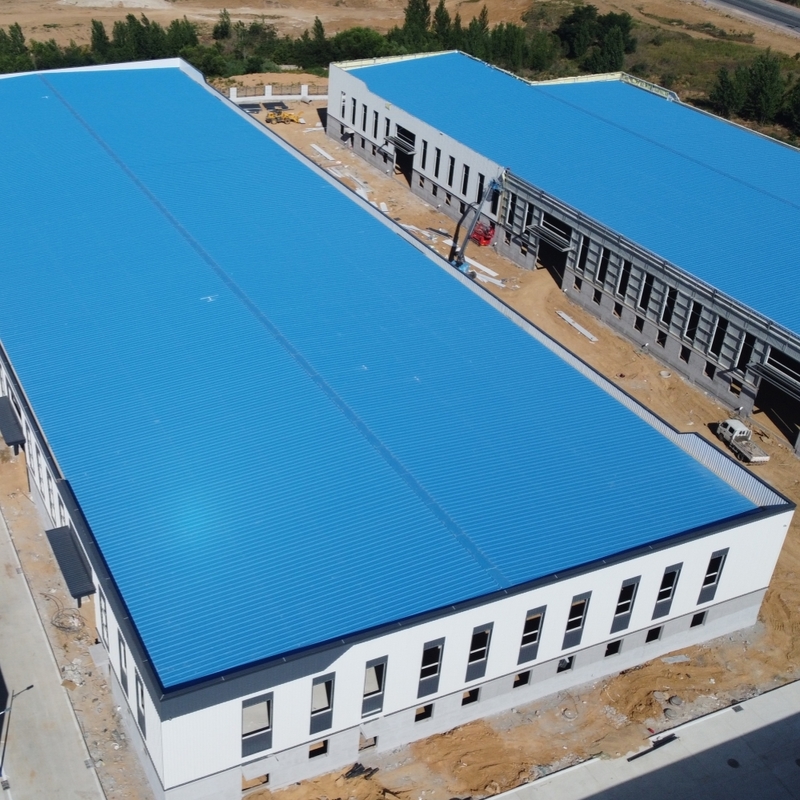

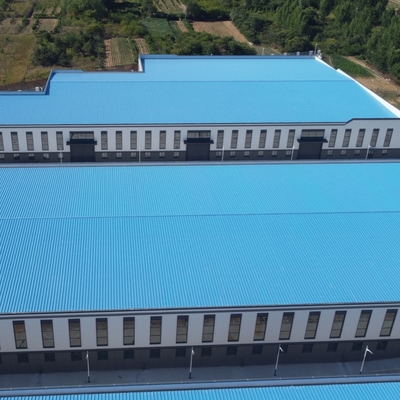

Project Showcase
High-End Intelligent Hydraulic Machine Tool Equipment
Size: Total Area 9,702 Sqm
Steel Structure Weight: 630Ton
Logistics Steel Warehouse For High-Speed Rail Station
Size: Total Area 24,570 Sqm
Steel Structure Weight: 985Ton
Textile Manufacturing Machine Tool Equipment
Size: Total Area 6,615 Sqm
Steel Structure Weight: 750Ton
Our Company
Qingdao Ruly Steel Engineering Co., Ltd is a professional steel structure fabrication and engineering company located in Qingdao, China. We specialize in steel structure design, research and development, manufacturing, and installation for various projects including:
- Prefabricated steel workshops and warehouses
- Logistics parks and civil building systems
- High-rise residential buildings
- Exhibition centers, stadiums, and airport stations
- Bridges, power plants, and chemical plants
- Oil, gas, and mining facilities
Our 35,000 square meter facility includes a 20,000 square meter processing plant with over 100 employees and a monthly production capacity exceeding 1500 tons. We manufacture various steel components including light/heavy H steel, BOX steel, cross-shaped section steel, large diameter submerged arc straight-weld pipe, and C/Z purlins.
We maintain ISO9001:2008 quality management, ISO14001:2004 environmental system, and GB/T28001:2001 occupational health system certifications, along with ASTM and SGS product certifications.
Our Certifications
Our Services
- Structural steel fabrication, painting, galvanizing, and pre-assembly
- Design, fabrication, and installation of prefabricated steel structures
- Detailed fabrication drawings based on your architectural plans
- Technical advice for usage, maintenance, and improvements
Quality Control
Raw Material Quality Control
- Thickness tolerance <0.25mm
- Yield and tension strength testing in-house
- Third party inspection certificates
- Traceable mill certificates
Structural Steel Fabrication Quality Control
- 100% testing dimension tolerance <1mm
- 20% sample welding line ultrasonic testing
- 20% magnetic powder testing
- Third-party inspection assistance
Surface Treatment Quality Control
- Shot blasting grade Sa. 2.5
- Paint primer within 5 hours after shot blasting
- Holiday-free coatings
- Dry Film Thickness (DFT) >75UM
Packing and Transport
All structure components, panels, bolts, and accessories are packed in standard export packages suitable for ocean transportation, typically loaded into 40'HQ containers. Our skilled workers use cranes and forklifts to load products carefully to prevent damage.
Component Examples
Frequently Asked Questions
Q: Are you a manufacturer or trading company?
A: We are a manufacturer and welcome visits to our facility. Our quality control processes and sales team demonstrate our professionalism, and visiting helps ensure you receive the most competitive pricing.
Q: How does your pricing compare to competitors?
A: We strive to offer the best price for equivalent quality and the best quality for equivalent prices, working to reduce your costs while guaranteeing product quality.
Q: Can you provide installation support?
A: We provide detailed installation drawings for free and can send engineers or a full installation team upon request.
Q: Do you accept inspection during production?
A: We welcome inspectors at any stage of production, including container loading.
Q: Do you offer design services?
A: Yes, we provide full solution drawings using AutoCAD, PKPM, MTS, 3D3S, Tarch, and Tekla Structures for complex industrial buildings.
Q: What is your typical delivery time?
A: Delivery time depends on order quantities, typically 40 days to the nearest Chinese seaport after receiving deposit.
Q: How can I request a quotation?
A: Contact us by email, phone, WhatsApp, or Viber - we respond within 8 hours.
Why Choose Us?
- Professional design team capable of custom drawings or quantity calculations
- Skilled fabrication team with advanced equipment and project-specific production schedules
- One-stop service with integrated project proposals
- Dedicated QC team ensuring products meet specifications
- Comprehensive after-sales service for maintenance and component support
