Product Details:
|
| Features: | Light Steel Structure | Application: | Steel Structure Machinery Industrial Park |
|---|---|---|---|
| Type: | Steel Structure Warehouse | Raw Steel Material: | Q235B, Q355B |
| Surface Treatment: | Painting | Service Life: | 50 Years |
| Wall And Roof: | Steel Cladding Sheet | Working Scope: | Design,Fabrication, Installation |
| High Light: | Q355 Steel Structure Warehouse,10mm Prefabricated Steel Structure Warehouse,Q235B Steel Structure Industrial Park |
||

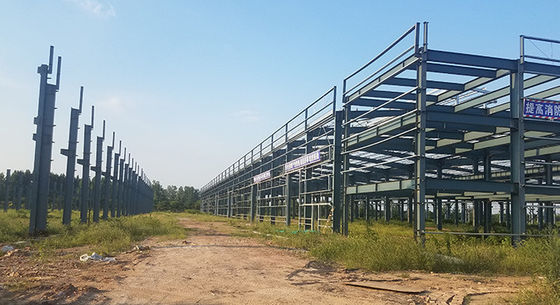

Prefabricated Steel Structure Warehouse/Steel Structure Machinery Industrial Park
This is a kind of building used in machinery factory industrial park. This steel structure is welded from high-strength bolted H-shaped steel columns and beams. Glass wool sandwich panels are used as roof and wall insulation panels.
This steel structure can be used to manufacture and store various machinery and vehicles. The main frame can adopt H-shaped steel, steel square tube, and truss steel. Steel frame structure buildings have the advantages of large span, large internal space, high strength, light weight, low cost, short construction period, good thermal insulation effect, good seismic performance, and flexible layout. It can also be designed as gable roof, arched roof, truss steel roof, plot type with or without doors and windows, with or with crane. For such projects, our services include design.
All steel structures in our factory are manufactured and installed on site.
Prefabricated Steel Structure Warehouse/Steel Structure Machinery Industrial Park.
|
Name |
Prefabricated Steel Structure Warehouse/Steel Structure Machinery Industrial Park |
|
Structure Type |
Gable frame, single ridge, clean span or two spans |
|
Length Scope |
30- 200m |
|
Width Scope |
20-150m |
|
Eave Height Scope |
6-20m |
|
Roof Slope |
10% |
|
Gable Wall Column Spacing |
7.5m |
|
Roof |
Sandwich panel or single layer steel cladding sheet |
|
Wall |
Sandwich panel or single layer steel cladding sheet |
|
Door |
Sliding door, roller door, lifting door. |
|
Window |
Fixed window, sliding window |
| Ventilator | Unpower ventilator, electric ventilator, fans |
| Steel Frame | H section steel | Q235/Q355 steel 8mm/10mm |
| Welding | Automatic submerged arc welding | |
| Rust removal | Sand blasting | |
| Surface finish | Alkyd paint or galvanized | |
| Intensive bolt | M20,Grade 10.9 | |
| Supporting System | Angle brace | L50x4,Steel Q235, processed and painted |
| Horizontal brace | Φ20, Steel Q235, processed and painted | |
| Column brance | Φ20, Steel Q235, processed and painted | |
| Tie rod | Φ89*3, Steel Q235, processed and painted | |
| Ordinary bolt | M12 Galvanized bolt | |
| Roof | Purlin | C160*60*2.5,Steel Q235, galvanized and painted |
| Roof panel | Sandwich panel or corrugated steel sheet | |
| Sky light | 6mm thick PVC | |
| Accessories | Glass cement, self-tapping screws, etc. | |
| Edge cover | 0.4mm steel sheet profile trimming | |
| Gutter | 0.4mm thick sheet steel profile or galvanized sheet | |
| Down pie | Φ110PVC | |
| Walls | Purlin | C160*60*2.5,Steel Q235, painted |
| Wall | Sandwich panel or corrugated steel plate | |
| Accessories | Glass cement, self-tapping screws, etc. | |
| Edge cover | 0.4mm steel sheet profile trimming | |
| Ventilation | Ventilation ball | |
| Doors & windows | Rolling door/sliding door PVC/alu/steel/window |
The floor space of our steel structre fabrication factory is 35,000㎡, and the workshop area is 20000㎡. We own three light/heavy H steel production lines, BOX production lines, C/Z purlin production lines and various types of profiling steel sheet machines with advanced equipment such as plasma cutting machine.
1. Structural steel fabrication, painting , galvanizing , pre-assembly
2. Designing, fabrication and installation for Prefabricated steel structure building.
3. Deepen or design the fabrication drawing or shop drawing based on your architectural drawing and construction drawing
4. Engineering consulting service
100% testing dimension tolerance <1mm
20% sample welding line ultrasonic testing, no fault, full penetration.
20% magnetic powder testing, no bubble, no defect, Smooth and Full
Supply third-party inspection assistance.
All the structure components, panels,bolts and sort of accessories will be well packed with standard package suitable ocean transportation and loaded into 40’HQ.
All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers,who will prevent the goods to be damaged.
