PEB Steel Building Prefabricated Warehouse Structure Q235B Q355B

PEB Steel Building Prefabricated Warehouse Structure Q235B Q355B
PEB Steel Building Prefabricated Warehouse Structure Q235B Q355B PEB Steel Building Prefabricated Warehouse Structure Q235B Q355B PEB Steel Building Prefabricated Warehouse Structure Q235B Q355B PEB Steel Building Prefabricated Warehouse Structure Q235B Q355B PEB Steel Building Prefabricated Warehouse Structure Q235B Q355B PEB Steel Building Prefabricated Warehouse Structure Q235B Q355B PEB Steel Building Prefabricated Warehouse Structure Q235B Q355B

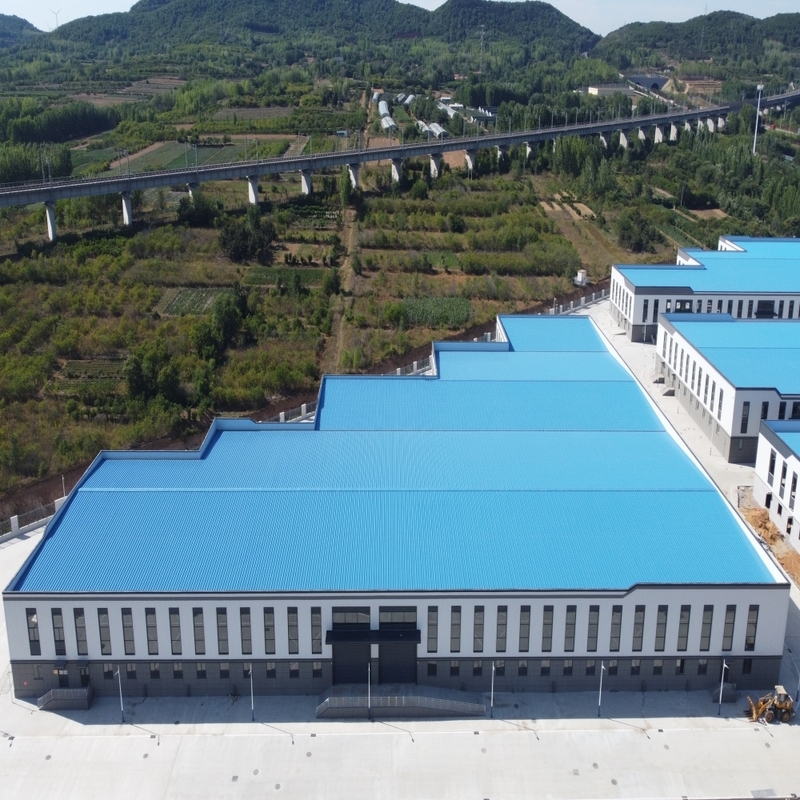

Large Image :  PEB Steel Building Prefabricated Warehouse Structure Q235B Q355B

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV, ISO
Model Number: Ruly0390
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 20000 Square Meter Per Month

PEB Steel Building Prefabricated Warehouse Structure Q235B Q355B

Description
Features: Pre Building Structure Type: PEB Steel Buildings
Application: Logistics Warehouse, Workshop, Plant Raw Steel Material: Q235B, Q355B
Surface Treatment: Painting Service Life: 50 Years
Wall And Roof: Sandwich Panel Working Scope: Design,Fabrication, Installation
Highlight:

Prefabricated PEB Steel Structure Construction

,

BV Galvanized Steel Structure Construction

,

Prefabricated PEB Steel Buildings

Prefabricated PEB Steel Structure Construction / Buildings / Warehouse
Product Features
Attribute Value
Features Pre Building Structure
Type PEB Steel Buildings
Application logistics warehouse, workshop, plant
Raw steel material Q235B, Q355B
Surface treatment Painting
Service life 50 Years
Wall and Roof Sandwich panel
Working scope Design, Fabrication, Installation
Material Specifications
Item Specification
Main Pillar & Beams Q355B
Roof Purlins C200*70*20*2.5 Galvanize
Tie Bar Φ114*4
Pillar Supporters Φ20
Tie rod Φ12,Φ32*2.5
Kneebracing L50*4
Foundation bolt M24
General Bolts C Grade
Bolt screw Φ19
High Strengthened Bolts 10.9 Grade
Roof Panel 0.5mm Galvanized Steel Plate
Ribbon skylight 1.2mm FRP
Floor Steel deck 1.00 mm steel plate
Doors Sliding door
Windows Steel windows
Gutters 3mm thick galvanized steel
Edge and corner wrapping 0.5mm Galvanized Steel Plate
Down pipe Φ140PVC
Steel Structure Advantages
  • Wide range of applications: Suitable for factories, warehouses, office buildings, stadiums, and hangars. Ideal for both single-story, large-span buildings and multi-storey structures.
  • Simple construction: Prefabricated components enable fast assembly, with a 6,000 sqm building typically installed in 40 days.
  • Durable and low-maintenance: Steel-framed design withstands harsh weather conditions with minimal upkeep requirements.
  • Aesthetic flexibility: Modern design with multiple color options for wall panels and various material choices.
  • Cost-effective: Lightweight construction reduces foundation costs, with faster completion times offering superior ROI compared to concrete structures.
Structural Components

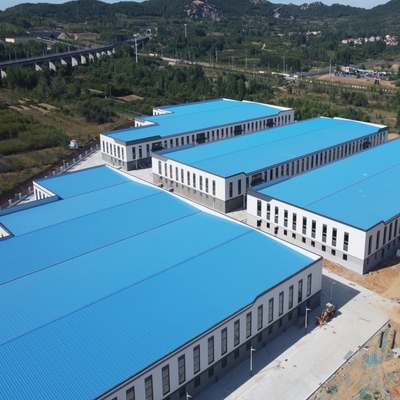

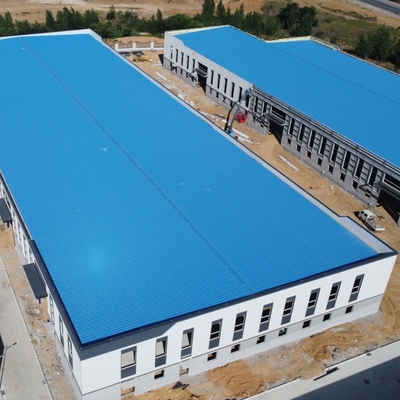

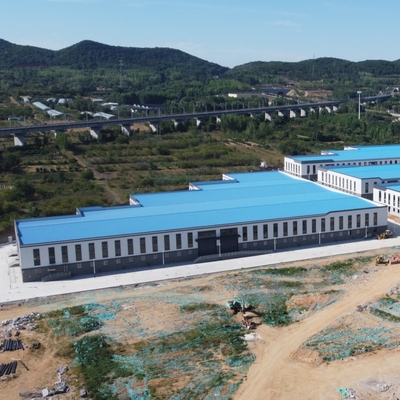

PEB Steel Building Prefabricated Warehouse Structure Q235B Q355B 0 PEB Steel Building Prefabricated Warehouse Structure Q235B Q355B 1 PEB Steel Building Prefabricated Warehouse Structure Q235B Q355B 2
Packaging

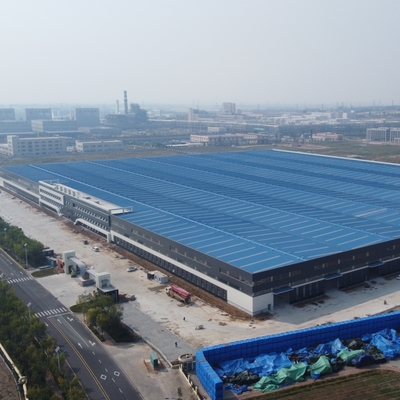

PEB Steel Building Prefabricated Warehouse Structure Q235B Q355B 3 PEB Steel Building Prefabricated Warehouse Structure Q235B Q355B 4
Company Profile

Our company specializes in light and heavy steel structure engineering, offering integrated design, production, and construction services. Certified under ISO9001:2008 quality management system, we have extensive experience in constructing steel structure workshops, warehouses, car showrooms, stadiums, and landscape structures. Our commitment to quality control and excellent craftsmanship has earned us consistent customer recognition.
