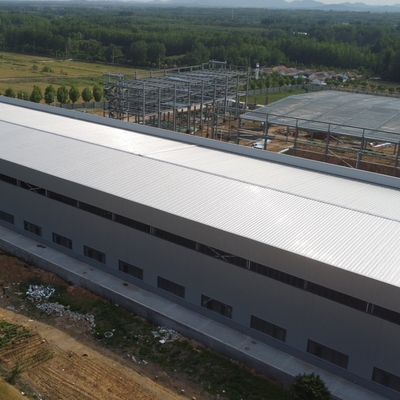

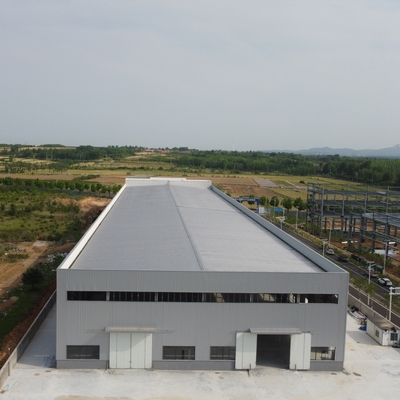

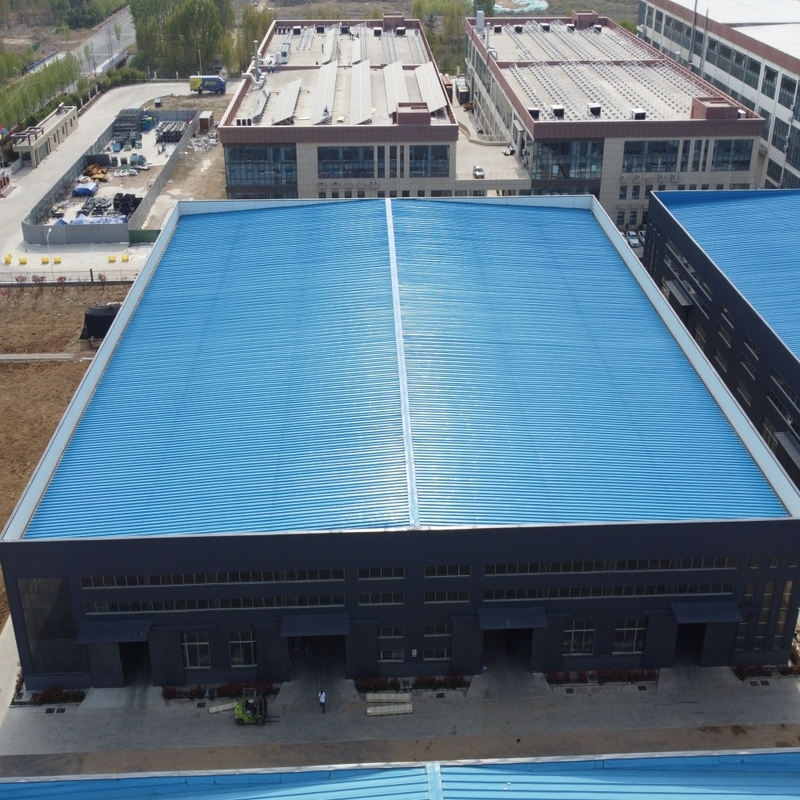

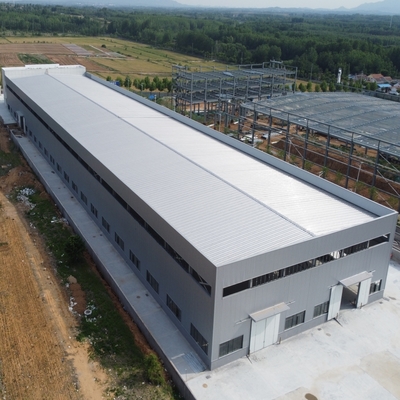

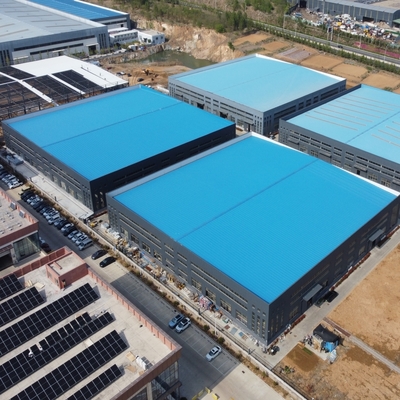

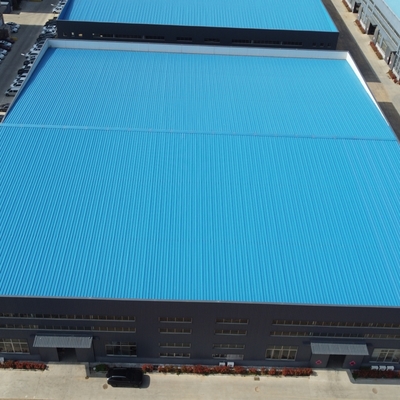

Hot-Dip Galvanized Prefabricated Steel Structure Warehouse

Hot-Dip Galvanized Prefabricated Steel Structure Warehouse
Hot-Dip Galvanized Prefabricated Steel Structure Warehouse
Hot-Dip Galvanized Prefabricated Steel Structure Warehouse Hot-Dip Galvanized Prefabricated Steel Structure Warehouse Hot-Dip Galvanized Prefabricated Steel Structure Warehouse Hot-Dip Galvanized Prefabricated Steel Structure Warehouse Hot-Dip Galvanized Prefabricated Steel Structure Warehouse Hot-Dip Galvanized Prefabricated Steel Structure Warehouse Hot-Dip Galvanized Prefabricated Steel Structure Warehouse

Large Image :  Hot-Dip Galvanized Prefabricated Steel Structure Warehouse

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV,ISO
Model Number: Ruly0368
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square meters
Price: USD25-USD95 Per Square meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 2000 Ton Per Month
Contact Now

Hot-Dip Galvanized Prefabricated Steel Structure Warehouse

Description
Features: Steel Structure Warehouse Application: Steel Structure Construction
Raw Steel Material: Q235B, Q355B, ASTM A36, Surface Treatment: Hot-dip Galvanized
Service Life: 50 Years Wall And Roof: Glass Wool Sandwich Panel
Columns And Beam: H Section Column&Beam, Latticed Column Service: Design,Fabrication, Installation
Highlight:

Prefabricated Q355B Steel Structure Construction

,

Hot Dip Galvanized Steel Structure Construction

,

H Section Column Steel Structure Warehouse

Prefabricated Steel Structure Construction Warehouse Hot Dip Galvanized
Product Specifications
Attribute Value
Application Steel Structure Construction
Features Steel Structure Warehouse
Raw steel material Q235B, Q355B, ASTM A36
Surface treatment Hot-dip Galvanized
Service life 50 Years
Wall and Roof Glass wool sandwich panel
Columns and Beam H Section Column & Beam, Latticed column
Service Design, Fabrication, Installation
Product Overview

The building structure system is formed by the main steel framework through linking up the H beam, Column, and purlin. Roof and wall use various panels together with other components such as windows and doors. This steel structure offers advantages including larger overall rigidity, excellent seismic performance, fast construction speed, light weight, and high bearing capacity. It is ideal for large-span workshops, warehouses, stadiums, stations, airports, and other buildings.

Project Specifications
Name Prefabricated Steel Structure Construction/Steel Structure Warehouse
Structure Type Steel frame structure
Length 90m
Width 30m*6
Eave Height 12m
Span 40m
Steel structure quantity 600 Ton
Steel Beam H-section steel
Roof & Wall sandwich panel 0.5mm steel cladding sheet
Door Sliding door
Window Ribbon Skylight
Technical Parameters
No. Item Details
1 Material Carbon structural steel
2 Produce Lead time Normally 45 days after down payment (varies by quantity)
3 Quality Certification Quality certificate from factory, third party available upon request
4-8 Dimensions H beam: 4000-15000mm
Web plate: 6-32mm
Wing plate: 6-40mm
Height: 200-1200mm
9 Size MOQ is 1000 m² (width × length × eave height)
Main Components
  • Base: Cement and steel foundation bolts
  • Main frame: H Steel beam, Q235/Q345 steel H beam and columns (painted or galvanized), box steel, galvanized C section or steel pipe
  • Secondary frame: Galvanized C or Z purlin, steel bracing, tie bar, knee brace, flashing
  • Material options: Q235B, Q345B or ASTM, BSEN, DIN, IPE, AISI, JIS standards
  • Purlin: C or Z purlin (Size from C120~C320, Z100~Z20)
  • Column types: X-type, tree type, lattice, Cross, Box
Additional Features
  • Bolt: Plain bolt and High-strength bolt
  • Roof & wall: 75mm Glass wool sandwich panel
  • Canopy: 75mm Glass wool sandwich panel
  • Door: Sliding or rolling door
  • Window: Aluminium alloy window
  • Surface: Two layers of rust-proof painting or Hot Dip Galvanized
  • Sheet: 0.5mm or 0.6mm galvanized sheet
  • Accessories: Semi-transparent skylight belts, Ventilators, down pipe, Galvanized gutter, Trim, flashing
  • Finishing options: Various colors and textures available, Alkyd painting, epoxy zinc, or galvanized
Applications
  • Steel workshop, steel warehouse, steel structure plant
  • Steel web frame structure
  • Steel H-column and steel H-beam
  • Portal frame products
  • High rise building project
  • Other steel structure buildings
Hot-Dip Galvanized Prefabricated Steel Structure Warehouse 0 Hot-Dip Galvanized Prefabricated Steel Structure Warehouse 1
Steel Designing & Detailing

Our skilled design team creates 3D Tekla models, layout drawings, fabrication drawings, and installation drawings to meet your specific requirements.

Hot-Dip Galvanized Prefabricated Steel Structure Warehouse 2
Packing & Loading
  • Container 20 feet: Inside: 5.69m × 2.34m × 2.18m, Gross weight: 17.5 ton, volume is 24-26m³
  • Container of 40 feet: Inside: 11.8m × 2.34m × 2.18m, Gross weight: 22 ton, volume is 54m³
  • HC container: Inside: 13.58m × 2.34m × 2.71m, Gross weight: 29 ton, volume is 68m³
  • All steel columns & beams ends and plates are packed with protective blankets to prevent damage during shipment
Hot-Dip Galvanized Prefabricated Steel Structure Warehouse 3
Quotation Requirements

Please provide the following information for an accurate quote:

1 Location (where will be built?) _____country, area
2 Size: length × width × height _____mm × _____mm × _____mm
3 Wind load (max. wind speed) _____kn/m², _____km/h, _____m/s
4 Snow load (max. snow height) _____kn/m², _____mm
5 Anti-earthquake _____level
6 Brickwall needed or not If yes, 1.2m high or 1.5m high
7 Thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels recommended
8 Door quantity & size _____units, _____(width)mm × _____(height)mm
9 Window quantity & size _____units, _____(width)mm × _____(height)mm
10 Crane needed or not If yes, _____units, max. lifting weight____tons; max. lifting height _____m
