Prefab Steel Frame Structure Buildings for Warehouses and Malls

Prefab Steel Frame Structure Buildings for Warehouses and Malls
Prefab Steel Frame Structure Buildings for Warehouses and Malls
Prefab Steel Frame Structure Buildings for Warehouses and Malls Prefab Steel Frame Structure Buildings for Warehouses and Malls Prefab Steel Frame Structure Buildings for Warehouses and Malls Prefab Steel Frame Structure Buildings for Warehouses and Malls Prefab Steel Frame Structure Buildings for Warehouses and Malls Prefab Steel Frame Structure Buildings for Warehouses and Malls Prefab Steel Frame Structure Buildings for Warehouses and Malls

Large Image :  Prefab Steel Frame Structure Buildings for Warehouses and Malls

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV, ISO
Model Number: Ruly0196
Payment & Shipping Terms:
Minimum Order Quantity: 300 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: Steel frame pallets and loaded into 40’HQ
Delivery Time: 30 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 20000 Square Meter Per Month
Contact Now

Prefab Steel Frame Structure Buildings for Warehouses and Malls

Description
Application: Two Floors Steel Warehouse Construction , Two Storeys Steel Frame Structure Buildings Type: Prefab Steel Frame Structure Buildings
Raw Steel Material: Q235B, Q355B, ASTM A36 Shot Blasting Level: Sa 2.5
Service Life: 50 Years Wall And Roof: Rock Wool
Surface Treatment: Painting Working Scope: Design,Fabrication, Installation
Columns & Beams: H-section Steel Standard: AISC, ASTM, BS, DIN, GB, JIS
Highlight:

Three Floors Steel Structure Shopping Malls

,

ASTM A36 Prefabricated Construction Buildings

,

Steel Structure Construction Wind Resistance

Three Floors Steel Structure Construction / Prefabricated Buildings Shopping Malls
Product Specifications
Attribute Value
Application Two Floors Steel Warehouse Construction, Two Storeys Steel Frame Structure Buildings
Type Prefab Steel Frame Structure Buildings
Raw steel material Q235B, Q355B, ASTM A36
Shot blasting level Sa 2.5
Service life 50 Years
Wall and Roof Rock wool
Surface treatment Painting
Working scope Design, Fabrication, Installation
Columns & Beams H-section steel
Standard AISC, ASTM, BS, DIN, GB, JIS
Project Introduction

Steel structures are widely used in engineering projects, particularly for buildings requiring large height or span, light weight, heavy load capacity, crane support, vibration resistance, high temperature environments, tight sealing requirements, or structures needing frequent assembly and disassembly.

Material Specifications
Component Specification
Main Steel Frame (Column) Q235, Q345 Welded H Section Steel
Main Steel Frame (Beam) Q235, Q345 Welded H Section Steel
Secondary Frame (Purlin) Q235 C and Z purlin
Knee brace Q235 Angle Steel
Tie Rod Q235 Circular Steel Pipe
Brace Q235 Round Bar
Vertical and Horizontal Support Q235 Angle Steel, Round Bar or Steel Pipe
Roof Panel EPS Sandwich Panel / Glass Fiber Sandwich Panel / Rock Wool Sandwich Panel / Pu Sandwich Panel / Steel Sheet
Wall Panel Sandwich Panel / Corrugated Steel Sheet
Window Aluminium Alloy Window / PVC Window / Sandwich Panel Window
Door Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door
Rainspout PVC
Live load on Roof 120kg/Sqm (Color steel panel surrounded)
Wind Resistance Grade 12 Grades
Earthquake-resistance 8 Grades
Structure Usage Up to 50 years
Temperature Range -50°C to +50°C
Certification CE, SGS, ISO9001:2008, ISO14001:2004
Our Manufacturing Facility

Our steel structure fabrication factory covers 35,000㎡ with 20,000㎡ of workshop space. We operate three light/heavy H steel production lines, BOX production lines, C/Z purlin production lines, and various profiling steel sheet machines including plasma cutting equipment.

Prefab Steel Frame Structure Buildings for Warehouses and Malls 0

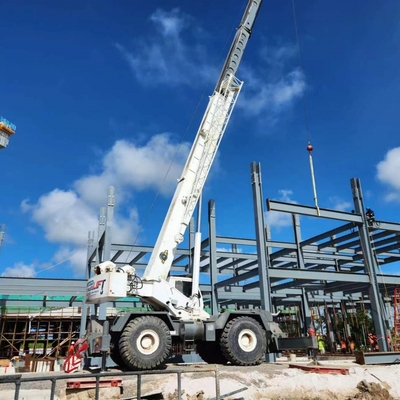

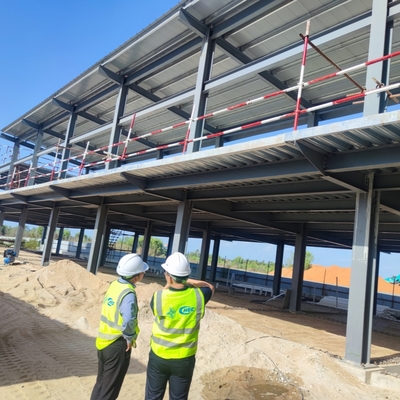

Installation Process

We provide detailed construction drawings prior to installation and can dispatch engineers to guide the process or complete installation with our professional construction team.

Prefab Steel Frame Structure Buildings for Warehouses and Malls 1
Quotation Requirements

Please provide the following information for an accurate quote:

Item Details Required
1 Location (country, area)
2 Size: length × width × height (mm)
3 Wind load (max. wind speed in kn/m², km/h, or m/s)
4 Snow load (max. snow height in kn/m² or mm)
5 Earthquake resistance level
6 Brickwall requirement (height if needed)
7 Thermal insulation preference (material type if needed)
8 Door quantity & dimensions (width × height in mm)
9 Window quantity & dimensions (width × height in mm)
10 Crane requirements (quantity, max lifting weight in tons, max lifting height in meters)
