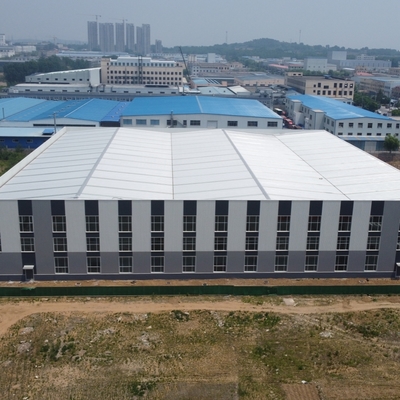

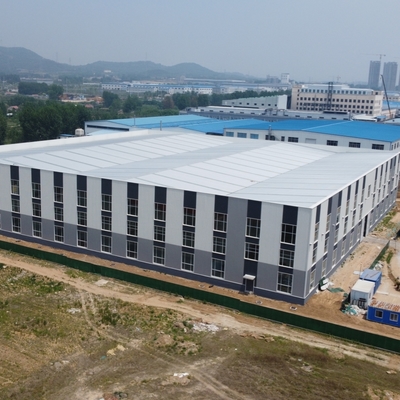

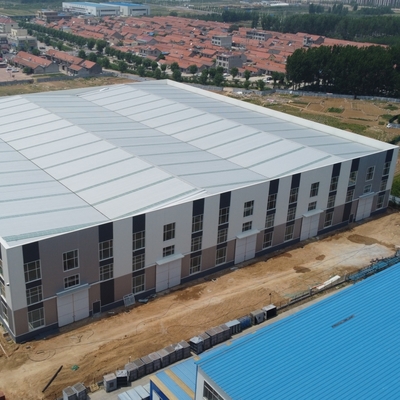

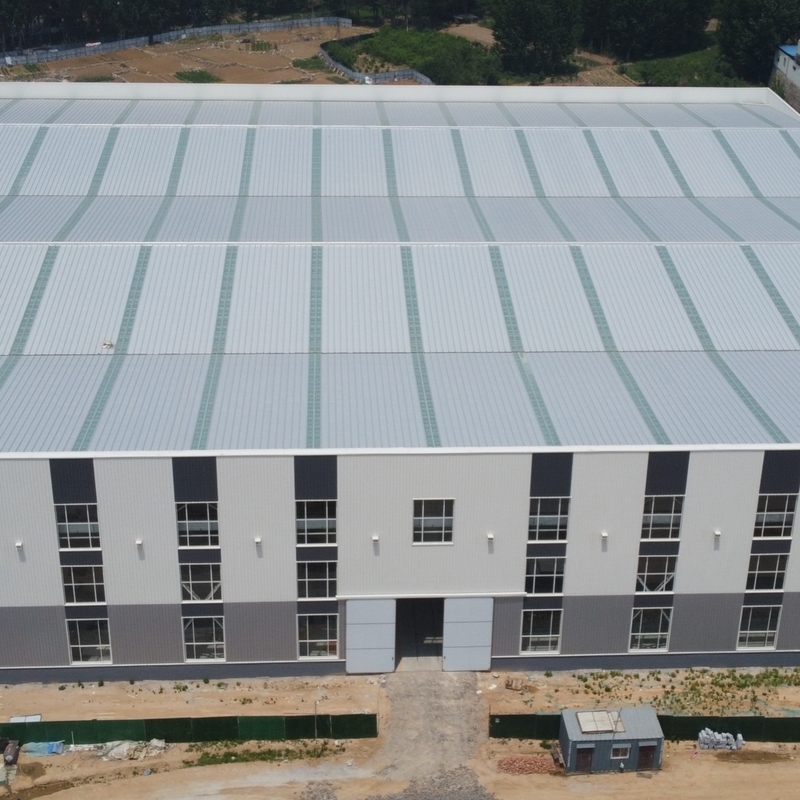

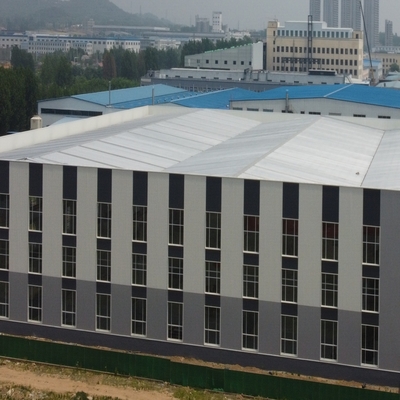

Prefabricated Steel Structure Stadium Building with H Beam Frame

Prefabricated Steel Structure Stadium Building with H Beam Frame
Prefabricated Steel Structure Stadium Building with H Beam Frame
Prefabricated Steel Structure Stadium Building with H Beam Frame Prefabricated Steel Structure Stadium Building with H Beam Frame Prefabricated Steel Structure Stadium Building with H Beam Frame Prefabricated Steel Structure Stadium Building with H Beam Frame Prefabricated Steel Structure Stadium Building with H Beam Frame Prefabricated Steel Structure Stadium Building with H Beam Frame Prefabricated Steel Structure Stadium Building with H Beam Frame

Large Image :  Prefabricated Steel Structure Stadium Building with H Beam Frame

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV,ISO
Model Number: Ruly0355
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 20000 Square Meter Per Month
Contact Now

Prefabricated Steel Structure Stadium Building with H Beam Frame

Description
Application: Prefabricated Steel Structure Building Usage: Prefabricated Steel Structure Stadium
Service: Pre Engineering Buildings Raw Steel Material: Q235B, Q355B
Surface Treatment: Painting Or Hot-dip Galvanize Wall And Roof: Steel Cladding
Columns And Beam: H Section Column&Beam Installation: Engineer Guidance On Site
Highlight:

Large Span PEB Steel Buildings

,

Pre Structured Steel Structure Building

Energy Saving Prefabricated Steel Structure Building Stadium
Product Specifications
Attribute Value
Application Prefabricated Steel Structure Building
Usage Prefabricated Steel Structure Stadium
Service Pre Engineering Buildings
Raw steel material Q235B, Q355B
Surface treatment Painting or Hot-dip Galvanize
Wall and Roof Steel cladding
Columns and Beam H Section Column & Beam
Installation Engineer guidance on site
Project Overview

Steel structure gymnasiums offer significant advantages including low carbon emissions, energy efficiency, environmental sustainability, and reusability. These structures minimize construction waste during reconstruction or demolition, with steel components being fully recyclable. Currently, steel structures are among the most popular building solutions available.

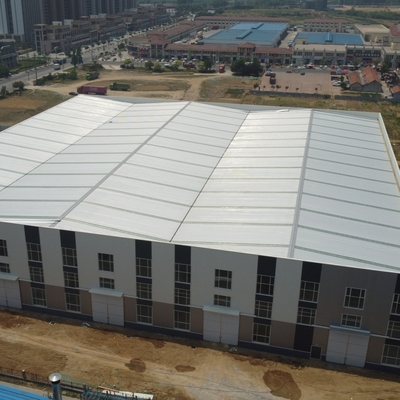

Prefabricated Steel Structure Stadium Building with H Beam Frame 0
Technical Specifications
Name Large Span PEB Steel Buildings / Pre Structured Building Systems Construction
Dimension
  • H beam: 400-1500mm
  • Web plate: 6-32mm
  • Wing plate: 6-40mm
  • Height: 200-1200mm
Color Customizable to customer requirements
Size Minimum order quantity: 300m² (width × length × eave height)
Key Advantages
  • Cost-effective with attractive appearance
  • High safety performance
  • Easy assembly and disassembly
  • Manufactured under ISO9001 quality control system
  • Installation guided by experienced engineers
  • Environmentally friendly with no pollution
Main Components
Component Specification
Base Cement and steel foundation bolts
Main frame H beam
Material Q235B, Q345B or custom materials
Purlin C or Z purlin (C120-C320, Z100-Z20)
Bracing X-type or other bracing (angle steel, round pipe)
Bolt Plain bolt and high strength bolt
Roof & Wall Sandwich panel and color plate
Door Sliding or rolling door
Window Aluminium alloy window
Surface Anti-rust painting or hot dip galvanized
Applications
  • Workshops, warehouses, and plants
  • Steel web frame structures
  • Steel H-column and sheet H-beam constructions
  • Portal frame products
  • High-rise building projects
  • Other steel structure buildings
Packaging & Design
Aspect Details
Packing Main sheet frame without packing load in 40'OT
Drawing According to provided drawings or customer requirements
Design

For custom designs, please provide:

  • Dimensions (length, width, height, eave height, roof pitch)
  • Environmental factors (wind load, snow load, seismic requirements)
  • Door and window specifications
  • Any other relevant information
Technical Parameters
Main Steel Frame System
Component Specification
Main structure H section steel Q345, alkyd painting (two primary, two finish coats)
Roof purlin XZ160*60*20*2.5, galvanized
Wall purlin XZ160*60*20*2.5, galvanized
Intensive bolt Grade 10.9
Turn buckle bolt M20+2, steel Q235
Anchor bolt M24, steel Q235
Ordinary bolt Galvanized bolt M20
Brace nut Galvanized bolt M12
Bracing System
Component Specification
Cross brace Φ20 round steel bar Q235, painted (alkyd)
Angle brace L50*5 angle steel Q235, painted (alkyd)
Column bracing Φ25 round steel bar Q235, painted (alkyd)
Tie bar Φ127*3 steel pipe Q235, painted (alkyd)
Batter brace Φ32*2.5, Φ12 round steel bar Q235, painted (alkyd)
Wall & Roof System
Component Specification
Roof panel Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU)
Wall panel Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU)
Edge cover 0.5mm color plate, angle Alu.
Fittings & accessories Nails, glue etc.
Unpowered ventilator Diameter Φ600, stainless steel
Sky lighting band 1.2mm FRP, double layer
Sliding door Sandwich panel door
Roof Drainage System
Component Specification
Gutter 0.5mm color steel plate
Rainspout pipes Φ110 PVC pipe
Why Choose Our Products

Our company has established long-term partnerships with numerous customers who have visited our facilities. We adhere to the principle of "Quality First, Customer First," earning an excellent reputation through our commitment to superior products and services. We emphasize teamwork and value win-win cooperation to achieve sustainable growth.

  • Cost Efficiency: Professional design reduces construction time and material usage
  • Environmental Benefits: Specialized cladding materials provide excellent acoustic and insulation performance; recyclable materials with no pollution
  • Design Excellence: Spacious layouts with distinctive, elegant profiles
For inquiries about our company or products, please contact us. We are committed to providing our best service.
