Product Details:
|
Application: | Prefabricated Steel Structure Building | Usage: | Prefabricated Steel Structure Stadium |
---|---|---|---|
Service: | Pre Engineering Buildings | Raw Steel Material: | Q235B, Q355B |
Surface Treatment: | Painting Or Hot-dip Galvanize | Wall And Roof: | Steel Cladding |
Columns And Beam: | H Section Column&Beam | Installation: | Engineer Guidance On Site |
Highlight: | Large Span PEB Steel Buildings,Pre Structured Steel Structure Building |

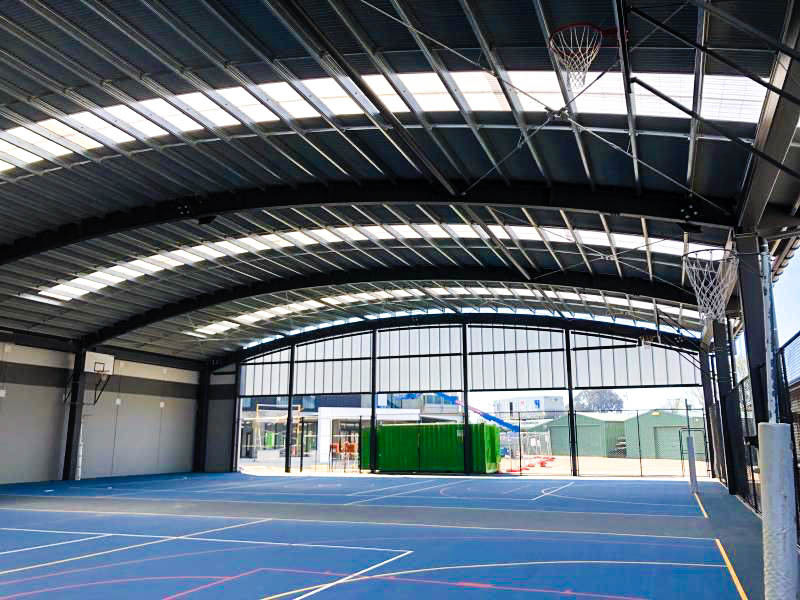

Prefabricated Steel Structure Building Steel Structure Stadium
Steel structure gymnasium has the advantages of low carbon, energy saving, green environmental protection and reusability. Reconstruction, reconstruction and demolition will hardly generate construction waste. Steel can be recycled and reused. Compared with other buildings, steel structure is currently a popular one. one of the buildings.
Name | Large Span PEB Steel Buildings / Pre Structured Building Systems Construction | |
Dimension | Length | H beam:400-1500mm |
Thickness |
web plate: 6-32mm wing plate: 6-40mm |
|
Height | 200-1200mm | |
color | according to customers | |
size | MOQ is300m2,wideth*length*eave height |
Advantage |
1. low cost but beautiful out look 2. high savety performance 3. easy to assemble and dismantle 4.manufacture under under complete quality control system ISO9001 5. Installation with instruction of experiance engineers. 6. Non-pollution |
Main components |
base | cement and steel foundation bolts |
Main frame | H beam | |
Material | Q235B, Q345B or others as customer's request | |
Purlin | C or Z purlin,size from C120-C320,Z100-Z20 | |
bracing | X-type or other type bracing made from angle,round pipe. | |
bolt | plain bolt and high strength bolt | |
Roof&wall | sandwich panel and color plate | |
door | sliding or rolling door | |
Window | Aluminium alloy window | |
surface | two ways of anti-rust painting or hot dip galvanized |
components | sheet | 0.5mm or 0.6mm galvanized sheet |
Accessories | semi-transparent skyling belts, Ventilators,down pipe,galvanized gutter,etc. |
Usages |
1.worshop,warehouse,plants. 2. steel web frame structure 3. steel H-colum and sheet H-beam 4. Portal frame products 5. high rise building project 6. other steel structure buildings. |
Packing | Main sheet frame without packing load in 40'OT |
Drawing | according to drawings or according to customer's requirements. |
Design |
If you need design for you, please supply us the following phareters and other detailed size: 1) length,wideth,height,eave height,roof pitch etc. 2) wind load,snow load,raining condition,aseismatic requirments,etc. 3) demand for doors and windows. 4) other information if necessory |
Main Steel Frame System | |
Main structure | H section steel Q345, alkyd painting, two primary painting, two finish painting. |
Roof purlin | XZ160*60*20*2.5, galvanized |
Wall purlin | XZ160*60*20*2.5, galvanized |
Intensive bolt | Grade 10.9 |
Turn buckle bolt | M20+2, steel Q235, processing |
Anchor bolt | M24, steel Q235, processing |
Ordinary bolt | Galvanized bolt M20 |
Ordinary bolt | Galvanized bolt M12 |
Brace nut | Galvanized bolt M12 |
Bracing System | |
Cross brace | Φ20 round steel bar Q235, process and painted (alkyd painting) |
Angle brace | L50*5 angle steel Q235, process and painted (alkyd painting) |
Column bracing | Φ25 round steel bar Q235, process and painted (alkyd painting) |
Tie bar | Φ127*3 steel pipe Q235, process and painted (alkyd painting) |
Batter brace | Φ32*2.5, Φ12 round steel bar Q235, process and painted (alkyd painting) |
Wall & Roof System | |
Roof panel | Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU) |
Wall panel | Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU) |
Edge cover | 0.5mm color plate, angle Alu. |
Fittings & accessories | Nails, glue etc. |
Unpowered ventilator | Diameter Φ600, stainless steel |
Sky lighting band | 1.2mm FRP, double layer |
Sliding door | sandwich panel door |
Roof drainage system | |
Gutter | 0.5mm color steel plate |
Rainspout pipes | Φ110 PVC pipe |
Many customers have visited our factory for the long term cooperation."Quality firstly,Customer firstly" is our company principle.We obtain sound reputation because of our good quality and service. Meanwhile,We pay attention to the team work and value win-win cooperation, which would guide us much further.
IF YOU ARE INTERESTED IN OUR COMPANY OR PRODUCTS,PLEASE CONTACT US,WE WILL TRY OUR BEST SERVICE FOR YOU.
THANK YOU.
