|Application:||Multi-Storey Steel Structure Building||Type:||Prefab Steel Frame Structure Buildings|
|Raw Steel Material:||Q235B, Q355B, ASTM A36||Service Life:||50 Years|
|Wall And Roof:||Rock Wool||Working Scope:||Design,Fabrication, Installation|
|Columns & Beams:||H-section Steel||Standard:||AISC, ASTM, BS, DIN, GB, JIS|
Prefabricated Steel Structure Office Building,
Multi Storey Steel Structure Office Building,
Multi Storey Steel Structure Building
Prefabricated Steel Structure Office Building Multi-Storey Steel Structure Building

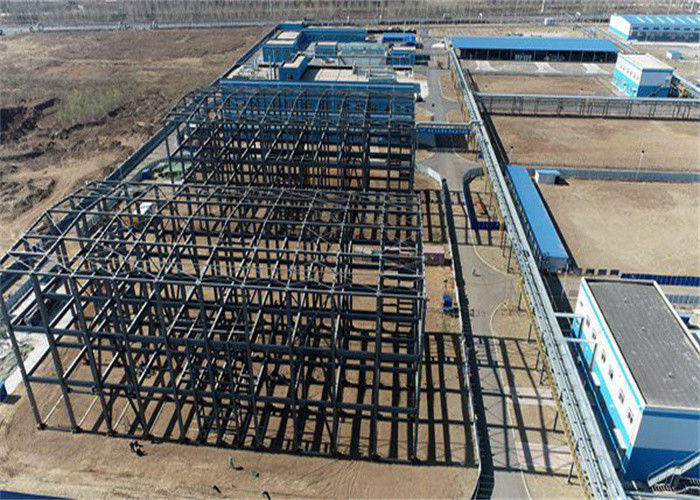

Prefabricated Steel Structure Office Building Multi-Storey Steel Structure Building.It is a three-storey steel frame structure built as a office building.Steel structural members are mainly composed of steel beams, steel columns, steel trusses and other members made of steel and steel plates.Due to the overall stiffness and seismic performance of the steel structure, the construction speed is fast, the weight is light, the bearing capacity is high, and the span is large, the reinforced concrete structure has been replaced by the super high-rise building.Welds, bolts, or rivets are commonly used to join the various parts or members of a steel structure.
Qingdao Ruly Steel Engineering Co.,Ltd is a professional steel structure fabrication and construction company for light and heavy steel structure project. Our service include design, fabrication for all the steel structure components and insullation panel, installation on site.
|Main Steel Frame||Column||Q235, Q355 Welded H Section Steel|
|Beam||Q235, Q355 Welded H Section Steel|
|Secondary Frame||Purlin||Q235 C and Z purlin|
|Knee brace||Q235 Angle Steel|
|Tie Rod||Q235 Circular Steel Pipe|
|Brace||Q235 Round Bar|
|Vertical and Horizontal Support||Q235 Angle Steel, Round Bar or Steel Pipe|
|Maintenance system||Roof Panel||EPS Sandwich Panel / Glass Fiber Sandwich Panel /
Rock Wool Sandwich Panel / Pu Sandwich Panel /Steel Sheet
|Wall Panel||Sandwich Panel / Corrugated Steel Sheet|
|Accessories||Window||Aluminiumn Alloy Window / PVC Window / Sandwich Panel Window|
|Door||Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door|
|Live load on Roof||In 120kg/Sqm (Color steel panel surrounded)|
|Wind Resistance Grade||12 Grades|
|Structure Usage||Up to 50 years|
|Certification||CE, SGS, ISO9001:2008, ISO14001:2004|
|Finishing Options||Vast array of colors and textures available|
|Paint Options||Alkyd paiting, two primary painting, two finish painting
(gray paint, red paint, white paint, epoxy zinc etc.) Or Galvanized.
The floor space of our steel structre fabrication factory is 35,000㎡, and the workshop area is 20000㎡. We own three light/heavy H steel production lines, BOX production lines, C/Z purlin production lines and various types of profiling steel sheet machines with advanced equipment such as plasma cutting machine.
We can design and fabricate customized steel structure components for light and heavy steel structure buildings in protal frame and dome frame, such as warehouse, workshop, storage, hangar, chicken shed, steel shed for market and ground parking, supermarket , high rise steel office buiding, factory , plant, exhibition hall, gym, dormitory building, oli&gas, power station, infrastructure buildings, etc.
1- Are you factory or trading company?
We are factory.
2- What kinds of structural steel do you produce?
Steel columns, variable cross-section columns, cross columns, H beams, arc-shape H beams, two cross-section beams, variable cross-section beams, box beams, tie beams, sectioned beams, arc-shape beams, castellated beams, etc.
3- Where to use your structural steel?
Steel structure buildings, warehouse, workshop, factory, office building, shopping mall, hospital, apartment, etc.
4- What equipment do you have for manufacturing?
CNC cutting machine, H-Beam Auto Assembly Machine, Auto submerged arc welding machine, Flange Straightening Machine, Hydraulic Brake Type Plate, Shearing Machine, Numerical Control Cutting Machine, Three Torches Straightline Cutting Machine, Magnetic drill machine, Intelligent&Manual Welder, Air Compressor, Sandblasting Machine,etc.
5- What welding standard do you use during processing?
GB, JIS, ASTM.
6- What method do you use for packing?
Steel pallet on the bottom, wood among each layer and cable for fastening, or as per your requirements.
For any other question or further discusstion, please send us inquiry or email!
