Prefabricated Steel Structure Office Building Multi Storey Steel Structure Building
Product Specifications
| Attribute |
Value |
| Application |
Multi-Storey Steel Structure Building |
| Type |
Prefab Steel Frame Structure Buildings |
| Raw steel material |
Q235B, Q355B, ASTM A36 |
| Service life |
50 Years |
| Wall and Roof |
Rock wool |
| Working scope |
Design, Fabrication, Installation |
| Columns & Beams |
H-section steel |
| Standard |
AISC, ASTM, BS, DIN, GB, JIS |
Product Description

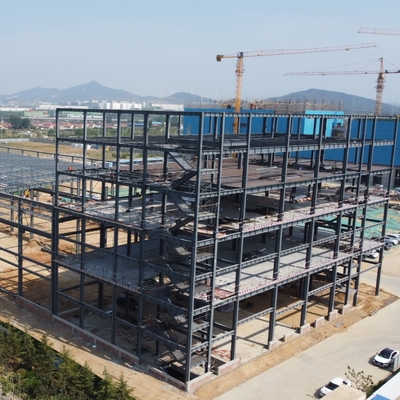

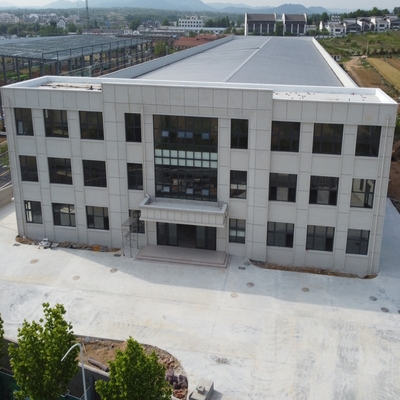

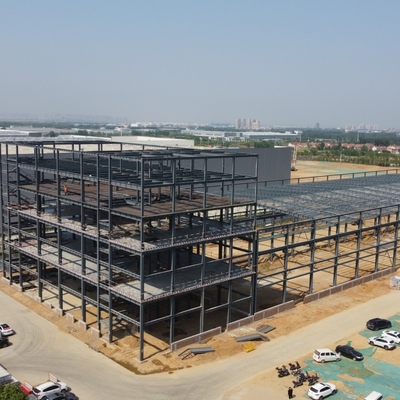

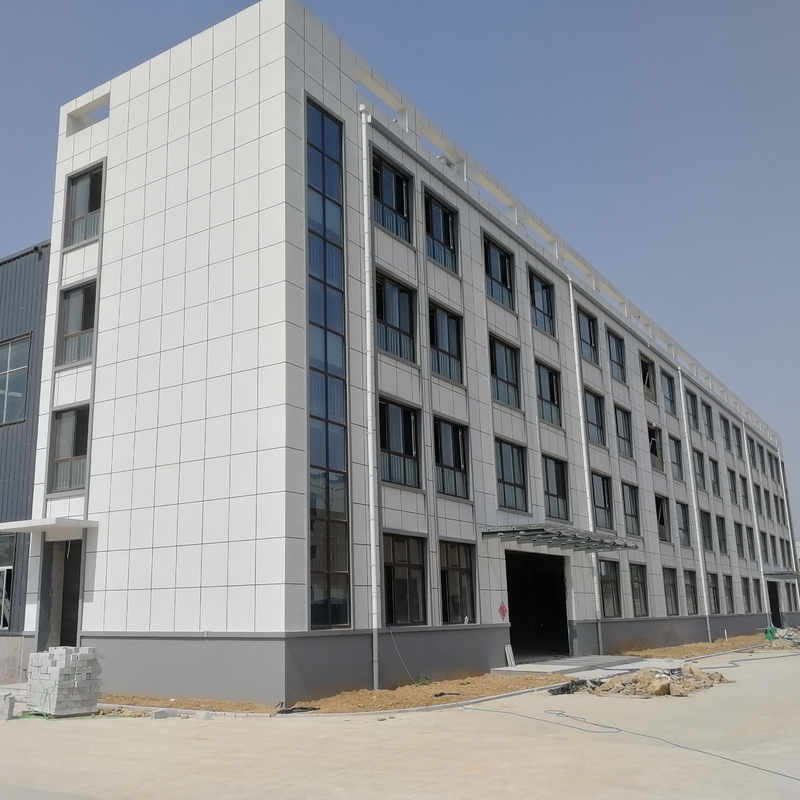

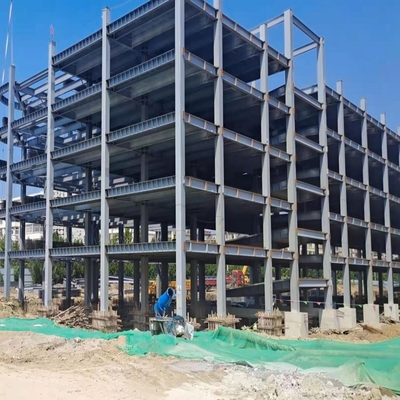

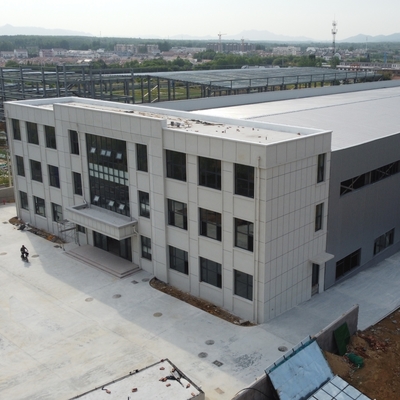

Our prefabricated steel structure office buildings are three-storey steel frame structures designed for commercial use. The structural members consist of steel beams, columns, and trusses made from high-quality steel plates. These buildings offer superior stiffness, seismic performance, and rapid construction compared to traditional reinforced concrete structures.
Material Specifications
| Component |
Specification |
| Main Steel Frame (Column) |
Q235, Q355 Welded H Section Steel |
| Main Steel Frame (Beam) |
Q235, Q355 Welded H Section Steel |
| Secondary Frame (Purlin) |
Q235 C and Z purlin |
| Knee brace |
Q235 Angle Steel |
| Tie Rod |
Q235 Circular Steel Pipe |
| Brace |
Q235 Round Bar |
| Vertical and Horizontal Support |
Q235 Angle Steel, Round Bar or Steel Pipe |
| Roof Panel |
EPS Sandwich Panel / Glass Fiber Sandwich Panel / Rock Wool Sandwich Panel / Pu Sandwich Panel / Steel Sheet |
| Wall Panel |
Sandwich Panel / Corrugated Steel Sheet |
| Performance |
Wind Resistance: 12 Grades | Earthquake-resistance: 8 Grades | Structure Usage: Up to 50 years |
| Certification |
CE, SGS, ISO9001:2008, ISO14001:2004 |
Our Manufacturing Facility
Our 35,000㎡ steel structure fabrication factory includes 20,000㎡ of workshop space equipped with three light/heavy H steel production lines, BOX production lines, C/Z purlin production lines, and advanced machinery including plasma cutting machines.
Our Services
We provide comprehensive design, fabrication, and installation services for customized steel structures including warehouses, workshops, office buildings, and specialized facilities across various industries.
Frequently Asked Questions
Are you factory or trading company?
We are factory.
What kinds of structural steel do you produce?
Steel columns, variable cross-section columns, cross columns, H beams, arc-shape H beams, two cross-section beams, variable cross-section beams, box beams, tie beams, sectioned beams, arc-shape beams, castellated beams, etc.
Where to use your structural steel?
Steel structure buildings, warehouse, workshop, factory, office building, shopping mall, hospital, apartment, etc.
What equipment do you have for manufacturing?
CNC cutting machine, H-Beam Auto Assembly Machine, Auto submerged arc welding machine, Flange Straightening Machine, Hydraulic Brake Type Plate, Shearing Machine, Numerical Control Cutting Machine, Three Torches Straightline Cutting Machine, Magnetic drill machine, Intelligent&Manual Welder, Air Compressor, Sandblasting Machine, etc.
What welding standard do you use during processing?
GB, JIS, ASTM.
What method do you use for packing?
Steel pallet on the bottom, wood among each layer and cable for fastening, or as per your requirements.
For any other question or further discussion, please send us inquiry or email!
