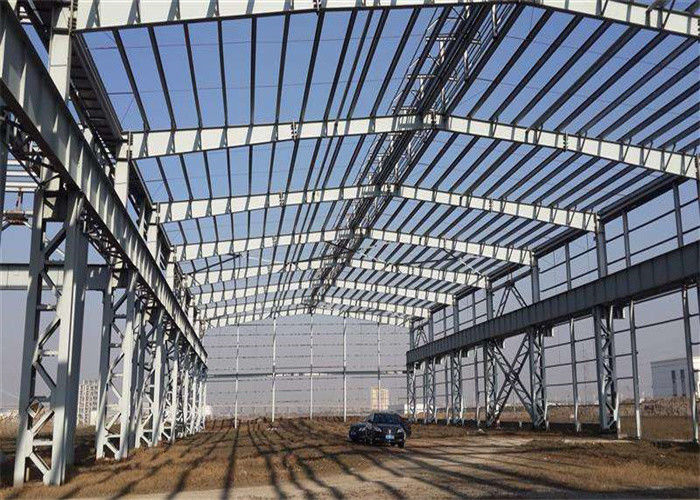

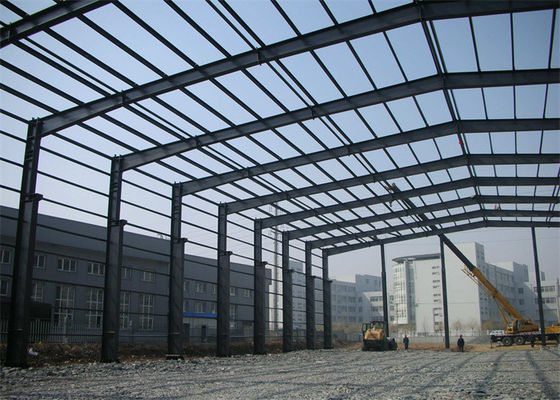

Q235B Prefabricated Steel Structure Warehouse / Steel Structure Godown Design

Q235B Prefabricated Steel Structure Warehouse / Steel Structure Godown Design
Q235B Prefabricated Steel Structure Warehouse / Steel Structure Godown Design Q235B Prefabricated Steel Structure Warehouse / Steel Structure Godown Design

Large Image :  Q235B Prefabricated Steel Structure Warehouse / Steel Structure Godown Design

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV,ISO
Model Number: Ruly0347
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000 Square Meter Per Month

Q235B Prefabricated Steel Structure Warehouse / Steel Structure Godown Design

Description
Application: Steel Structure Warehouse, Steel Godown,Steel Prefab Buildings Type: Prefab Steel Buildings
Raw Steel Material: Q235B, Q355B Surface Treatment: Painting Or Hot-dip Galvanize
Shot Blasting Level: Sa 2.5 Service Life: 50 Years
Wall And Roof: Glass Wool Sandwich Panel Working Scope: Design,Fabrication, Installation
High Light:

Q235B Prefabricated Steel Structure Warehouse

,

Prefabricated Steel Structure Warehouse Godown

,

Q235B Steel Structure Godown Design

Prefabricated Steel Structure Warehouse / Steel Godown/ Steel Buildings



General for Prefabricated Steel Structure Warehouse / Steel Godown/ Steel Buildings



Prefabricated Steel Structure Warehouse / Steel Prefab Buildings Contractors.This is a Prefabricated Structural Steel Frames Workshop Steel Building Contractors. This kind of steel buildings have one ridge and two spans. The load-bearing members of the steel structure buildings are composed of steel columns, steel beams, steel structure foundations, steel roof trusses (The span of the factory is relatively large, basically all are steel structure trusses), steel roofs and so on.



Prefabricated Structural Steel Frames Workshop Steel Building has the characteristics of simple design structure, light weight, high strength, convenient production and installation, large span of plant space, short construction period, low price and strong earthquake resistance. It is a structure widely used in industrial plants.



Project information for Prefabricated Steel Structure Warehouse / Steel Godown / Steel Prefab Buildings :



Name

Prefabricated Steel Structure Warehouse / Steel Godown/ Steel Buildings

Structure Type portal frame, single ridge, double spans
Length Scope 20-150m
Width Scope 20-80m
Eave Height 9-20m
Roof Slope portal frame or gable frame
Gable Wall Column Spacing 7.5m
Roof

Glass wool sandwich panel

Wall Glass wool sandwich panel
Door Sliding door
Window Ribbon Skylight
Height difference between indoor and outdoor 300mm



Main parts of the steel structures and technical parameters:



Main Steel Frame System
Main structure H section steel Q355, alkyd painting, two primary painting, two finish painting.
Roof purlin XZ160*60*20*2.5, galvanized
Wall purlin XZ160*60*20*2.5, galvanized
Intensive bolt Grade 10.9
Turn buckle bolt M20+2, steel Q235, processing
Anchor bolt M24, steel Q235, processing
Ordinary bolt Galvanized bolt M20
Ordinary bolt Galvanized bolt M12
Brace nut Galvanized bolt M12
Bracing System
Cross brace Φ20 round steel bar Q235, process and painted (alkyd painting)
Angle brace L50*5 angle steel Q235, process and painted (alkyd painting)
Column bracing Φ25 round steel bar Q235, process and painted (alkyd painting)
Tie bar Φ127*3 steel pipe Q235, process and painted (alkyd painting)
Batter brace Φ32*2.5, Φ12 round steel bar Q235, process and painted (alkyd painting)
Wall & Roof System
Roof panel  Glass wool sandwich panel
Wall panel Glass wool sandwich panel
Edge cover 0.5mm color plate, angle Alu.
Fittings & accessories Nails, glue etc.
Unpowered ventilator Diameter Φ600, stainless steel
Sky lighting band 1.2mm FRP, double layer
Sliding door sandwich panel door
Roof drainage system
Gutter 0.5mm color steel plate
Rainspout pipes Φ110 PVC pipe



Our steel structure production line:

Qingdao Ruly Steel Engineering Co.,Ltd is a professional steel structure fabrication and construction company for light and heavy steel structure Design, Manufacture & Installation.

The floor space of our steel structre fabrication factory is 35,000㎡, and the workshop area is 20000㎡. We own several light/heavy H steel production lines, BOX production lines, C/Z purlin production lines and various types of profiling steel sheet machines with advanced equipment such as plasma cutting machine.

Q235B Prefabricated Steel Structure Warehouse / Steel Structure Godown Design 0
Our service:



1. Structural steel fabrication, painting , galvanizing , pre-assembly

2. Designing, fabrication and installation for Prefabricated steel structure building.

3. Deepen or design the fabrication drawing or shop drawing based on your architectural drawing and construction drawing

4. Engineering consulting service

Q235B Prefabricated Steel Structure Warehouse / Steel Structure Godown Design 1



Packing and transport:



All the structure components, panels,bolts and sort of accessories will bewell packed with standard package suitable ocean transportation and loaded into 40’HQ.

All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers,who will prevent the goods to be damaged.

Q235B Prefabricated Steel Structure Warehouse / Steel Structure Godown Design 2

How to quote:



The following question we need to know before making the price. Just feel free to fill what you know.

1 Location (where will be built?) _____country, area
2 Size: length*width*height _____mm*_____mm*_____mm
3 wind load (max. wind speed) _____kn/m2, _____km/h, _____m/s
4 snow load (max. snow height) _____kn/m2, _____mm
5 anti-earthquake _____level
6 brickwall needed or not If yes, 1.2m high or 1.5m high
7 thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; . if not, the metal steel sheets will be ok. The cost of the latter will be much
lower than that of the former
8 door quantity & size _____units, _____(width)mm*_____(height)mm
9 window quanity & size _____units, _____(width)mm*_____(height)mm
10 crane needed or not If yes, _____units, max. lifting weight____tons; max. lifting height _____m
