Product Details:
|
| Features: | Lightweight Steel Frame Building | Application: | Fabrication Steel Structure Warehouse |
|---|---|---|---|
| Type: | Steel Structure Warehouse | Raw Steel Material: | Q235B, Q355B |
| Working Scope: | Design,Fabrication, Installation | Surface Treatment: | Painting |
| Service Life: | 50 Years | Wall And Roof: | Steel Cladding Sheet |
| High Light: | steel structure building,metal warehouse construction,Q235B Fabrication Steel Structure Warehouse |
||

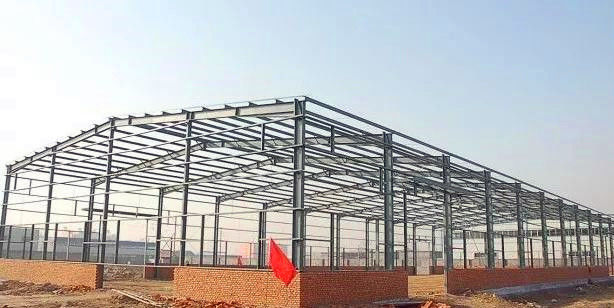

Lightweight Steel Frame Building / Fabrication Steel Structure Warehouse
Steel structure warehouse, factory building is one of the more common structural forms in modern construction engineering. Steel structures are widely used in large-scale factory buildings, stadiums, and super high-rise areas because of their light weight and simple construction. Steel structure is a structure made of steel (profiles, plates) made of components or parts, and then connected by a certain connection method. The quality of the connection directly affects the safety of the overall structure. The correct selection of the connection method and the reasonable design of the connection form are important parts in the installation of steel structures. Reasonable connection design should comply with the principles of safety and reliability, simple structure, clear transmission force, convenient construction, and saving steel.
|
Name |
Lightweight Steel Frame Building / Fabrication Steel Structure Warehouse |
|
Structure Type |
Gable frame, single ridge, clean span or two spans |
|
Length |
40- 100m |
|
Width |
20-80m |
|
Eave Height |
6-15m |
|
Roof Slope |
10% |
|
Gable Wall Column Spacing |
7.5m |
|
Roof |
Glass wool sandwich panel |
|
Wall |
Glass wool sandwich panel |
|
Door |
Sliding door |
|
Window |
Ribbon Skylight |
|
Height difference between indoor and outdoor |
300mm |
| Item name | Specification | Material Parameter | Technical Treatment |
| Column | H-section steel | Q235B,Q345B | Paint or Hot dip galvanized |
| Beam | H-section steel | Q235B,Q345B | Paint or Hot dip galvanized |
| Bracing | Steel rod,Steel pipe,Angle steel | Q235B,Q345B | |
| Purling | C or Z shape, purling Thickness:1.8mm~3.0mm | Q235B,Q346B | Hot dip galvanized |
| Wall and roof panel | EPS,Rock wool,Pu,Glass wool Sandwich panel or Single sheet. | Steel T=0.426~0.8mm,insulation T=50~150mm | Alu-zinc 150g, Fluorocarbon paint |
| Door | Sliding or rolling door | Steel or Aluminum sheet,T=1.0~1.5mm | Paint or Hot dip galvanized |
| Window | alloy-Glass,Aluminium alloy-shutter | T=1.0~2.0mm | Alloy |
| Lighting panel | FRP, T=1.5mm or T=1.8mm | Coefficient of thermal expansion:2.2x10-5/cm/cm/℃ | Light transmittance 85% |
| Ventilator | Turbine ventilator, and electric type | Steel,stainless steel,PC | Paint or Hot dip galvanized,304 |
| Gutter | Galvanized or stainless steel plate | T=2.0mm | Hot dip galvanized,304 |
| Downpipe | PVC pipe,Color steel pipe T=0.5mm | Φ110,160,200 | Paint |
| Bolt | Ordinary, high strength | 10.9S,4.8s | Hot dip galvanized |
| Anchor bolt | Steel rod M24,M27 M30 | Q235B |
1. Structural steel fabrication, painting , galvanizing , pre-assembly
2. Designing, fabrication and installation for Prefabricated steel structure building.
3. Deepen or design the fabrication drawing or shop drawing based on your architectural drawing and construction drawing
4. Engineering consulting service
The floor space of our steel structre fabrication factory is 35,000㎡, and the workshop area is 20000㎡. We own three light/heavy H steel production lines, BOX production lines, C/Z purlin production lines and various types of profiling steel sheet machines with advanced equipment such as plasma cutting machine.
| Items | Questions | Answers |
| 1 | Are you manufacture factory or trading company? | We are manufacture factory. Welcomed to visit us at any time. The quality control flow and sales team will show you our professionalism. Also you will get best and most competitive price after visiting us. |
| 2 | Is your price competitive compared with other companies? | Our business objectives are to give the best price with same quality and best quality with the same price. We will do everything we can to reduce your cost and guarantee you get the best product that you paid for. |
| 3 | Can you send engineers or whole team to install my project? | We will give detailed installation drawings for free for each project before installation. We can send engineers to guide installation on site or a construction team to install directly. |
| 4 | Do you offer designing service for us? |
Yes, we could design full solution drawings as your requirements. By using AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (Xsteel) and etc. we can design proposal drawing, shop drawing, 3D Tekla model, construction/installation drawing to you. |
| 5 | What is the delivery time? |
Delivery time depends on order quantities. In general the delivery time to nearest seaport in China will be 40 days after receiving deposit. |
| 6. | How to pack and transport: |
All the structure components, panels,bolts and sort of accessories will be well packed with standard package suitable ocean transportation and loaded into 40’HQ. |
