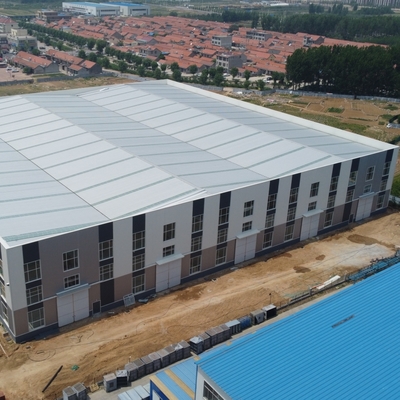

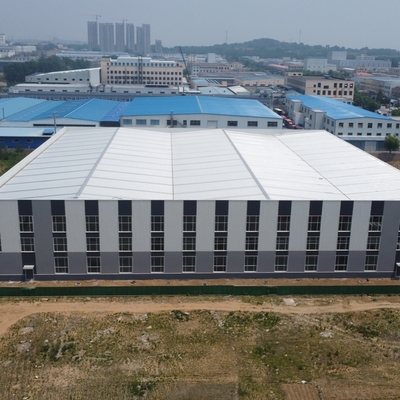

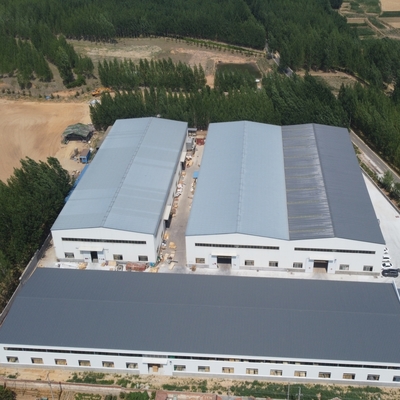

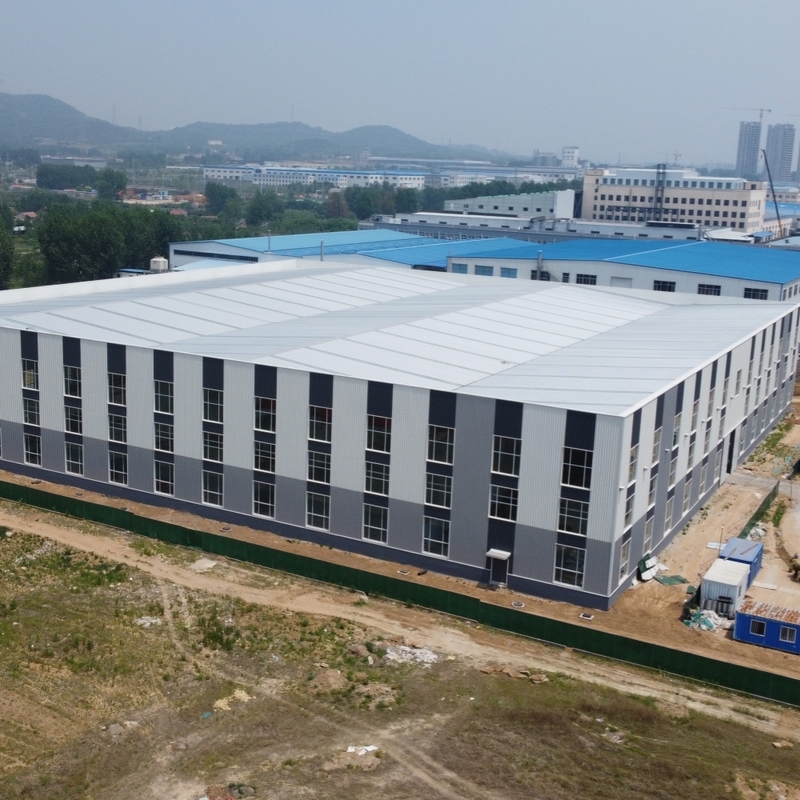

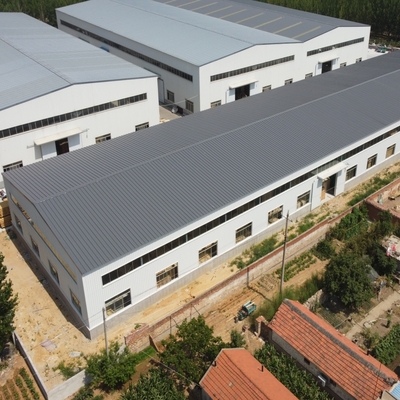

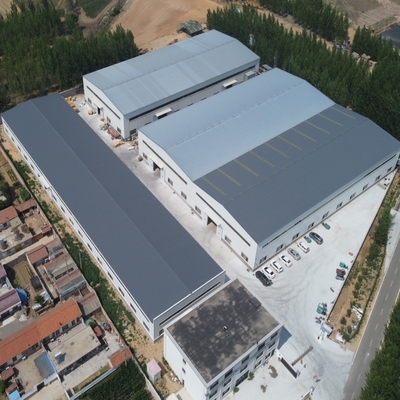

Prefabricated Steel Frame Building Structure with Rock Wool Insulation

Prefabricated Steel Frame Building Structure with Rock Wool Insulation
Prefabricated Steel Frame Building Structure with Rock Wool Insulation
Prefabricated Steel Frame Building Structure with Rock Wool Insulation Prefabricated Steel Frame Building Structure with Rock Wool Insulation Prefabricated Steel Frame Building Structure with Rock Wool Insulation Prefabricated Steel Frame Building Structure with Rock Wool Insulation Prefabricated Steel Frame Building Structure with Rock Wool Insulation Prefabricated Steel Frame Building Structure with Rock Wool Insulation Prefabricated Steel Frame Building Structure with Rock Wool Insulation

Large Image :  Prefabricated Steel Frame Building Structure with Rock Wool Insulation

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV, ISO
Model Number: Ruly0209
Payment & Shipping Terms:
Minimum Order Quantity: 300 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: Steel frame pallets and loaded into 40’HQ
Delivery Time: 30 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 20000 Square Meter Per Month
Contact Now

Prefabricated Steel Frame Building Structure with Rock Wool Insulation

Description
Features: Prefabricated Building Structure Application: Prefabricated Steel Frame Buildings
Type: Prefabricated Steel Frame Buildings Raw Steel Material: Q235B, Q355B, ASTM A36
Service Life: 50 Years Wall And Roof: Rock Wool
Surface Treatment: Painting Working Scope: Design,Fabrication, Installation
Columns & Beams: H-section Steel Standard: AISC, ASTM, BS, DIN, GB, JIS
Highlight:

prefab steel structures

,

steel structure building construction

Industrial Prefabricated Building Structure / Steel Frame Structure Construction
Attribute Value
Application Prefabricated Steel Frame Buildings
Features Prefabricated Building Structure
Type Prefabricated Steel Frame Buildings
Raw steel material Q235B, Q355B, ASTM A36
Service life 50 Years
Wall and Roof Rock wool
Surface treatment Painting
Working scope Design, Fabrication, Installation
Columns & Beams H-section steel
Standard AISC, ASTM, BS, DIN, GB, JIS
Project Introduction

Our prefabricated steel frame buildings are custom-made solutions for various industrial applications, offering superior advantages over conventional construction methods. These metal warehouse buildings provide exceptional durability, rapid assembly, and flexibility for future expansion while withstanding severe weather conditions.

Specification of Steel Structure Material
Steel Frame H section steel | Q235/Q345 steel plate thickness: 8-30mm
Welding Automatic submerged arc welding
Rust removal Sand blasting
Surface finish Alkyd paint or galvanized
Intensive bolt M20, Grade 10.9
Supporting System
  • Angle brace: L50x4, Steel Q235, processed and painted
  • Horizontal brace: Φ20, Steel Q235, processed and painted
  • Column brace: Φ20, Steel Q235, processed and painted
  • Tie rod: Φ89*3, Steel Q235, processed and painted
  • Ordinary bolt: M12 Galvanized bolt
Roof
  • Purlin: C160*60*2.5, Steel Q235, galvanized and painted
  • Roof panel: Sandwich panel or corrugated steel sheet
  • Sky light: 6mm thick PVC
  • Accessories: Glass cement, self-tapping screws, etc.
  • Edge cover: 0.4mm steel sheet profile trimming
  • Gutter: 0.4mm thick sheet steel profile or galvanized sheet
  • Down pie: Φ110PVC
Walls
  • Purlin: C160*60*2.5, Steel Q235, painted
  • Wall: Sandwich panel or corrugated steel plate
  • Accessories: Glass cement, self-tapping screws, etc.
  • Edge cover: 0.4mm steel sheet profile trimming
  • Ventilation: Ventilation ball
  • Doors & windows: Rolling door/sliding door PVC/alu/steel/window
Our Steel Structure Fabrication Factory

Our 35,000㎡ facility includes 20,000㎡ of workshop space equipped with advanced manufacturing capabilities:

  • Light/heavy H steel production lines
  • BOX production lines
  • C/Z purlin production lines
  • Profiling steel sheet machines
  • Plasma cutting machines
Prefabricated Steel Frame Building Structure with Rock Wool Insulation 0
Installation Process

We provide comprehensive installation support including detailed construction drawings and on-site guidance from our experienced engineers. Our professional construction team can also handle the complete installation process.

Prefabricated Steel Frame Building Structure with Rock Wool Insulation 1
