Two Floors Steel Frame Warehouse Building with Rock Wool Insulation

Two Floors Steel Frame Warehouse Building with Rock Wool Insulation
Two Floors Steel Frame Warehouse Building with Rock Wool Insulation
Two Floors Steel Frame Warehouse Building with Rock Wool Insulation Two Floors Steel Frame Warehouse Building with Rock Wool Insulation Two Floors Steel Frame Warehouse Building with Rock Wool Insulation Two Floors Steel Frame Warehouse Building with Rock Wool Insulation Two Floors Steel Frame Warehouse Building with Rock Wool Insulation Two Floors Steel Frame Warehouse Building with Rock Wool Insulation Two Floors Steel Frame Warehouse Building with Rock Wool Insulation

Large Image :  Two Floors Steel Frame Warehouse Building with Rock Wool Insulation

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV, ISO
Model Number: Ruly0196
Payment & Shipping Terms:
Minimum Order Quantity: 300 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: Steel frame pallets and loaded into 40’HQ
Delivery Time: 30 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 20000 Square Meter Per Month
Contact Now

Two Floors Steel Frame Warehouse Building with Rock Wool Insulation

Description
Application: Two Floors Steel Warehouse Construction , Two Storeys Steel Frame Structure Buildings Type: Prefab Steel Frame Structure Buildings
Raw Steel Material: Q235B, Q355B, ASTM A36 Shot Blasting Level: Sa 2.5
Service Life: 50 Years Wall And Roof: Rock Wool
Surface Treatment: Painting Working Scope: Design,Fabrication, Installation
Columns & Beams: H-section Steel Standard: AISC, ASTM, BS, DIN, GB, JIS
Highlight:

prefab metal buildings

,

steel frame construction

Two Floors Steel Structure Construction / Steel Frame Structure Buildings
Product Specifications
Application Two Floors Steel Warehouse Construction, Two Storeys Steel Frame Structure Buildings
Type Prefab Steel Frame Structure Buildings
Raw steel material Q235B, Q355B, ASTM A36
Shot blasting level Sa 2.5
Service life 50 Years
Wall and Roof Rock wool
Surface treatment Painting
Working scope Design, Fabrication, Installation
Columns & Beams H-section steel
Standard AISC, ASTM, BS, DIN, GB, JIS
Project Overview

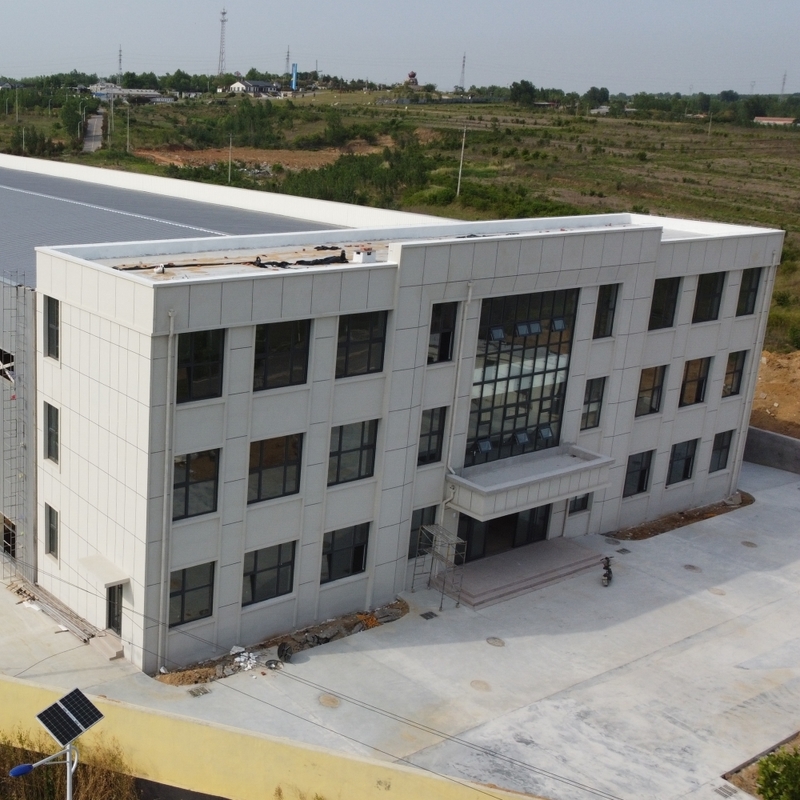

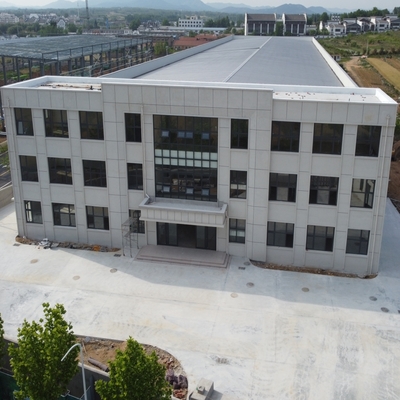

This two-floor steel frame structure building is designed as an electronic parts factory. The structural members consist primarily of steel beams, columns, and trusses made from steel plates. Galvanized steel floor decking supports the concrete flooring.

Steel structures are ideal for buildings requiring large height or span, light weight, heavy load capacity, crane support, vibration resistance, high-temperature environments, tight sealing requirements, or structures needing frequent assembly/disassembly.

Material Specifications
Component Specification
Main Steel Frame (Column) Q235, Q345 Welded H Section Steel
Main Steel Frame (Beam) Q235, Q345 Welded H Section Steel
Secondary Frame (Purlin) Q235 C and Z purlin
Knee Brace Q235 Angle Steel
Tie Rod Q235 Circular Steel Pipe
Brace Q235 Round Bar
Vertical/Horizontal Support Q235 Angle Steel, Round Bar or Steel Pipe
Roof Panel EPS Sandwich Panel / Glass Fiber Sandwich Panel / Rock Wool Sandwich Panel / PU Sandwich Panel / Steel Sheet
Wall Panel Sandwich Panel / Corrugated Steel Sheet
Performance Wind Resistance: 12 Grades
Earthquake-resistance: 8 Grades
Structure Usage: Up to 50 years
Temperature Range: -50°C to +50°C
Certifications CE, SGS, ISO9001:2008, ISO14001:2004
Our Manufacturing Facility

Our 35,000㎡ steel structure fabrication facility includes 20,000㎡ of workshop space equipped with:

  • Three light/heavy H steel production lines
  • BOX production lines
  • C/Z purlin production lines
  • Advanced profiling steel sheet machines
  • Plasma cutting equipment
Two Floors Steel Frame Warehouse Building with Rock Wool Insulation 0
Installation Process

We provide detailed construction drawings prior to installation and can dispatch engineers to guide the process or complete installation with our construction team.

Two Floors Steel Frame Warehouse Building with Rock Wool Insulation 1
Quotation Requirements

Please provide the following information for an accurate quote:

1 Location (country, area) _____
2 Size (length × width × height) _____mm × _____mm × _____mm
3 Wind load (max. wind speed) _____kn/m², _____km/h, _____m/s
4 Snow load (max. snow height) _____kn/m², _____mm
5 Earthquake resistance _____level
6 Brick wall requirements If yes: 1.2m high or 1.5m high
7 Thermal insulation EPS, fiberglass wool, rockwool, PU sandwich panels or metal steel sheets
8 Door specifications _____units, _____(width)mm × _____(height)mm
9 Window specifications _____units, _____(width)mm × _____(height)mm
10 Crane requirements If yes: _____units, max. lifting weight ____tons; max. lifting height _____m
