Product Details:
|
| Features: | Steel Structure Warehouse | Application: | Metal Storage Buildings, Prefab Structural Steel Frame Buildings, Metal Warehouse |
|---|---|---|---|
| Type: | Prefab Steel Buildings | Raw Steel Material: | Q235B, Q355B, ASTM A36 |
| Service Life: | 50 Years | Wall And Roof: | Glass Wool Sandwich Panel |
| Surface Treatment: | Painting | Working Scope: | Design,Fabrication, Installation |
| High Light: | steel structure building,metal warehouse construction,Painting Prefab Steel Building Warehouse |
||
Metal Storage Buildings Warehouse / Prefab Structural Steel Frame Buildings
Metal Storage Buildings Warehouse / Prefab Structural Steel Frame Buildings. Steel buildings are becoming more and more popular in the construction industry. It is widely used as commerical shop buildings, warehouse, workshop, storage buildings, logistics base. The advantages of steel buildings include their durability, low cost compared to conventional construction and the fact that they take much less time to build than do other types of new construction. Steel building prices can vary depending on a few different factors, one of the most important being the price of steel at the time.

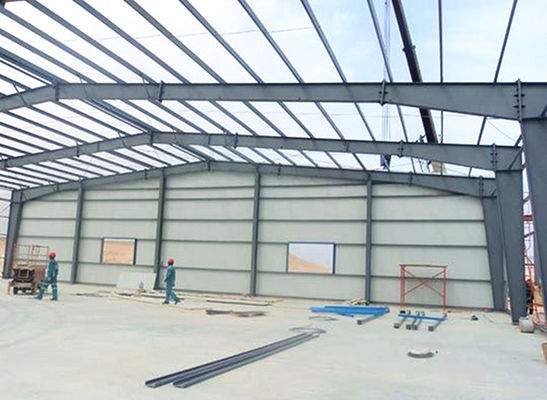

The main steel frame structure of steel buildings are welded H-section steel columns and beams that is connected by high strength bolts.All the steel structure compoents are welded in our factory with CNC machine. We could design it to be single span, double span, portal frame or truss roof.
Qingdao Ruly Steel Engineering Co.,Ltd is a professional steel structure fabrication and construction company for light and heavy steel structure Design, Manufacture & Installation.
| Name |
Metal Storage Buildings Warehouse / Prefab Structural Steel Frame Buildings |
| Structure Type | portal frame, single ridge, single span |
| Length | 150m |
| Width | 40m |
| Eave Height | 10m |
| Roof Slope | 10% |
| Gable Wall Column Spacing | 7.5m |
| Roof |
75 mm Glass wool sandwich panel
|
| Wall | 75mm Glass wool sandwich panel |
| Door | Sliding door |
| Window | Ribbon Skylight |
| Height difference between indoor and outdoor | 300mm |
| Steel Frame | H section steel | Q235/Q345 steel plate thickness: 8-30mm |
| Welding | Automatic submerged arc welding | |
| Rust removal | Sand blasting | |
| Surface finish | Alkyd paint or galvanized | |
| Intensive bolt | M20,Grade 10.9 | |
| Supporting System | Angle brace | L50x4,Steel Q235, processed and painted |
| Horizontal brace | Φ20, Steel Q235, processed and painted | |
| Column brance | Φ20, Steel Q235, processed and painted | |
| Tie rod | Φ89*3, Steel Q235, processed and painted | |
| Ordinary bolt | M12 Galvanized bolt | |
| Roof | Purlin | C160*60*2.5,Steel Q235, galvanized and painted |
| Roof panel | Sandwich panel or corrugated steel sheet | |
| Accessories | Glass cement, self-tapping screws, etc. | |
| Edge cover | 0.4mm steel sheet profile trimming | |
| Gutter | 0.4mm thick sheet steel profile or galvanized sheet | |
| Down pie | Φ110PVC | |
| Walls | Purlin | C160*60*2.5,Steel Q235, painted |
| Wall | Sandwich panel or corrugated steel plate | |
| Accessories | Glass cement, self-tapping screws, etc. | |
| Edge cover | 0.4mm steel sheet profile trimming |
We have three production lines for steel structure fabrication, in order to serve better for abroad project, we buy some advanced machine in our production line, such as the plasma cutting machine.
1. Structural steel fabrication, painting , galvanizing , pre-assembly
2. Designing, fabrication and installation for Prefabricated steel structure building.
3. Deepen or design the fabrication drawing or shop drawing based on your architectural drawing and construction drawing
4. Engineering consulting service
Structural steel fabrication quality control
100% testing dimension tolerance <1mm
20% sample welding line ultrasonic testing, no fault, full penetration.
20% magnetic powder testing, no bubble, no defect, Smooth and Full
Supply third-party inspection assistance.
