Product Details:
|
| Features: | Light Steel Frame Construction | Application: | Clear Span Steel Structure Warehouse |
|---|---|---|---|
| Type: | Steel Structure Warehouse | Raw Steel Material: | Q235B, Q355B |
| Surface Treatment: | Painting Or Hot-dip Galvanize | Wall And Roof: | Steel Cladding/Rock Wool/Glass Wool/EPS/PU Sandwich Panel |
| Columns And Beam: | H Section Column&Beam | Drawing: | CAD, TEKLA, 3D MODEL, PKPM,BIM |
| High Light: | steel structure building,metal warehouse construction,SGS Clear Span Steel Structure Warehouse |
||

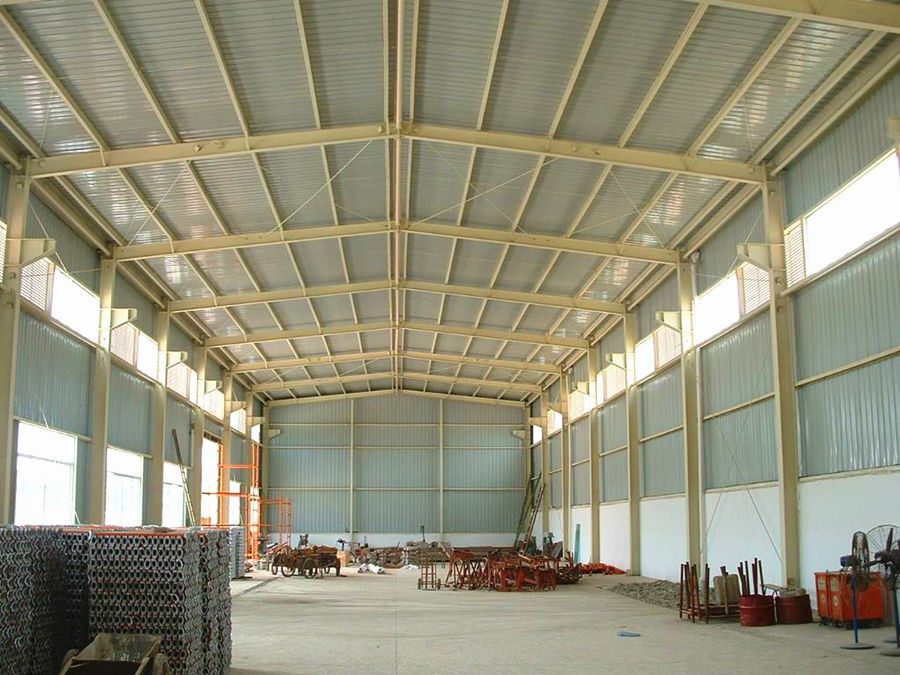

Clear Span Steel Buildings Light Steel Frame Construction Warehouse
Clear Span Steel Structure Warehouse Light Steel Frame Construction Warehouse. This is a Clear Span Steel Buildings Light Steel Frame Construction Warehouse. It is built to assemble and store hardwares. Light size H section steel beams and columns are connected by high strength bolts to be the steel frame structure. Clean span could provide large indoor space.
All components are prefabricated at our steel structure fabrication factory, and it is easy to install on site, which greatly shortens the construction period.
| Name |
Clear Span Steel Buildings Light Steel Frame Construction Warehouse |
| Structure Type | portal frame, single ridge, single span |
| Length | 60m |
| Width | 22.5m |
| Eave Height | 8m |
| Roof Slope | 10% |
| Gable Wall Column Spacing | 7.5m |
| Roof |
0.5mm thick steel galvanized board
|
| Wall |
0.5mm thick steel galvanized board+3m block wall |
| Door | Rolling door |
| Window | Ribbon Skylight |
| Item | Specification | |
| 1 | Main Columns & Beams | Q345B |
| 2 | Roof Purlins |
C200*70*20*2.5 Galvanize |
| 3 | Tie Bar | Φ114*4 |
| 4 | Pillar Supporters | Φ20 |
| 5 | Tie rod | Φ12,Φ32*2.5 |
| 6 | Kneebracing | L50*4 |
| 7 | Foundation bolt | M24 |
| 8 | General Bolts | C Grade |
| 9 | Bolt screw | Φ19 |
| 10 | High Strengthened Bolts | 10.9 Grade |
| 11 | Roof Panel | 0.5mm Galvanized Steel Plate |
| 12 | Ribbon skylight | 1.2mm FRP |
| 13 | Floor Steel deck | 1.00 mm steel plate |
| 14 | Doors | Sliding door |
| 15 | Windows | Steel windows |
| 16 | Gutters | 3mm thick galvanized steel |
| 17 | Edge and corner wrapping | 0.5mm Galvanized Steel Plate |
| 18 | Fans | |
| 19 | Accessories | |
| 20 | Down pipe | Φ140PVC |
| 1 | High strength and light weight | Although the density of steel is larger than that of other building materials, its strength is very high. Under the same force, the steel structure has a small weight and can be made into a structure with a large span. |
| 2 | Good plasticity and good toughness | The plasticity of the steel is good, and the structure will not suddenly break due to accidental overload or partial overload. The toughness of the steel is good, making the structure more adaptable to dynamic loads. |
| 3 | High degree of industrialization in production | The steel structure is mainly produced in a specialized metal structure factory, so the production is simple and the precision is high. |
| 4 | Simple construction and short construction period | All components are prefabricated at the factory, and the site is simply assembled, which greatly shortens the construction period. |
| 5 | Wind resistance and structural stability | Steel structure construction with light weight, high strength, good overall rigidity and strong deformation ability |
| 6 | Saving construction costs | The steel structure has light weight, reduces the basic cost, and has a fast construction speed. It can be completed and put into operation as soon as possible, and the comprehensive economic benefits are much better than the concrete structure. |
| 7 | Recyclable | Steel can be recycled, less environmentally polluted when constructed and removed |
The floor space of our steel structre fabrication factory is 35,000㎡, and the workshop area is 20000㎡. We own three light/heavy H steel production lines, BOX production lines, C/Z purlin production lines and various types of profiling steel sheet machines with advanced equipment such as plasma cutting machine.
1. Structural steel fabrication, painting , galvanizing , pre-assembly
2. Designing, fabrication and installation for Prefabricated steel structure building.
3. Deepen or design the fabrication drawing or shop drawing based on your architectural drawing and construction drawing
4. Engineering consulting service
All the structure components, panels,bolts and sort of accessories will bewell packed with standard package suitable ocean transportation and loaded into 40’HQ.
