Metal Garages Steel Structure Warehouse Steel Storage Buildings Workshop Sheds

Metal Garages Steel Structure Warehouse Steel Storage Buildings Workshop Sheds
Metal Garages Steel Structure Warehouse Steel Storage Buildings Workshop Sheds Metal Garages Steel Structure Warehouse Steel Storage Buildings Workshop Sheds

Large Image :  Metal Garages Steel Structure Warehouse Steel Storage Buildings Workshop Sheds

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV, ISO
Model Number: Ruly0163
Payment & Shipping Terms:
Minimum Order Quantity: 200 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000 Square Meter Per Month

Metal Garages Steel Structure Warehouse Steel Storage Buildings Workshop Sheds

Description
Features: Steel Structure Warehouse Application: Metal Garages, Steel Storage Buildings
Type: Light Steel Frame Structure Buildings Raw Steel Material: Q235B, Q355B
Surface Treatment: Painting Service Life: 50 Years
Wall And Roof: Steel Cladding Sheet Working Scope: Design,Fabrication, Installation
High Light:

metal warehouse construction

,

metal storage buildings



Metal Garages Steel Structure Warehouse Steel Storage Buildings Workshop Sheds



Project introduction:

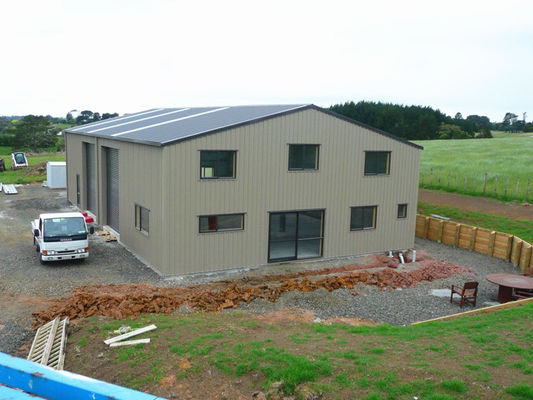

Metal Garages Steel Structure Warehouse Steel Storage Buildings Workshop Sheds. This is a Metal Garages / Metal Carports / Steel Storage Buildings / Workshop Sheds. This kind of metal sheds is widely used to store and maintain machinery, vehicle, and goods. The main framework could be H-section steel, steel square tube, truss steel. It also has the standard sizes such as 20m*10m, 20m*20m,30m*20m,40m*30m,



Steel frame structure buildings has the advantages of wide span, large inside space, high strength, light weight, low cost, short construction time, good effect of insulation, good seismic performance, flexible layout,etc. It could also be designed into lots types, such as gable type, arch roof, truss steel roof, with or without doors and windows, with or with cranes.



For such project, our service include design, fabrcication for all the steel structure in our factory, installation on site.



Basic information for such kind of metal sheds:



Name

Metal Garages Steel Structure Warehouse Steel Storage Buildings Workshop Sheds​

Structure Type

Gable frame, single ridge, clean span or two spans

Length Scope

10- 150m

Width Scope

10-80m

Eave Height Scope

4-20m

Roof Slope

10%

Gable Wall Column Spacing

7.5m

Roof

Sandwich panel or single layer steel cladding sheet

Wall

Sandwich panel or single layer steel cladding sheet

Door

Sliding door, roller door, lifting door.

Window

Fixed window, sliding window

Ventilator Unpower ventilator, electric ventilator, fans



Material list and technical parameters for such kind of steel buildings:



Main steel frame H-section steel   Q235B,Q345 steel 8mm to 20mm
Welding   Automatic Submerged Arc Welding
Rust removing   Sand blasting
surface processing   Alkyd Paint or galvanized
High strength bolt   Grade 10.9
Supporting system Angle brace   L50x4,Steel Q235,Process and painting
Cross bracing   dia.20 round bar,Steel Q235, process and painting
Tie bar   dia.89*3 round pipe,Steel Q235 Process and painting
Batter brace   dia.12 round bar,Steel Q235 process and painting
Ordinary bolt   Galvanized bolt
Roof Purlin   C160*60*2.5,steel Q235,Painting or galvanized
Out-roof panel   Sandwich panel or corrugated steel plate
Transparent skylight   6mm thick PVC
Accessories   Sealant,self-tapping screw, etc.
Edge cover   Made of color steel sheet thickness 0.5mm
Gutter   Made of steel sheet thickness 0.8mm, or PVC
Rinspout   dia.110 PVC
Wall Purlin   C160*60*2.5,steel Q235,paint
  Wall panel   Sandwich panel or corrugated steel plate
  Accessories   Sealant,self-tapping screw etc
  Edge cover   Made of color steel sheet thickness 0.5mm
Ventilator     unpowered axial-flow ventilator or monitor roof
Door & window     Rolling door/sliding door, PVC/alu. alloy window
Crane     With or without crane, ranging from 5 tons to 20 tons



Our steel structure fabrication factory:

We have three production lines for steel structure fabrication, in order to serve better for abroad project, we buy some advanced machine in our production line, such as the plasma cutting machine.

Metal Garages Steel Structure Warehouse Steel Storage Buildings Workshop Sheds 0



Our service:

1. Structural steel fabrication, painting , galvanizing , pre-assembly

2. Designing, fabrication and installation for Prefabricated steel structure building.

3. Deepen or design the fabrication drawing or shop drawing based on your architectural drawing and construction drawing

4. Engineering consulting service

Metal Garages Steel Structure Warehouse Steel Storage Buildings Workshop Sheds 1

Packing and transport:

All the structure components, panels,bolts and sort of accessories will be well packed with standard package suitable ocean transportation and loaded into 40’HQ.

All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers,who will prevent the goods to be damaged.

Metal Garages Steel Structure Warehouse Steel Storage Buildings Workshop Sheds 2
