Steel Frame Garage Workshop for Vehicle Maintenance Q235B Q355B

Steel Frame Garage Workshop for Vehicle Maintenance Q235B Q355B
Steel Frame Garage Workshop for Vehicle Maintenance Q235B Q355B
Steel Frame Garage Workshop for Vehicle Maintenance Q235B Q355B Steel Frame Garage Workshop for Vehicle Maintenance Q235B Q355B Steel Frame Garage Workshop for Vehicle Maintenance Q235B Q355B Steel Frame Garage Workshop for Vehicle Maintenance Q235B Q355B Steel Frame Garage Workshop for Vehicle Maintenance Q235B Q355B Steel Frame Garage Workshop for Vehicle Maintenance Q235B Q355B Steel Frame Garage Workshop for Vehicle Maintenance Q235B Q355B

Large Image :  Steel Frame Garage Workshop for Vehicle Maintenance Q235B Q355B

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV, ISO
Model Number: Ruly0159
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 20000 Square Meter Per Month
Contact Now

Steel Frame Garage Workshop for Vehicle Maintenance Q235B Q355B

Description
Raw Steel Material: Q235B, Q355B Surface Treatment: Painting
Shot Blasting Level: Sa 2.5 Service Life: 50 Years
Wall And Roof: Glass Wool Sandwich Panel Type: Steel Frame Structure Workshop
Working Scope: Design,Fabrication, Installation Application: Vehicle Maintenance, Auto Repair Shop
Highlight:

steel frame building

,

steel frame construction

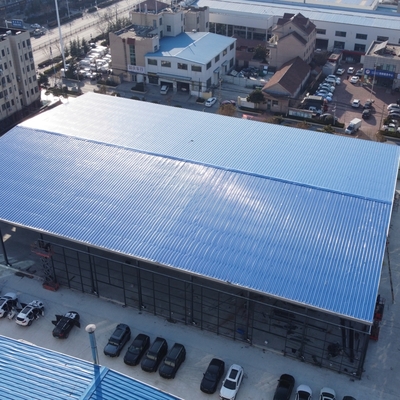

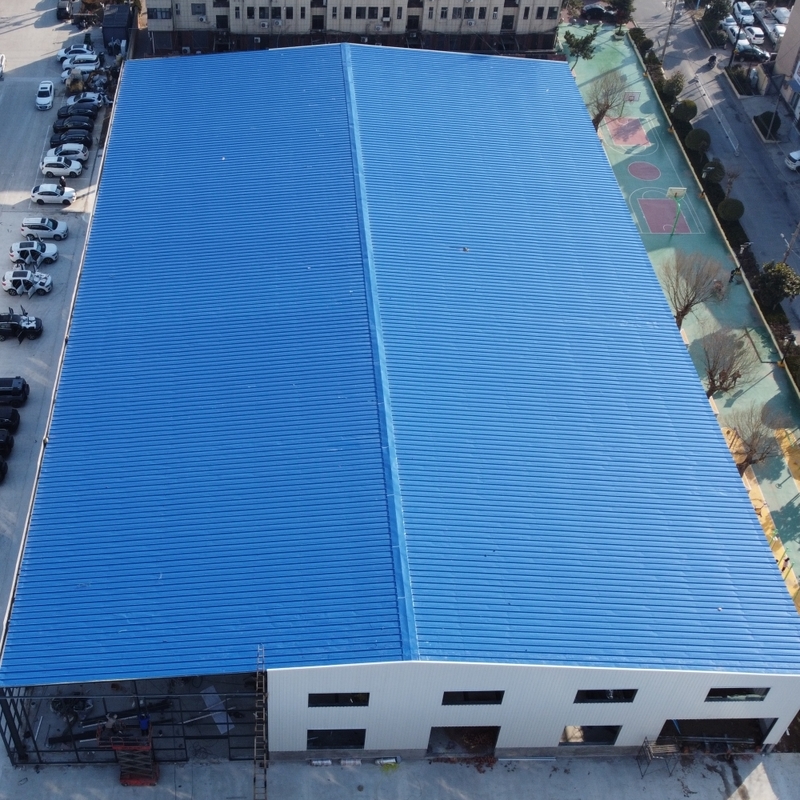

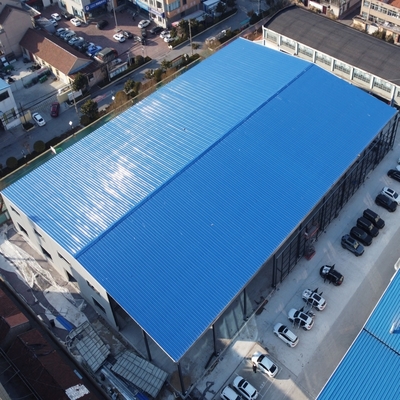

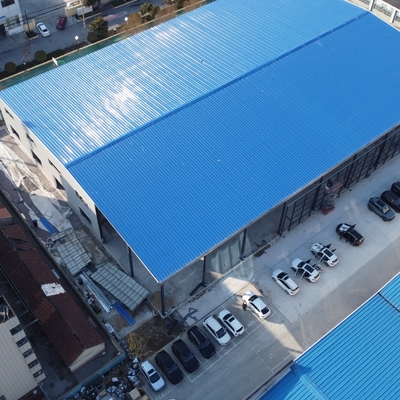

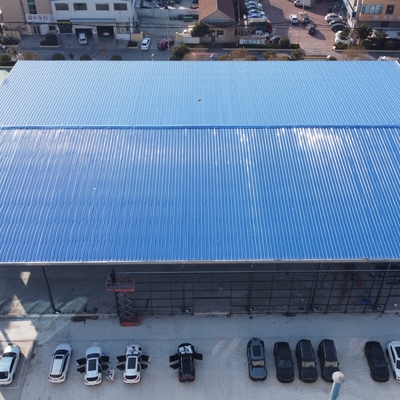

Large Metal Steel Structure Construction Garage Shop Buildings For Vehicle Maintenance
This large metal garage shop building features a steel frame structure with welded H-section steel columns and beams connected by high-strength bolts. The roof and wall insulation panels utilize glass wool sandwich panels, available in clean span or double span configurations with optional office and storage spaces.
The steel structure offers superior rigidity and seismic performance, with advantages including rapid construction, lightweight design, and high load-bearing capacity, making it ideal for modern industrial applications.
Key Specifications
Attribute Value
Raw steel material Q235B, Q355B
Surface treatment Painting
Shot blasting level Sa 2.5
Service life 50 Years
Wall and Roof Glass wool sandwich panel
Type Steel frame structure workshop
Working scope Design, Fabrication, Installation
Application Vehicle Maintenance, Auto Repair Shop
Building Dimensions
Parameter Specification
Structure Type Gable frame, single ridge, clean span or two spans
Length 40-150m
Width 20-80m
Eave Height 6-20m
Roof Slope 10%
Gable Wall Column Spacing 7.5m
Roof Material Glass wool sandwich panel
Wall Material Glass wool sandwich panel
Door Type Sliding door
Window Type Ribbon Skylight
Height difference (indoor/outdoor) 300mm
Material Specifications
Component Details
Main Frame H Steel beam, Q235/Q345 steel H beam and columns, painted or galvanized
Secondary Frame Galvanized C or Z purlin, steel bracing, tie bar, knee brace, flashing
Purlin C or Z purlin: Size from C120~C320, Z100~Z200
Surface Treatment Two layers of rust-proof painting or Hot Dip Galvanized
Finishing Options Various colors and textures available, alkyd painting, epoxy zinc, etc.
Production Capabilities
Our factory features three dedicated production lines with advanced equipment including plasma cutting machines for precision steel structure fabrication.
Steel Frame Garage Workshop for Vehicle Maintenance Q235B Q355B 0
Our Services
  • Structural steel fabrication, painting, galvanizing, and pre-assembly
  • Complete design, fabrication, and installation of prefabricated steel structures
  • Engineering drawing development based on architectural plans
  • Professional engineering consulting services
Steel Frame Garage Workshop for Vehicle Maintenance Q235B Q355B 1
Packing & Shipping
  • 20' Container: 5.69m x 2.34m x 2.18m, 17.5 ton capacity
  • 40' Container: 11.8m x 2.34m x 2.18m, 22 ton capacity
  • HC Container: 13.58m x 2.34m x 2.71m, 29 ton capacity
  • All steel components protected with blanket wrapping for safe transport
Steel Frame Garage Workshop for Vehicle Maintenance Q235B Q355B 2
