Steel Frame Workshop Building for Machinery Repair Shops

Steel Frame Workshop Building for Machinery Repair Shops
Steel Frame Workshop Building for Machinery Repair Shops
Steel Frame Workshop Building for Machinery Repair Shops Steel Frame Workshop Building for Machinery Repair Shops Steel Frame Workshop Building for Machinery Repair Shops Steel Frame Workshop Building for Machinery Repair Shops Steel Frame Workshop Building for Machinery Repair Shops Steel Frame Workshop Building for Machinery Repair Shops Steel Frame Workshop Building for Machinery Repair Shops

Large Image :  Steel Frame Workshop Building for Machinery Repair Shops

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV, ISO
Model Number: Ruly0158
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 20000 Square Meter Per Month
Contact Now

Steel Frame Workshop Building for Machinery Repair Shops

Description
Raw Steel Material: Q235B, Q355B Surface Treatment: Painting
Shot Blasting Level: Sa 2.5 Service Life: 50 Years
Wall And Roof: Glass Wool Sandwich Panel Type: Steel Frame Structure Workshop
Working Scope: Design,Fabrication, Installation Application: Car Maintenance Shop,Engineering Machinery Repair Shops
Highlight:

steel frame building

,

prefab metal buildings

Large Steel Frame Structure Metal Workshop Buildings For Engineering Machinery Repair Shops
Product Specifications
Raw steel material Q235B, Q355B
Surface treatment Painting
Shot blasting level Sa 2.5
Service life 50 Years
Wall and Roof Glass wool sandwich panel
Type Steel frame structure workshop
Working scope Design, Fabrication, Installation
Application Car Maintenance Shop, Engineering Machinery Repair Shops
Project Overview

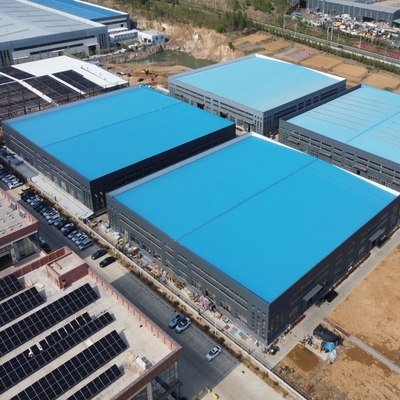

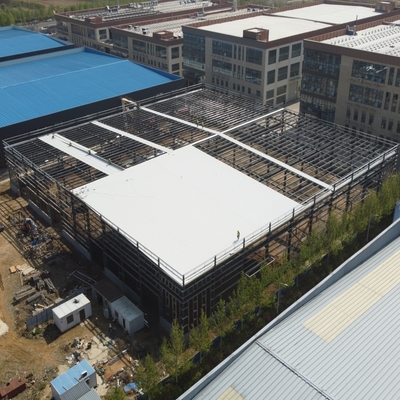

Prefabricated steel frame structure buildings are widely used for factories, warehouses, workshops, office buildings, and other commercial structures. The system consists of a main framework with H beams, columns, and purlins, combined with various panel systems for walls and roofs. These structures offer numerous advantages including wide spans, large interior spaces, high strength-to-weight ratio, cost efficiency, quick construction, excellent insulation, seismic resistance, and flexible layouts.

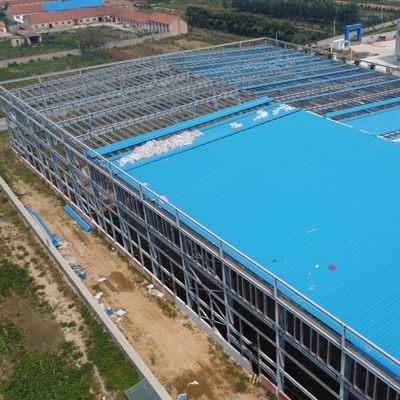

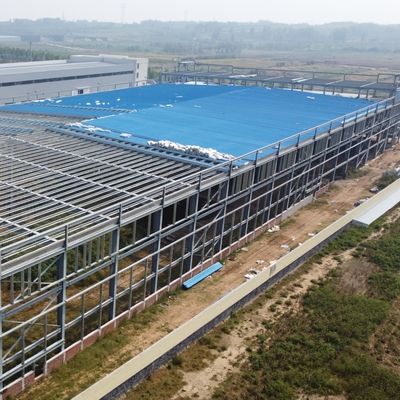

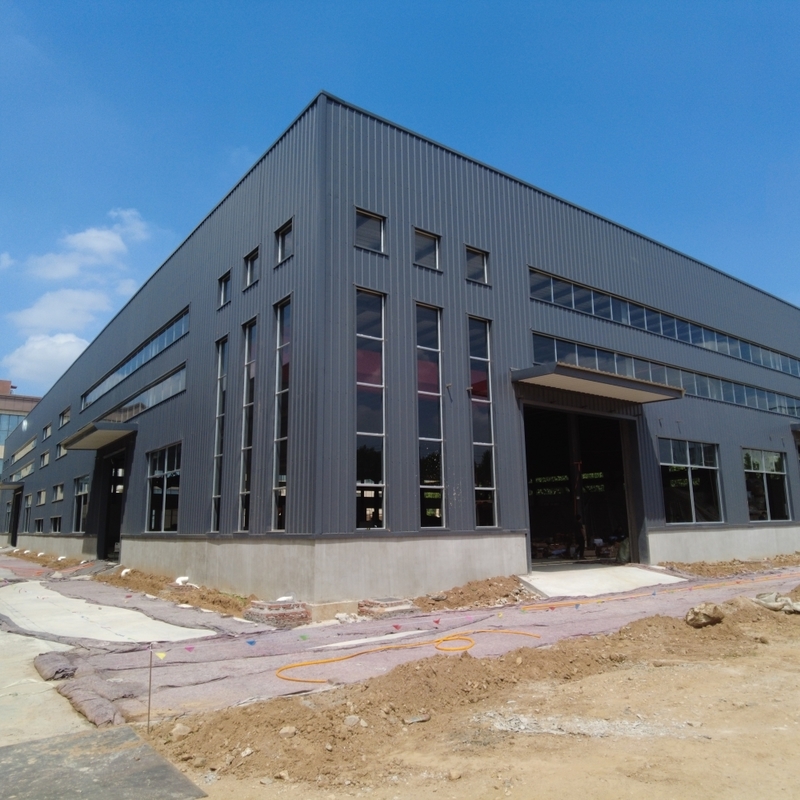

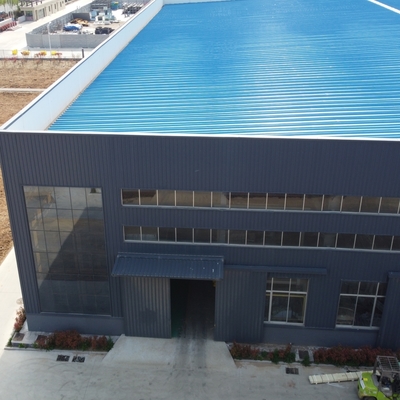

This large steel frame workshop is specifically designed for engineering machinery repair shops. The structure features welded H-section steel columns and beams connected with high-strength bolts, with glass wool sandwich panels providing insulation for walls and roofs. Available in clean span or double span configurations, it can include integrated office and storage spaces.
Technical Specifications
Structure Type Gable frame, single ridge, clean span or two spans
Length 40-150m
Width 20-80m
Eave Height 6-20m
Roof Slope 10%
Gable Wall Column Spacing 7.5m
Roof Material Glass wool sandwich panel
Wall Material Glass wool sandwich panel
Door Type Sliding door
Window Type Ribbon Skylight
Height difference (indoor/outdoor) 300mm
Material Specifications
No. Item Details
1 Material Carbon structural steel
2 Production Lead Time Normally 45 days after down payment (varies by quantity)
3 Quality Certification Factory quality certificate, third-party inspection available
4-8 Dimensions H beam: 4000-15000mm
Web plate: 6-32mm
Wing plate: 6-40mm
Height: 200-1200mm
Color: Customizable
9 Size MOQ: 1000 m² (custom width × length × eave height)
10-24 Components Base: Cement and steel foundation bolts
Main frame: H Steel beams/columns (Q235/Q345), painted or galvanized
Secondary frame: Galvanized C/Z purlins, bracing, tie bars
Roof & wall: PU/Rockwool sandwich panels or corrugated sheets
Surface treatment: Two-layer rust-proof paint or hot-dip galvanizing
Accessories: Skylights, ventilators, gutters, flashing, etc.
Production Capabilities
Our facility features three dedicated production lines equipped with advanced machinery including plasma cutting systems. We maintain strict quality control with:
  • Dimensional tolerance <1mm
  • 20% ultrasonic welding inspection (full penetration, no faults)
  • 20% magnetic powder testing (no bubbles/defects)
  • Third-party inspection welcome
Steel Frame Workshop Building for Machinery Repair Shops 0 Steel Frame Workshop Building for Machinery Repair Shops 1
Our Services
  • Structural steel fabrication, painting, galvanizing, pre-assembly
  • Complete design, fabrication, and installation of prefabricated buildings
  • Shop drawing development from architectural plans
  • Engineering consulting services
Steel Frame Workshop Building for Machinery Repair Shops 2
