Product Details:
|
| Features: | Metal Shed | Application: | Farm Fodder Storage, Open Bay Hay Sheds |
|---|---|---|---|
| Type: | Light Steel Structure Buildings | Raw Steel Material: | Q235B, Q355B, ASTM A36 |
| Service Life: | 50 Years | Wall And Roof: | Glass Wool |
| Surface Treatment: | Painting | Working Scope: | Design,Fabrication, Installation |
| High Light: | steel structure building,metal warehouse construction |
||

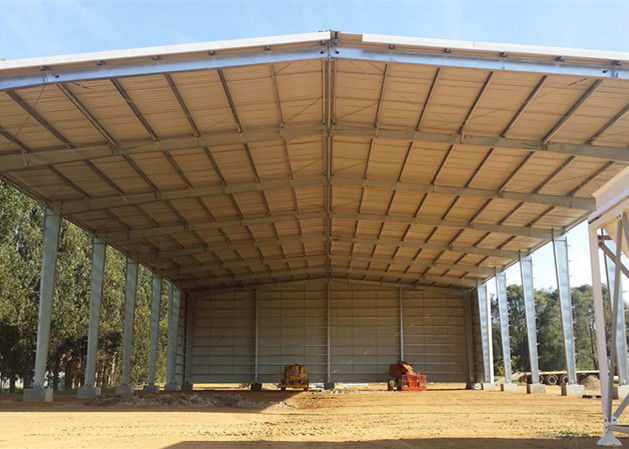

Metal Farm Fodder Storage / Open Bay Hay Sheds / Light Steel Structure Buildings
Metal Farm Fodder storage Open Bay Hay Sheds / Light Steel Structure Buildings. This kind of Metal Farm Fodder Storage / Open Bay Hay Sheds / Light Steel Structure Buildings is a widely used way to store hay and other farm goods on farm.
Light steel structure hay sheds has advantages including easy to install, cost saving, large structure stablity, large inside space, and cyclic utilization. It is usually consisted by light steel structure components such as H-section steel beams&columns, square tube beams&columns, truss roof beams, doulbe-purlins beams. We could design and fabricate it following your request.
| Steel Frame | H section steel | Q235/Q345 steel 8mm/10mm |
| Welding | Automatic submerged arc welding | |
| Rust removal | Sand blasting | |
| Surface finish | Alkyd paint or galvanized | |
| Intensive bolt | M20,Grade 10.9 | |
| Supporting System | Angle brace | L50x4,Steel Q235, processed and painted |
| Horizontal brace | Φ20, Steel Q235, processed and painted | |
| Column brance | Φ20, Steel Q235, processed and painted | |
| Tie rod | Φ89*3, Steel Q235, processed and painted | |
| Ordinary bolt | M12 Galvanized bolt | |
| Roof | Purlin | C160*60*2.5,Steel Q235, galvanized and painted |
| Roof panel | Sandwich panel or corrugated steel sheet | |
| Accessories | Glass cement, self-tapping screws, etc. | |
| Edge cover | 0.4mm steel sheet profile trimming | |
| Gutter | 0.4mm thick sheet steel profile or galvanized sheet | |
| Down pie | Φ110PVC | |
| Walls | Purlin | C160*60*2.5,Steel Q235, painted |
| Wall | Sandwich panel or corrugated steel plate | |
| Accessories | Glass cement, self-tapping screws, etc. | |
| Edge cover | 0.4mm steel sheet profile trimming |
The floor space of our steel structre fabrication factory is 35,000㎡, and the workshop area is 20000㎡. We own three light/heavy H steel production lines, BOX production lines, C/Z purlin production lines and various types of profiling steel sheet machines with advanced equipment such as plasma cutting machine.
We can design and fabricate customized steel structure components for light and heavy steel structure buildings in protal frame and dome frame, such as warehouse, workshop, storage, hangar, chicken shed, steel shed for market and ground parking, supermarket , high rise steel office buiding, factory , plant, exhibition hall, gym, dormitory building, oli&gas, power station, infrastructure buildings, etc.
All the structure components, panels,bolts and sort of accessories will bewell packed with standard package suitable ocean transportation and loaded into 40’HQ.
All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers,who will prevent the goods to be damaged.
The following question we need to know before making the price. Just feel free to fill what you know.
| 1 | Location (where will be built?) | _____country, area |
| 2 | Size: length*width*height | _____mm*_____mm*_____mm |
| 3 | wind load (max. wind speed) | _____kn/m2, _____km/h, _____m/s |
| 4 | snow load (max. snow height) | _____kn/m2, _____mm |
| 5 | anti-earthquake | _____level |
| 6 | brickwall needed or not | If yes, 1.2m high or 1.5m high |
| 7 | thermal insulation | If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; . if not, the metal steel sheets will be ok. The cost of the latter will be much lower than that of the former |
| 8 | door quantity & size | _____units, _____(width)mm*_____(height)mm |
| 9 | window quanity & size | _____units, _____(width)mm*_____(height)mm |
| 10 | crane needed or not | If yes, _____units, max. lifting weight____tons; max. lifting height _____m |
