Product Details:
|
| Features: | Metal Warehouse Buildings | Application: | Open Sides Garage, Metal Warehouse Buildings,Metal Sheds Design |
|---|---|---|---|
| Type: | Light Steel Structure Buildings | Raw Steel Material: | Q235B, Q355B |
| Surface Treatment: | Painting | Service Life: | 50 Years |
| Wall And Roof: | Sandwich Panel | Working Scope: | Design,Fabrication, Installation |
| Highlight: | steel structure building,metal warehouse construction |
||
Open Sides Garage Metal Warehouse Buildings Construction Metal Sheds Design

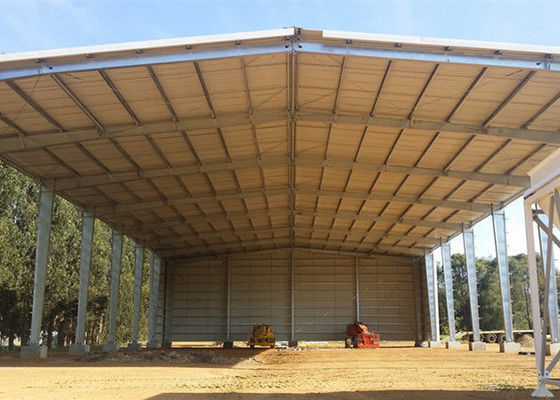

Open Sides Garage Metal Warehouse Buildings Construction Metal Sheds Design . Construction vehicles will park in this garage. Light type welded H section steel beams and columns are connected to be the main frame. To provide large inside space, we also dont set center column.
Such kind of light steel frame structure garage or sheds are easy to install. We could design it as your request and then fabricate all the steel components in our factory. As it is connected by high strenght bolts, it could also be disassemblyed and then installed at another place.
We can design and fabricate customized steel structure components for light and heavy steel structure buildings in protal frame and dome frame, such as warehouse, workshop, storage, hangar, chicken shed, steel shed for market and ground parking, supermarket , high rise steel office buiding, factory , plant, exhibition hall, gym, dormitory building, oli&gas, power station, infrastructure buildings, etc.
| No. | Item | Details of steel structure building or steel frame | |
| 1 | Material | Material | carbon structural steel |
| 2 | Produce | Lead time | Normallly 45days after down payment, also according to quantity. |
| 3 | Quality | Certification | Quality certificate from factory, the third party by client request. |
| 4 | Dimensions | Length | H beam: 4000-15000mm |
| 5 | Thickness: | web plate: 6-32mm | |
| 6 | wing plate: 6-40mm | ||
| 7 | Height | 200-1200mm | |
| 8 | Color | According to customers | |
| 9 | Size | MOQ is 1000 m2, width * length * eave height, | |
| 10 | Main components | Base | Cement and steel foundation bolts |
| 11 | Main frame | H Steel beam, Q235 Q345 steel H beam and columns, painted or galvanized, box steel, galvanized C section or steel pipe | |
| 12 | Secondary frame : | galvanized C or Z purlin , steel bracing , tie bar , knee brace ,flashing etc. | |
| 13 | Material | Q235B, Q345B or others as buyers' requests, like: ASTM, BSEN, DIN, IPE,AISI,JIS, | |
| 14 | Purlin | C or Z purlin: Size from C120~C320, Z100~Z20 | |
| 15 | Column | X-type, tree type ,lattice, Cross, Box etc. | |
| 16 | Bolt | Plain bolt and High-strength bolt | |
| 17 | Roof & wall | PU sandwich panel, Rockwool sandwich panel or Corrugated steel sheet | |
| 18 | Canopy | steel sheet, PU sandwich panel, Rockwool sandwich panel | |
| 19 | Door | Sliding or rolling door | |
| 20 | Window | Aluminium alloy window | |
| 21 | Surface | Two lays of rust-proof painting or Hot Dip Galvanized | |
| 22 | Sheet | 0.5mm or 0.6mm galvanized sheet | |
| 23 | Accessories | Semi-transparent skylight belts, Ventilators,down pipe, Galvanized gutter, Trim, flashing, etc | |
| 24 | Finishing options | Vast array of colors and textures available, Alkyd painting, two primary painting, two finish painting (gray paint, red paint, white paint, epoxy zinc etc.). Or Galvanized. | |
| 25 | Usages | 1. Steel workshop, steel warehouse, steel structure plant | |
| 26 | 2. Steel web frame structure | ||
| 27 | 3. Steel H-column and steel H-beam | ||
| 28 | 4. Portal frame products | ||
| 29 | 5. High rise building project | ||
| 30 | 6. Others steel structure buildings | ||
The floor space of our steel structre fabrication factory is 35,000㎡, and the workshop area is 20000㎡. We own three light/heavy H steel production lines, BOX production lines, C/Z purlin production lines and various types of profiling steel sheet machines with advanced equipment such as plasma cutting machine.
1. Structural steel fabrication, painting , galvanizing , pre-assembly
2. Designing, fabrication and installation for Prefabricated steel structure building.
3. Deepen or design the fabrication drawing or shop drawing based on your architectural drawing and construction drawing
4. Engineering consulting service
All the structure components, panels,bolts and sort of accessories will bewell packed with standard package suitable ocean transportation and loaded into 40’HQ.
All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers,who will prevent the goods to be damaged.
The following question we need to know before making the price. Just feel free to fill what you know.
| 1 | Location (where will be built?) | _____country, area |
| 2 | Size: length*width*height | _____mm*_____mm*_____mm |
| 3 | wind load (max. wind speed) | _____kn/m2, _____km/h, _____m/s |
| 4 | snow load (max. snow height) | _____kn/m2, _____mm |
| 5 | anti-earthquake | _____level |
| 6 | brickwall needed or not | If yes, 1.2m high or 1.5m high |
| 7 | thermal insulation | If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; . if not, the metal steel sheets will be ok. The cost of the latter will be much lower than that of the former |
| 8 | door quantity & size | _____units, _____(width)mm*_____(height)mm |
| 9 | window quanity & size | _____units, _____(width)mm*_____(height)mm |
| 10 | crane needed or not | If yes, _____units, max. lifting weight____tons; max. lifting height _____m |
