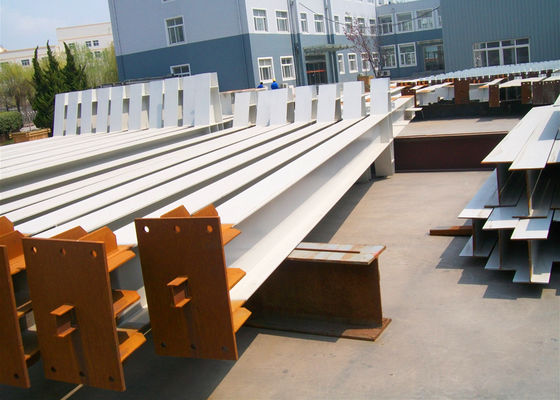

Factory Directly Prefabricated Steel Structure Material For Warehouse Buildings

Factory Directly Prefabricated Steel Structure Material For Warehouse Buildings
Factory Directly Prefabricated Steel Structure Material For Warehouse Buildings Factory Directly Prefabricated Steel Structure Material For Warehouse Buildings Factory Directly Prefabricated Steel Structure Material For Warehouse Buildings

Large Image :  Factory Directly Prefabricated Steel Structure Material For Warehouse Buildings

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV, ISO
Model Number: Ruly0110
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000 Square Meter Per Month

Factory Directly Prefabricated Steel Structure Material For Warehouse Buildings

Description
Features: Prefab Steel Buildings Application: Factory Directly Prefabricated Steel Structure Material
Type: Steel Structure Material For Warehouse Buildings Raw Steel Material: Q235B, Q355B
Surface Treatment: Painting Service Life: 50 Years
Wall And Roof: Glass Wool Working Scope: Design,Fabrication, Installation
High Light:

steel structure building

,

metal storage buildings



Factory Directly Prefabricated Steel Structure Material For Warehouse Buildings



General information:



Factory Directly Prefabricated Steel Structure Material For Warehouse Buildings. We are a professional steel structure fabrication and construction company for light and heavy steel structure Design, Manufacture & Installation.We can design and fabricate customized steel structure components for light and heavy steel structure buildings in protal frame and dome frame, such as warehouse, workshop, storage, hangar, chicken shed, steel shed for market and ground parking, supermarket , high rise steel office buiding, factory , plant, exhibition hall, gym, dormitory building, oli&gas, power station, infrastructure buildings, etc.



Project information for Factory Directly Prefabricated Steel Structure Material For Warehouse Buildings:



Name

Prefabricated Light Steel Structure Warehouse Building

Structure Type Portal frame, single ridge, two slopes, double spans
Length 90 m
Width 60m
Eave Height 10m
Roof Slope 10%
Gable Wall Column Spacing 7.5m
Roof

steel cladding sheet, sandwich panel

Wall steel cladding sheet, sandwich panel
Door Sliding door
Window Ribbon Skylight
Height difference between indoor and outdoor 300mm



Material list and technical parameters:



No. Item Details of steel structure building or steel frame
1 Material Material carbon structural steel
2 Produce Lead time Normallly 45days after down payment, also according to quantity.
3 Quality Certification Quality certificate from factory, the third party by client request.
4 Dimensions Length H beam: 4000-15000mm
5 Thickness: web plate: 6-32mm
6 wing plate: 6-40mm
7 Height 200-1200mm
8 Color According to customers
9 Size MOQ is 1000 m2, width * length * eave height,
10 Main components Base Cement and steel foundation bolts
11 Main frame H Steel beam, Q235 Q345 steel H beam and columns, painted or galvanized, box steel, galvanized C section or steel pipe
12 Secondary frame : galvanized C or Z purlin , steel bracing , tie bar , knee brace ,flashing etc.
13 Material Q235B, Q345B or others as buyers' requests, like: ASTM, BSEN, DIN, IPE,AISI,JIS,
14 Purlin C or Z purlin: Size from C120~C320, Z100~Z20
15 Column X-type, tree type ,lattice, Cross, Box etc.
16 Bolt Plain bolt and High-strength bolt
17 Roof & wall PU sandwich panel, Rockwool sandwich panel or Corrugated steel sheet
18 Canopy steel sheet, PU sandwich panel, Rockwool sandwich panel
19 Door Sliding or rolling door
20 Window Aluminium alloy window
21 Surface Two lays of rust-proof painting or Hot Dip Galvanized
22 Sheet 0.5mm or 0.6mm galvanized sheet
23 Accessories Semi-transparent skylight belts, Ventilators,down pipe, Galvanized gutter, Trim, flashing, etc
24 Finishing options Vast array of colors and textures available, Alkyd painting, two primary painting, two finish painting (gray paint, red paint, white paint, epoxy zinc etc.). Or Galvanized.
25 Usages 1. Steel workshop, steel warehouse, steel structure plant
26 2. Steel web frame structure
27 3. Steel H-column and steel H-beam
28 4. Portal frame products
29 5. High rise building project
30 6. Others steel structure buildings



Our steel structure production line:

The floor space of our steel structre fabrication factory is 35,000㎡, and the workshop area is 20000㎡. We own three light/heavy H steel production lines, BOX production lines, C/Z purlin production lines and various types of profiling steel sheet machines with advanced equipment such as plasma cutting machine.

Factory Directly Prefabricated Steel Structure Material For Warehouse Buildings 0



Structural steel fabrication quality control:

100% testing dimension tolerance <1mm
20% sample welding line ultrasonic testing, no fault, full penetration.
20% magnetic powder testing, no bubble, no defect, Smooth and Full
Supply third-party inspection assistance.
Factory Directly Prefabricated Steel Structure Material For Warehouse Buildings 1

Packing and transport:

All the structure components, panels,bolts and sort of accessories will bewell packed with standard package suitable ocean transportation and loaded into 40’HQ.

All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers,who will prevent the goods to be damaged.

Factory Directly Prefabricated Steel Structure Material For Warehouse Buildings 2

How to quote:

The following question we need to know before making the price. Just feel free to fill what you know.

1 Location (where will be built?) _____country, area
2 Size: length*width*height _____mm*_____mm*_____mm
3 wind load (max. wind speed) _____kn/m2, _____km/h, _____m/s
4 snow load (max. snow height) _____kn/m2, _____mm
5 anti-earthquake _____level
6 brickwall needed or not If yes, 1.2m high or 1.5m high
7 thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; . if not, the metal steel sheets will be ok. The cost of the latter will be much
lower than that of the former
8 door quantity & size _____units, _____(width)mm*_____(height)mm
9 window quanity & size _____units, _____(width)mm*_____(height)mm
10 crane needed or not If yes, _____units, max. lifting weight____tons; max. lifting height _____m
