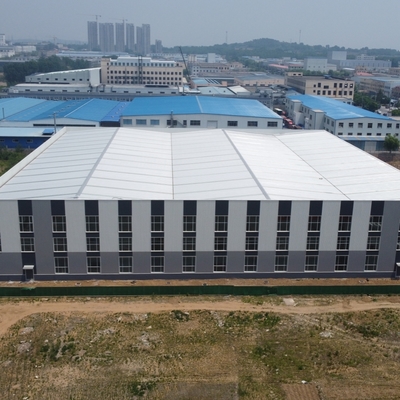

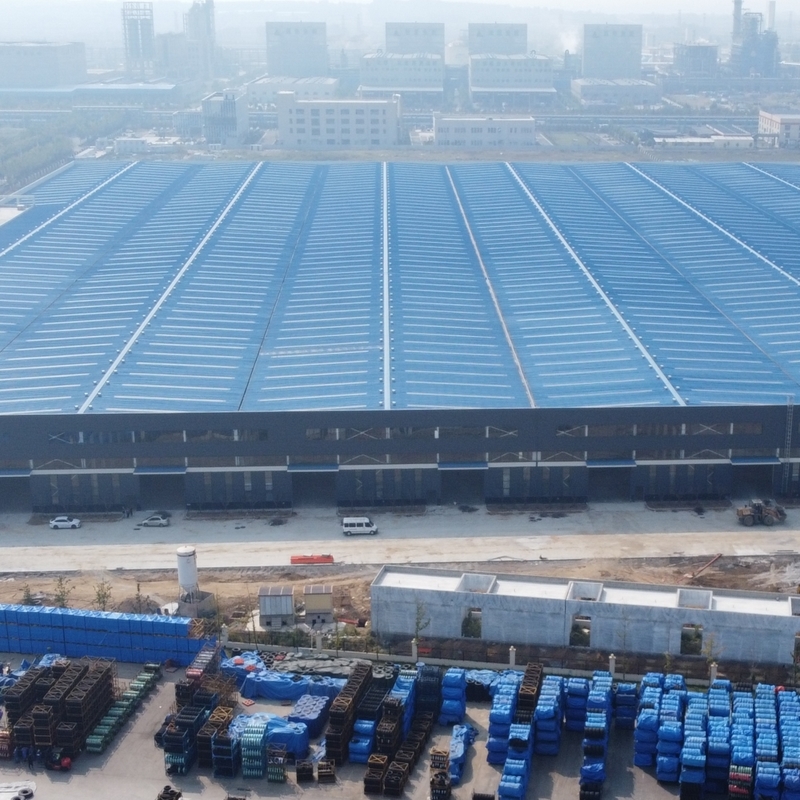

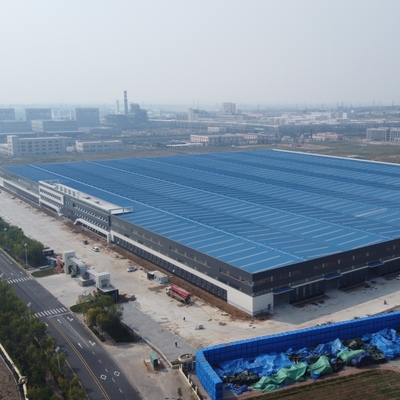

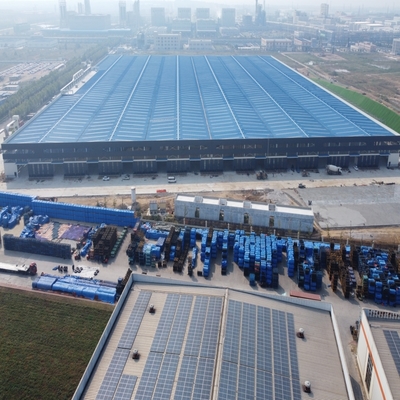

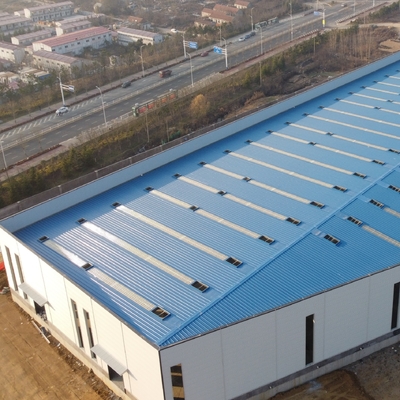

Large Span Steel Warehouse Building Contractor for Logistics

Large Span Steel Warehouse Building Contractor for Logistics
Large Span Steel Warehouse Building Contractor for Logistics
Large Span Steel Warehouse Building Contractor for Logistics Large Span Steel Warehouse Building Contractor for Logistics Large Span Steel Warehouse Building Contractor for Logistics Large Span Steel Warehouse Building Contractor for Logistics Large Span Steel Warehouse Building Contractor for Logistics Large Span Steel Warehouse Building Contractor for Logistics Large Span Steel Warehouse Building Contractor for Logistics

Large Image :  Large Span Steel Warehouse Building Contractor for Logistics

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV, ISO
Model Number: Ruly0095
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 20000 Square Meter Per Month
Contact Now

Large Span Steel Warehouse Building Contractor for Logistics

Description
Features: Large Span Steel Structure Construction Application: Logistics Steel Warehouse Buildings Contractor
Type: Portal Frame Steel Warehouse Working Scope: Design,Fabrication, Installation
Raw Steel Material: Q235B, Q355B Surface Treatment: Painting
Service Life: 50 Years Wall And Roof: Sandwich Panel
Highlight:

steel frame building

,

steel frame construction

Logistics Steel Warehouse Buildings Contractor / Large Span Steel Structure Construction
Product Specifications
Attribute Value
Application Logistics Steel Warehouse Buildings Contractor
Features Large Span Steel Structure Construction
Type Portal frame steel warehouse
Working scope Design, Fabrication, Installation
Raw steel material Q235B, Q355B
Surface treatment Painting
Service life 50 Years
Wall and Roof Sandwich panel
Advantages of Large Span Steel Frame Structure
  • High-opening interior space: No less than 9 meters of net height, meeting the layout of 5 shelves; 12m x 28m column spacing provides flexibility in warehouse arrangement.
  • Convenient unloading facilities: 1.3m high, 4.5m wide special unloading area; electric lift doors and automatic unloading platform improve cargo handling efficiency; 6.5m wide canopy ensures loading in rainy conditions.
  • Comfortable working environment: Natural lighting belt saves energy; roof ventilator improves air circulation; corundum wear-resistant ground ensures level surface for high-rise shelves.
Material List and Technical Parameters
Items Specification
Main Steel Frame (Column) Q235, Q345 Welded H Section Steel
Main Steel Frame (Beam) Q235, Q345 Welded H Section Steel
Secondary Frame (Purlin) Q235 C and Z purlin
Secondary Frame (Knee brace) Q235 Angle Steel
Secondary Frame (Tie Rod) Q235 Circular Steel Pipe
Secondary Frame (Brace) Q235 Round Bar
Vertical and Horizontal Support Q235 Angle Steel, Round Bar or Steel Pipe
Maintenance System (Roof Panel) EPS Sandwich Panel / Glass Fiber Sandwich Panel / Rock Wool Sandwich Panel / PU Sandwich Panel / Steel Sheet
Maintenance System (Wall Panel) Sandwich Panel / Corrugated Steel Sheet
Accessories (Window) Aluminium Alloy Window / PVC Window / Sandwich Panel Window
Accessories (Door) Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door
Accessories (Rainspout) PVC
Live Load on Roof 120kg/m² (Color steel panel surrounded)
Wind Resistance Grade 12 Grades
Earthquake-resistance 8 Grades
Structure Usage Up to 50 years
Temperature Range -50°C to +50°C
Certification CE, SGS, ISO9001:2008, ISO14001:2004
Finishing Options Vast array of colors and textures available
Paint Options Alkyd painting, two primary painting, two finish painting (gray paint, red paint, white paint, epoxy zinc etc.) Or Galvanized
Our Steel Structure Production Line
Large Span Steel Warehouse Building Contractor for Logistics 0
Installation Process

We provide construction drawings for each project before installation. Our engineers can guide installation on site or our construction team can handle the complete installation process.

Large Span Steel Warehouse Building Contractor for Logistics 1
Packing and Transportation

All structure components, panels, bolts and accessories are packed with standard ocean transportation packaging and loaded into 40'HQ containers. Our skilled workers use cranes and forklifts to load products at our factory, ensuring no damage during transportation.

Large Span Steel Warehouse Building Contractor for Logistics 2
Request a Quote

Please provide the following information for an accurate quote:

Question Your Information
Location (where will be built?) _____country, area
Size: length*width*height _____mm*_____mm*_____mm
Wind load (max. wind speed) _____kn/m², _____km/h, _____m/s
Snow load (max. snow height) _____kn/m², _____mm
Anti-earthquake _____level
Brickwall needed or not If yes, 1.2m high or 1.5m high
Thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; if not, metal steel sheets will be used at lower cost
Door quantity & size _____units, _____(width)mm*_____(height)mm
Window quantity & size _____units, _____(width)mm*_____(height)mm
Crane needed or not If yes, _____units, max. lifting weight____tons; max. lifting height _____m
