Industrial Steel Structure Building with Hot-Dip Galvanized Frame

Large Image : Industrial Steel Structure Building with Hot-Dip Galvanized Frame

Product Details:

Place of Origin:	China
Brand Name:	Ruly Steel
Certification:	SGS, BV,ISO
Model Number:	Ruly0081

Payment & Shipping Terms:

Minimum Order Quantity:	500 Square meters
Price:	USD25-USD95 Per Square meter
Packaging Details:	As request
Delivery Time:	30 Days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	2000 Ton Per Month

Contact Now

Industrial Steel Structure Building with Hot-Dip Galvanized Frame

Description

Features:	Agricultural Metal Frame Structures	Application:	Industrial Steel Structure Construction
Raw Steel Material:	Q235B, Q355B, ASTM A36,	Surface Treatment:	Hot-dip Galvanized
Service Life:	50 Years	Wall And Roof:	Glass Wool Sandwich Panel
Columns And Beam:	H Section Column&Beam, Latticed Column	Service:	Design,Fabrication, Installation
Highlight:	prefab metal buildings , steel frame construction

Industrial Steel Structure Construction / Agricultural Metal Frame Structures

Steel frame structure buildings are a modern building system formed by linking H beams, columns, and purlins with various panels, windows, and doors. Known for their rigidity, seismic performance, fast construction, light weight, and high load capacity, these structures are ideal for large-span workshops, warehouses, stadiums, stations, and airports.

Product Specifications

Attribute	Value
Application	Industrial Steel Structure Construction
Features	Agricultural Metal Frame Structures
Raw steel material	Q235B, Q355B, ASTM A36
Surface treatment	Hot-dip Galvanized
Service life	50 Years
Wall and Roof	Glass wool sandwich panel
Columns and Beam	H Section Column & Beam, Latticed column
Service	Design, Fabrication, Installation

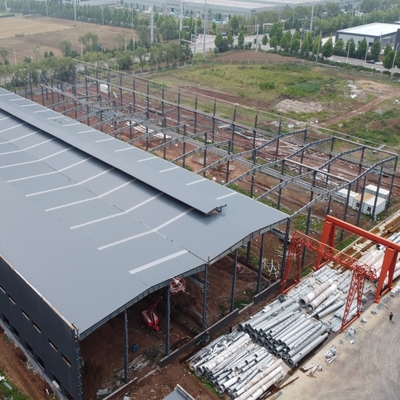

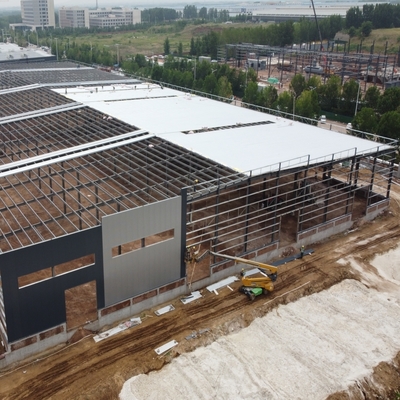

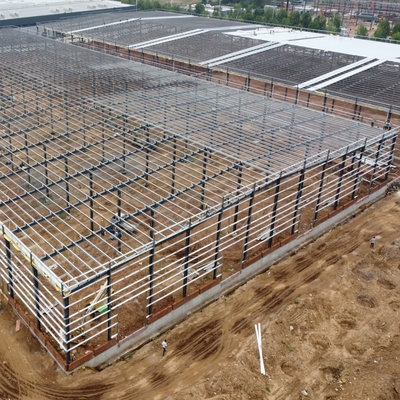

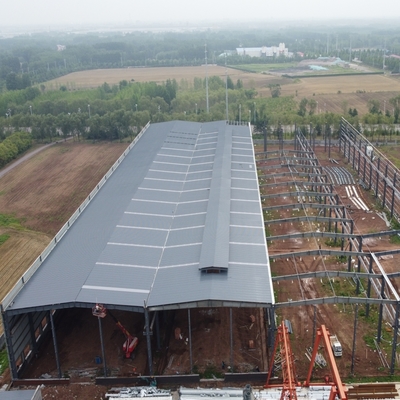

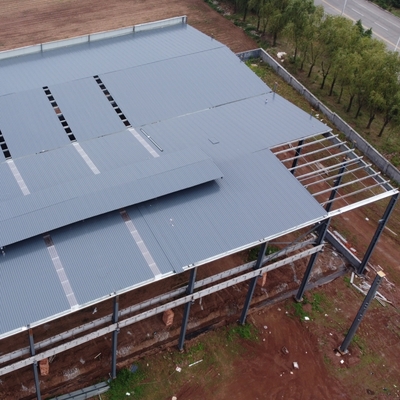

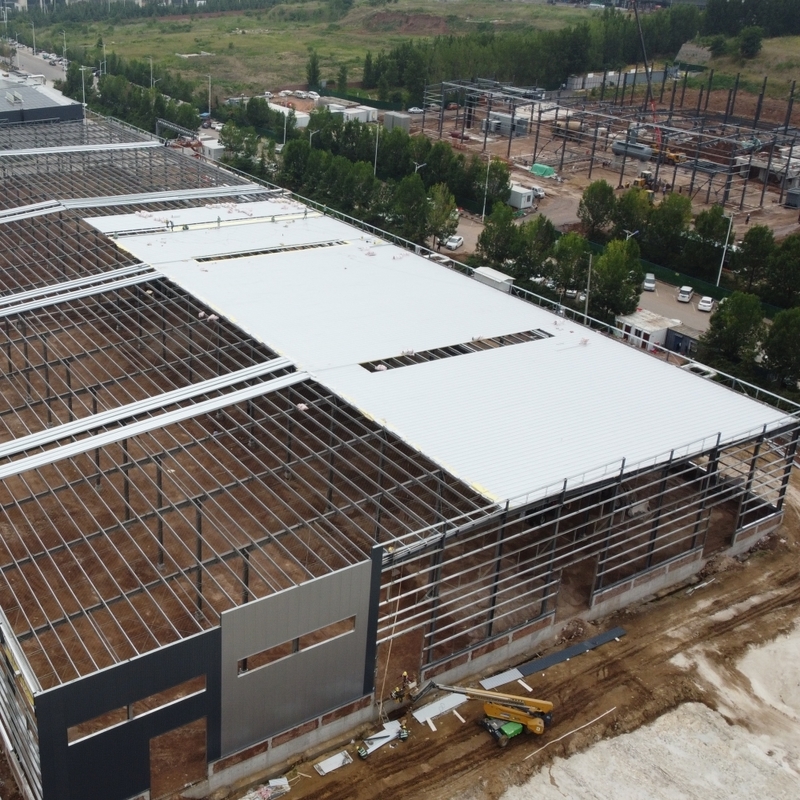

Project Information

Name	Industrial Steel Structure Construction / Agricultural Metal Frame Structures
Structure Type	Steel frame structure
Length	90m
Width	30m*6
Eave Height	12m
Span	40m
Steel structure quantity	600 Ton
Steel Beam	H-section steel
Roof & Wall sandwich panel	0.5mm steel cladding sheet
Door	Sliding door
Window	Ribbon Skylight

Technical Parameters

No.	Item	Details
1	Material	Carbon structural steel
2	Produce Lead time	Normally 45 days after down payment (varies by quantity)
3	Quality Certification	Factory quality certificate, third-party inspection available upon request
4-8	Dimensions	Length: 4000-15000mm Thickness: web plate 6-32mm, wing plate 6-40mm Height: 200-1200mm
9	Size	MOQ 1000 m² (width × length × eave height)
10-24	Components & Finishing	Base: Cement and steel foundation bolts Main frame: H Steel beam, Q235/Q345 steel, painted or galvanized Secondary frame: Galvanized C/Z purlins, bracing, tie bars Roof & wall: 75mm Glass wool sandwich panel Surface: Two layers rust-proof paint or hot-dip galvanized Finishing options: Various colors and textures available

Applications

Steel workshops and warehouses
Steel web frame structures
Portal frame products
High-rise building projects
Other steel structure buildings

Steel Designing & Detailing

Our skilled design team creates 3D Tekla models, layout drawings, fabrication drawings, and installation drawings to meet your project requirements.

Packing & Loading

20' container: 5.69m × 2.34m × 2.18m, 17.5 ton capacity, 24-26m³ volume
40' container: 11.8m × 2.34m × 2.18m, 22 ton capacity, 54m³ volume
HC container: 13.58m × 2.34m × 2.71m, 29 ton capacity, 68m³ volume
All steel components are protected with blankets during shipment

Quotation Requirements

Please provide the following information for an accurate quote:

Item	Details Needed
1	Project location (country/area)
2	Building dimensions (L×W×H in mm)
3	Wind load (max wind speed in kn/m², km/h, or m/s)
4	Snow load (max snow height in kn/m² or mm)
5	Earthquake resistance level
6	Brick wall requirements (height if needed)
7	Thermal insulation type (EPS, fiberglass, rockwool, PU panels)
8-9	Door/window quantities and sizes
10	Crane specifications (quantity, max weight/height if needed)
