Product Details:
|
| Raw Steel Material: | Q235B, Q355B, ASTM A36, | Surface Treatment: | Painting Or Hot-dip Galvanize |
|---|---|---|---|
| Shot Blasting Level: | Sa 2.5 | Service Life: | 50 Years |
| Wall And Roof: | Glass Wool Sandwich Panel | Columns And Beam: | H Section Column&Beam, Latticed Column |
| Service: | Design,Fabrication, Installation | Application: | Steel Warehouse, Workshop, Factory Building |
| High Light: | metal warehouse construction,metal storage buildings,Q235B Metal Steel Structure Warehouse |
||

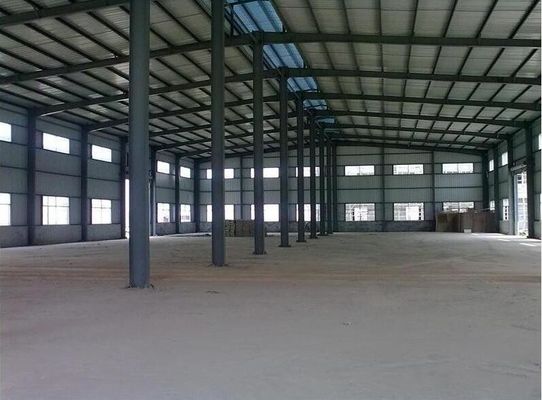

Metal Steel Structure Warehouse / Customized Pre Engineered Steel Buildings
| Name |
Metal Steel Structure Warehouse / Customized Pre Engineered Steel Buildings |
| Structure Type | Portal frame, single ridge, double span |
| Length | 100m |
| Width | 45m |
| Eave Height | 9m |
| span | double span |
| Steel structure quantity | 300 Ton |
| Column&Beam | H-section steel, latticed column, honeycomb beam, truss beam |
| Roof & Wall sandwich panel |
0.5mm steel cladding sheet |
| Door | Sliding door |
| Window | Ribbon Skylight |
| Steel Frame | H section steel | Q235/Q345 steel 8mm/10mm |
| Welding | Automatic submerged arc welding | |
| Rust removal | Sand blasting | |
| Surface finish | Alkyd paint or galvanized | |
| Intensive bolt | M20,Grade 10.9 | |
| Supporting System | Angle brace | L50x4,Steel Q235, processed and painted |
| Horizontal brace | Φ20, Steel Q235, processed and painted | |
| Column brance | Φ20, Steel Q235, processed and painted | |
| Tie rod | Φ89*3, Steel Q235, processed and painted | |
| Ordinary bolt | M12 Galvanized bolt | |
| Roof | Purlin | C160*60*2.5,Steel Q235, galvanized and painted |
| Roof panel | 0.5mm steel cladding sheet | |
| Sky light | 6mm thick PVC | |
| Accessories | Glass cement, self-tapping screws, etc. | |
| Edge cover | 0.4mm steel sheet profile trimming | |
| Gutter | 0.4mm thick sheet steel profile or galvanized sheet | |
| Down pie | Φ110PVC | |
| Walls | Purlin | C160*60*2.5,Steel Q235, painted |
| Wall | 0.5mm steel cladding sheet | |
| Accessories | Glass cement, self-tapping screws, etc. | |
| Edge cover | 0.4mm steel sheet profile trimming | |
| Ventilation | Ventilation ball | |
| Doors & windows | Rolling door/sliding door PVC/alu/steel/window |
1. Professional design team, we could design the drawing as your requirement or calculate the steel quantity based on your drawing.
2. Skilled fabrication team and advanced equipment. We make the independent production schedule to each project.
3. One-stop service: We have completed lots such kinds of projects, we could provide the integrated proposal for your project.
4. Professional QC team will guarantee that we will provide the production and service as your request.
5. After sales service: If it has any questions that need us to do in your process of using, such as the maintain of outside insulation and steel components, just tell us , we will try to provide the service as well as we can.
The following question we need to know before making the price. Just feel free to fill what you know.
| 1 | Location (where will be built?) | _____country, area |
| 2 | Size: length*width*height | _____mm*_____mm*_____mm |
| 3 | wind load (max. wind speed) | _____kn/m2, _____km/h, _____m/s |
| 4 | snow load (max. snow height) | _____kn/m2, _____mm |
| 5 | anti-earthquake | _____level |
| 6 | brickwall needed or not | If yes, 1.2m high or 1.5m high |
| 7 | thermal insulation | If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; . if not, the metal steel sheets will be ok. The cost of the latter will be much lower than that of the former |
| 8 | door quantity & size | _____units, _____(width)mm*_____(height)mm |
| 9 | window quanity & size | _____units, _____(width)mm*_____(height)mm |
| 10 | crane needed or not | If yes, _____units, max. lifting weight____tons; max. lifting height _____m |
