Product Details:
|
Features: | Steel Structure Construction | Application: | Prefab Steel Structure Construction / Warehouse Steel Frame Construction |
---|---|---|---|
Raw Steel Material: | Q235B, Q355B, ASTM A36, | Surface Treatment: | Painting Or Hot-dip Galvanize |
Service Life: | 50 Years | Wall And Roof: | Glass Wool Sandwich Panel |
Columns And Beam: | H Section Column&Beam, Latticed Column | Service: | Design,Fabrication, Installation |
Highlight: | steel frame building,steel frame construction |
Attribute | Value |
---|---|
Application | Prefab Steel Structure Construction / Warehouse Steel Frame Construction |
Features | Steel Structure Construction |
Raw steel material | Q235B, Q355B, ASTM A36 |
Surface treatment | Painting or Hot-dip Galvanize |
Service life | 50 Years |
Wall and Roof | Glass wool sandwich panel |
Columns and Beam | H Section Column&Beam, Latticed column |
Service | Design, Fabrication, Installation |

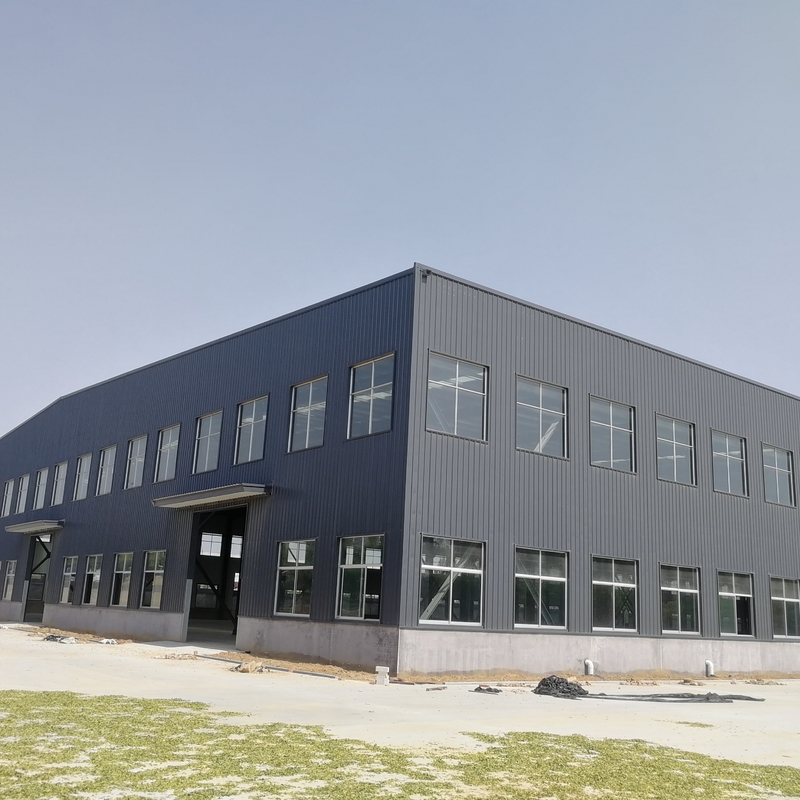

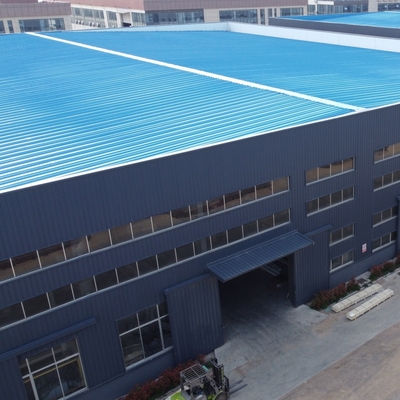

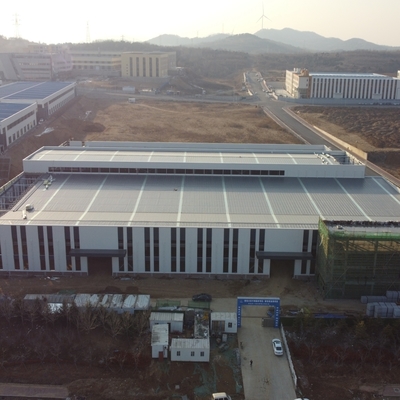

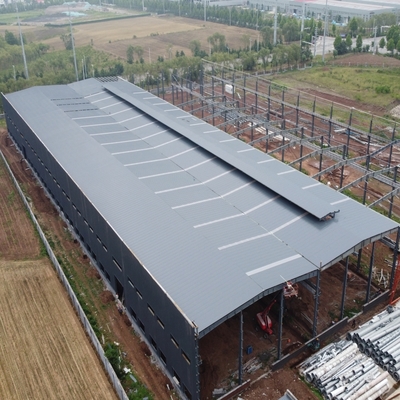

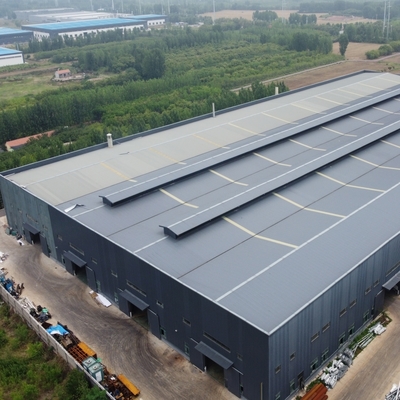

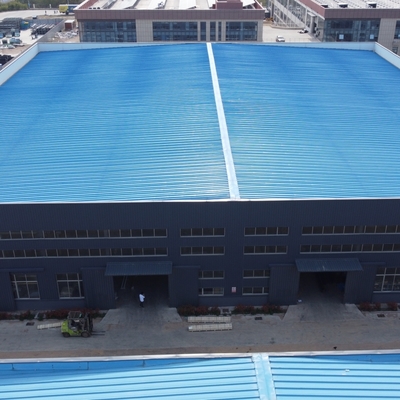

Prefab Steel Structure Construction consists of steel components connected by bolts. Compared with concrete buildings, steel frame structures offer significant advantages:
Structure Type | Portal frame, single ridge, double span |
Length | 90m |
Width | 25m |
Eave Height | 8m |
Span | Double span |
Steel structure quantity | 80 Ton |
Column & Beam | H-section steel, latticed column, honeycomb beam, truss beam |
Roof & Wall sandwich panel | 0.5mm steel cladding sheet |
Door | Sliding door |
Window | Ribbon Skylight |
Component | Specification |
---|---|
Steel Frame | H section steel | Q235/Q345 steel 8mm/10mm |
Welding | Automatic submerged arc welding |
Rust removal | Sand blasting |
Surface finish | Alkyd paint or galvanized |
Intensive bolt | M20, Grade 10.9 |
Supporting System | Angle brace: L50x4, Steel Q235, processed and painted |
Horizontal brace | Φ20, Steel Q235, processed and painted |
Column brace | Φ20, Steel Q235, processed and painted |
Tie rod | Φ89*3, Steel Q235, processed and painted |
Ordinary bolt | M12 Galvanized bolt |
1. Professional Design Team | We create drawings to your specifications or calculate steel quantities based on your existing plans |
2. Skilled Fabrication | Our experienced team uses advanced equipment with customized production schedules for each project |
3. One-Stop Service | We provide complete solutions for customized steel structure projects |
4. Quality Control | Dedicated QC team ensures products and services meet your requirements |
5. After-Sales Service | Comprehensive support for maintenance of insulation and steel components |
All structural components, panels, bolts, and accessories are packed securely for ocean transportation and loaded into 40'HQ containers.
