Product Details:
|
| Features: | Steel Structure Construction | Application: | Prefab Steel Structure Construction / Warehouse Steel Frame Construction |
|---|---|---|---|
| Raw Steel Material: | Q235B, Q355B, ASTM A36, | Surface Treatment: | Painting Or Hot-dip Galvanize |
| Service Life: | 50 Years | Wall And Roof: | Glass Wool Sandwich Panel |
| Columns And Beam: | H Section Column&Beam, Latticed Column | Service: | Design,Fabrication, Installation |
| High Light: | steel frame building,steel frame construction |
||

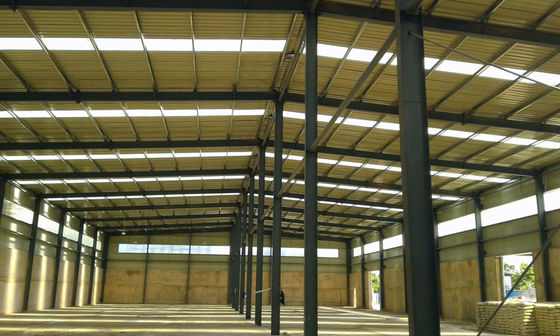

Prefab Steel Structure Construction / Warehouse Steel Frame Construction
Prefab Steel Structure Construction / Warehouse Steel Frame Construction. Structural steel frame building is consisted of steel structure components and connected by bolts. Compared with concrete building, steel frame building has such advantage : Steel structural members are manufactured at the factory, reducing on-site workload, shortening construction period, and meeting industrial requirements. Steel structure building is reliable in quality, accurate in size, easy to install, safe and reliable, with good seismic and wind resistance, and strong load capacity.
| Name |
Prefab Steel Structure Construction / Warehouse Steel Frame Construction |
| Structure Type | Portal frame, single ridge, double span |
| Length | 90m |
| Width | 25m |
| Eave Height | 8m |
| span | double span |
| Steel structure quantity | 80 Ton |
| Column&Beam | H-section steel, latticed column, honeycomb beam, truss beam |
| Roof & Wall sandwich panel |
0.5mm steel cladding sheet |
| Door | Sliding door |
| Window | Ribbon Skylight |
| Steel Frame | H section steel | Q235/Q345 steel 8mm/10mm |
| Welding | Automatic submerged arc welding | |
| Rust removal | Sand blasting | |
| Surface finish | Alkyd paint or galvanized | |
| Intensive bolt | M20,Grade 10.9 | |
| Supporting System | Angle brace | L50x4,Steel Q235, processed and painted |
| Horizontal brace | Φ20, Steel Q235, processed and painted | |
| Column brance | Φ20, Steel Q235, processed and painted | |
| Tie rod | Φ89*3, Steel Q235, processed and painted | |
| Ordinary bolt | M12 Galvanized bolt | |
| Roof | Purlin | C160*60*2.5,Steel Q235, galvanized and painted |
| Roof panel | 0.5mm steel cladding sheet | |
| Sky light | 6mm thick PVC | |
| Accessories | Glass cement, self-tapping screws, etc. | |
| Edge cover | 0.4mm steel sheet profile trimming | |
| Gutter | 0.4mm thick sheet steel profile or galvanized sheet | |
| Down pie | Φ110PVC | |
| Walls | Purlin | C160*60*2.5,Steel Q235, painted |
| Wall | 0.5mm steel cladding sheet | |
| Accessories | Glass cement, self-tapping screws, etc. | |
| Edge cover | 0.4mm steel sheet profile trimming | |
| Ventilation | Ventilation ball | |
| Doors & windows | Rolling door/sliding door PVC/alu/steel/window |
| 1 | Professional design team | We could design the drawing as your requirement or calculate the steel quantity based on your drawing. |
| 2 | Skilled fabrication team and advanced equipment | We make the independent production schedule to each project. Our engineers will introduce and train workers for each project before fabrication works start. |
| 3 | One-stop service | Nearly each steel structure project is customized by our clinets’ requirement. We have completed lots such kinds of projects, we could provide the integrated proposal for your project. |
| 4 | Professional QC team | Professional QC team will guarantee that we will provide the production and service as your request. |
| 5 | After sales service | If it has any questions that need us to do in your process of using, such as the maintain of outside insulation and steel components, just tell us , we will try to provide the service as well as we can. |
All the structure components, panels,bolts and sort of accessories will bewell packed with standard package suitable ocean transportation and loaded into 40’HQ.
1. Professional design team, we could design the drawing as your requirement or calculate the steel quantity based on your drawing.
2. Skilled fabrication team and advanced equipment. We make the independent production schedule to each project.
3. One-stop service: We have completed lots such kinds of projects, we could provide the integrated proposal for your project.
4. Professional QC team will guarantee that we will provide the production and service as your request.
5. After sales service: If it has any questions that need us to do in your process of using, such as the maintain of outside insulation and steel components, just tell us , we will try to provide the service as well as we can.
