Truss Roof Steel Structure Warehouse Construction Metal Truss Fabrication

Truss Roof Steel Structure Warehouse Construction Metal Truss Fabrication
Truss Roof Steel Structure Warehouse Construction Metal Truss Fabrication Truss Roof Steel Structure Warehouse Construction Metal Truss Fabrication Truss Roof Steel Structure Warehouse Construction Metal Truss Fabrication Truss Roof Steel Structure Warehouse Construction Metal Truss Fabrication

Large Image :  Truss Roof Steel Structure Warehouse Construction Metal Truss Fabrication

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV,ISO
Model Number: Ruly0040
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000 Square Meter Per Month

Truss Roof Steel Structure Warehouse Construction Metal Truss Fabrication

Description
Raw Steel Material: Q235B, Q355B Surface Treatment: Painting Or Hot-dip Galvanize
Shot Blasting Level: Sa 2.5 Service Life: 50 Years
Wall And Roof: Glass Wool Type: Heavy Steel Warehouse
Working Scope: Design,Fabrication, Installation Application: Truss Roof Steel Structure Warehouse, Workshop
High Light:

steel structure building

,

metal storage buildings

,

Truss Roof Steel Structure Warehouse



Truss Roof Steel Structure Warehouse Construction Metal Truss Fabrication



General



Steel truss roof is one kind of structure consisting of rods connected by hinges at each end. Trusses are generally planar or spatial structures composed of straight bars with triangular elements. The members of trusses are mainly subjected to axial tension or pressure, so as to make full use of the strength of materials. When the span is large, it can save materials, reduce the dead weight and increase the stiffness compared with the real web beam.



We disign the drawing, fabricate all the steel columns, beams, purlin, ect, install the steel structure and panel, window&doors for our client.

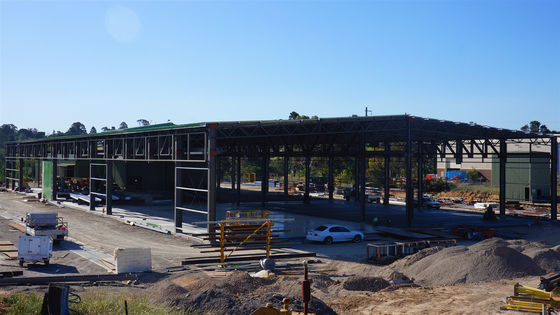

Project information for Truss Roof Steel Structure Warehouse Construction Metal Truss Fabrication



Name Steel Supporting Structure Truss Roof Warehouse
Structure Type Single ridge for each span, 7 continuous spans with office and storeroom building
Length 80m
Width 50m
Eave Height 10m
Roof Slope 10%
Gable Wall Column Spacing 7.5m
Roof

75 mm thick Glass wool sandwich panel

Wall 75 mm thick Glass wool sandwich panel
Door Sliding door
Window PVC/alu. alloy window
Height difference between indoor and outdoor 300mm



Main parts of the steel structures and technical parameters



Main Steel Frame System
Main structure H section steel Q355, alkyd painting, two primary painting, two finish painting.
Roof purlin XZ160*60*20*2.5, galvanized
Wall purlin XZ160*60*20*2.5, galvanized
Intensive bolt Grade 10.9
Turn buckle bolt M20+2, steel Q235, processing
Anchor bolt M24, steel Q235, processing
Ordinary bolt Galvanized bolt M20
Ordinary bolt Galvanized bolt M12
Brace nut Galvanized bolt M12
Bracing System
Cross brace Φ20 round steel bar Q235, process and painted (alkyd painting)
Angle brace L50*5 angle steel Q235, process and painted (alkyd painting)
Column bracing Φ25 round steel bar Q235, process and painted (alkyd painting)
Tie bar Φ127*3 steel pipe Q235, process and painted (alkyd painting)
Batter brace Φ32*2.5, Φ12 round steel bar Q235, process and painted (alkyd painting)
Wall & Roof System
Roof panel Glass wool sandwich panel
Wall panel Glass wool sandwich panel
Edge cover 0.5mm color plate, angle Alu.
Fittings & accessories Nails, glue etc.
Unpowered ventilator Diameter Φ600, stainless steel
Sky lighting band 1.2mm FRP, double layer
Sliding door sandwich panel door
Roof drainage system
Gutter 0.5mm color steel plate
Rainspout pipes Φ110 PVC pipe



Our steel structure produciton line



Truss Roof Steel Structure Warehouse Construction Metal Truss Fabrication 0



Design



Our engineers will design Layout drawing, shop drawing, 3D Tekla model, installation drawing according to the project.

Truss Roof Steel Structure Warehouse Construction Metal Truss Fabrication 1





Packing and transport



All the structure components, panels,bolts and sort of accessories will bewell packed with standard package suitable ocean transportation and loaded into 40’HQ.

All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers,who will prevent the goods to be damaged.

Truss Roof Steel Structure Warehouse Construction Metal Truss Fabrication 2

What we do



We can produce light and heavy steel structure buildings, such as warehouse, workshop, storage, construction materials, high rise steel office buiding, factory , plant, exhibition hall, steel tile.



How to quote



The following question we need to know before making the price. Just feel free to fill what you know.

1 Location (where will be built?) _____country, area
2 Size: length*width*height _____mm*_____mm*_____mm
3 wind load (max. wind speed) _____kn/m2, _____km/h, _____m/s
4 snow load (max. snow height) _____kn/m2, _____mm
5 anti-earthquake _____level
6 brickwall needed or not If yes, 1.2m high or 1.5m high
7 thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; . if not, the metal steel sheets will be ok. The cost of the latter will be much
lower than that of the former
8 door quantity & size _____units, _____(width)mm*_____(height)mm
9 window quanity & size _____units, _____(width)mm*_____(height)mm
10 crane needed or not If yes, _____units, max. lifting weight____tons; max. lifting height _____m







Contact Details
Qingdao Ruly Steel Engineering Co.,Ltd

Contact Person: steven

Tel: 0086-18661691560

Send your inquiry directly to us (0 / 3000)
