Product Details:
|
Application: | Multi Floor Steel Structure Office Building | Usage: | Office Buildings, With Glass Curtain Wall |
---|---|---|---|
Type: | Prefabricated Steel Buildings | Raw Steel Material: | Q235B, Q355B, ASTM A36 |
Surface Treatment: | Painting Or Hot-dip Galvanize | Wall And Roof: | Steel Cladding/Rock Wool/Glass Wool/EPS/PU Sandwich Panel |
Columns And Beam: | H Section Column&Beam | Installation: | Engineer Guidance On Site |
Highlight: | prefab metal buildings,steel frame construction |
Attribute | Value |
---|---|
Application | Multi Floor Steel Structure Office Building |
Usage | Office Buildings, With Glass Curtain Wall |
Type | Prefabricated Steel Buildings |
Raw steel material | Q235B, Q355B, ASTM A36 |
Surface treatment | Painting or Hot-dip Galvanize |
Wall and Roof | Steel cladding/Rock wool/Glass wool/EPS/PU sandwich panel |
Columns and Beam | H Section Column & Beam |
Installation | Engineer guidance on site |

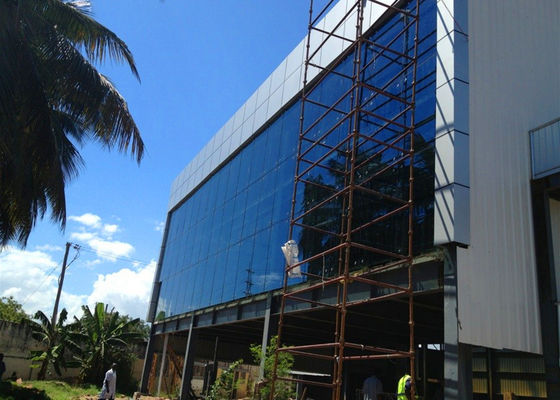

This three-floor steel frame structure office building features a glass curtain wall facade with an overall floor area of 3600 square meters. The complete package includes welded steel beams & columns, steel floor deck, purlins, windows, doors, and all necessary accessories.
Material: Q345(S355JR) or Q235(S235JR) steel. Features all-bolt connections with straight or variable cross-sections.
Options include paint coating or hot-dip galvanization.
Main structure | H section steel Q345, alkyd painting, two primary painting, two finish painting |
Roof purlin | XZ160*60*20*2.5, galvanized |
Wall purlin | XZ160*60*20*2.5, galvanized |
Intensive bolt | Grade 10.9 |
Turn buckle bolt | M20+2, steel Q235, processing |
Anchor bolt | M24, steel Q235, processing |
Cross brace | Φ20 round steel bar Q235, process and painted (alkyd painting) |
Angle brace | L50*5 angle steel Q235, process and painted (alkyd painting) |
Column bracing | Φ25 round steel bar Q235, process and painted (alkyd painting) |
Tie bar | Φ127*3 steel pipe Q235, process and painted (alkyd painting) |
Roof panel | Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU) |
Wall panel | Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU) |
Edge cover | 0.5mm color plate, angle Alu. |
Fittings & accessories | Nails, glue etc. |
1 |
High strength and light weight Steel structures offer superior strength-to-weight ratios. Compared to concrete structures, steel beams and columns require smaller cross-sectional areas, increasing usable space. Typically, steel columns occupy about 3% of building area versus 7-9% for concrete. |
2 |
Rapid construction Factory-prefabricated components enable fast on-site assembly through welding or bolting. Steel structures can serve as their own construction load-bearing systems, eliminating formwork needs and accelerating construction by approximately 1.5x compared to concrete. |
3 |
Efficient utility routing The structural design allows convenient pipe and conduit installation within truss spaces or hollow members, simplifying maintenance and reducing required floor heights compared to concrete alternatives. |
4 |
Environmentally friendly construction Steel construction minimizes use of sand, stone, and cement, reducing dust, waste accumulation, and noise pollution typically associated with traditional building methods. |
5 |
Sustainable solution The steel construction industry represents an environmentally responsible approach with efficient resource utilization and minimal ecological impact. |
All structural components, panels, bolts, and accessories are packed in standard ocean transportation containers, typically loaded into 40'HQ containers.
