Q235B Prefabricated Steel Structure Workshop for Industrial Buildings

Q235B Prefabricated Steel Structure Workshop for Industrial Buildings
Q235B Prefabricated Steel Structure Workshop for Industrial Buildings
Q235B Prefabricated Steel Structure Workshop for Industrial Buildings Q235B Prefabricated Steel Structure Workshop for Industrial Buildings Q235B Prefabricated Steel Structure Workshop for Industrial Buildings Q235B Prefabricated Steel Structure Workshop for Industrial Buildings Q235B Prefabricated Steel Structure Workshop for Industrial Buildings Q235B Prefabricated Steel Structure Workshop for Industrial Buildings Q235B Prefabricated Steel Structure Workshop for Industrial Buildings

Large Image :  Q235B Prefabricated Steel Structure Workshop for Industrial Buildings

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV, ISO
Model Number: Ruly0312
Payment & Shipping Terms:
Minimum Order Quantity: 300 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: Steel frame pallets and loaded into 40’HQ
Delivery Time: 30 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 20000 Square Meter Per Month
Contact Now

Q235B Prefabricated Steel Structure Workshop for Industrial Buildings

Description
Application: Prefabricated Workshop Buildings , Industrial Steel Framed Buildings Type: Pre Engineered Steel Structure
Raw Steel Material: Q235B, Q355B, ASTM A36 Working Scope: Design,Fabrication, Installation
Surface Treatment: Painting Or Hot-dip Galvanize Columns & Beams: H-section Steel
Service Life: 50 Years Standard: AISC, ASTM, BS, DIN, GB, JIS
Highlight:

Q235B Industrial Steel Framed Buildings

,

Q355B Industrial Steel Framed Buildings

,

Q235B Prefabricated Steel Structure Workshop

Q235B Industrial Steel Framed Buildings Prefabricated Steel Structure Workshop
Product Specifications
Attribute Value
Application Prefabricated Workshop Buildings, Industrial Steel Framed Buildings
Type Pre Engineered Steel Structure
Raw steel material Q235B, Q355B, ASTM A36
Working scope Design, Fabrication, Installation
Surface treatment Painting or Hot-dip Galvanize
Columns & Beams H-section steel
Service life 50 Years
Standard AISC, ASTM, BS, DIN, GB, JIS
Product Overview
Prefabricated steel structures offer excellent seismic resistance, making them ideal for high-rise buildings and industrial applications. These structures primarily consist of steel beams, columns, and trusses fabricated from section steel and plates, connected through welding, bolts, or rivets.
Material Specifications
Component Specification Details
Main steel frame H-section steel Q355 steel 8mm to 10mm
Welding Automatic Submerged Arc Welding
Surface treatment Sand blasting for rust removal, Alkyd Paint or galvanized coating
High strength bolt Grade 10.9
Supporting system Various components Angle brace (L50x4), Cross bracing (dia.20 round bar), Tie bar (dia.89*3 round pipe), Batter brace (dia.12 round bar)
Roof system Multiple elements Purlin (C160*60*2.5), Out-roof panel (Sandwich panel or corrugated steel plate), Transparent skylight (6mm thick PVC), Various accessories
Wall system Multiple elements Purlin (C160*60*2.5), Wall panel (Sandwich panel or corrugated steel plate), Various accessories
Additional features Ventilator options, Door & window solutions, Crane options (5-20 tons capacity)

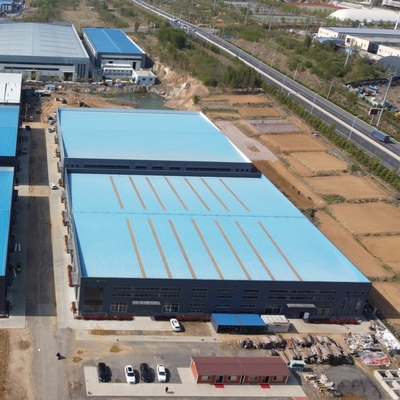

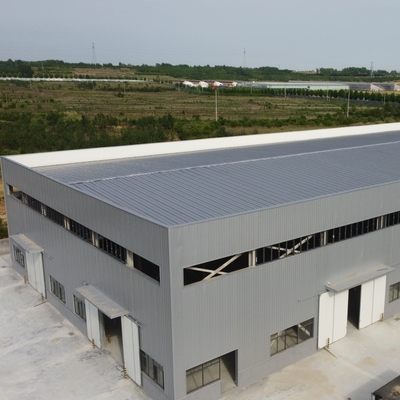

Design Examples
Q235B Prefabricated Steel Structure Workshop for Industrial Buildings 0 Q235B Prefabricated Steel Structure Workshop for Industrial Buildings 1 Q235B Prefabricated Steel Structure Workshop for Industrial Buildings 2
Key Advantages
  • Lightweight construction reduces structural load
  • High reliability and structural integrity
  • Excellent vibration and impact resistance
  • High degree of industrialization in manufacturing
  • Precise and rapid assembly capabilities
  • Spacious interior with flexible layout options
  • Easy to create sealed structures for various applications
Steel structure engineering offers versatile solutions for industrial buildings, combining lightweight construction with exceptional strength. These structures are widely used in factories, bridges, stadiums, and high-rise buildings due to their durability, flexibility, and cost-effectiveness.
