Prefabricated Steel Structure Workshop for Agricultural Processing

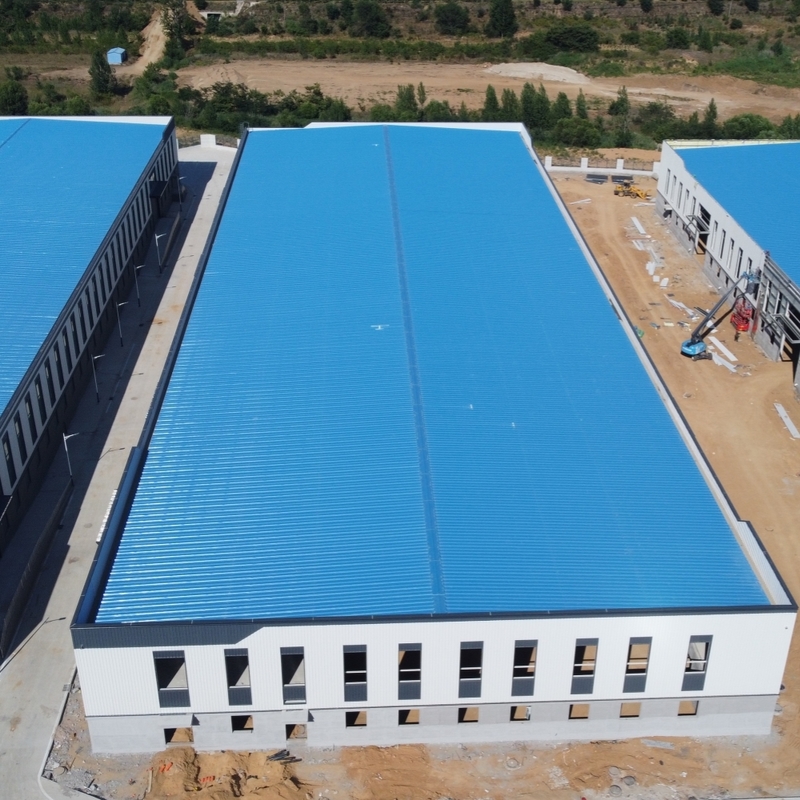

Large Image : Prefabricated Steel Structure Workshop for Agricultural Processing

Product Details:

Place of Origin:	China
Brand Name:	Ruly Steel
Certification:	SGS, BV, ISO
Model Number:	Ruly0383

Payment & Shipping Terms:

Minimum Order Quantity:	300 Square Meter
Price:	USD29-USD99 Per Square Meter
Packaging Details:	Steel frame pallets and loaded into 40’HQ
Delivery Time:	30 Days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	20000 Square Meter Per Month

Contact Now

Prefabricated Steel Structure Workshop for Agricultural Processing

Description

Application:	Prefabricated Workshop Buildings , Industrial Steel Framed Buildings	Type:	Steel Structure Workshop
Raw Steel Material:	Q235B, Q355B, ASTM A36	Shot Blasting Level:	Sa 2.5
Service Life:	50 Years	Wall And Roof:	Rock Wool
Surface Treatment:	Painting	Working Scope:	Design,Fabrication, Installation
Columns & Beams:	H-section Steel	Standard:	AISC, ASTM, BS, DIN, GB, JIS
Highlight:	Workshop Prefabricated Steel Structure , Sa 2.5 Prefabricated Steel Structure , ASTM A36 Steel Structure Workshop

Agricultural Products Processing Workshop Prefabricated Steel Structure

Product Specifications

Attribute	Value
Application	Prefabricated Workshop Buildings, Industrial Steel Framed Buildings
Type	Steel Structure Workshop
Raw steel material	Q235B, Q355B, ASTM A36
Shot blasting level	Sa 2.5
Service life	50 Years
Wall and Roof	Rock wool
Surface treatment	Painting
Working scope	Design, Fabrication, Installation
Columns & Beams	H-section steel
Standard	AISC, ASTM, BS, DIN, GB, JIS

Product Overview

Our Agricultural Products Processing Workshop is a prefabricated steel structure factory designed for optimal performance and durability. The welded H-section steel columns and beams are connected by high-strength bolts to form the main frame structure. Steel structures offer superior strength-to-weight ratio, allowing for large span constructions while requiring less material compared to other building types.

Material Specifications

Component	Specification
Steel Frame	H section steel \| Q235/Q345 steel plate thickness: 8-30mm
Welding	Automatic submerged arc welding
Rust removal	Sand blasting
Surface finish	Alkyd paint or galvanized
Intensive bolt	M20, Grade 10.9
Supporting System	Angle brace: L50x4, Steel Q235 Horizontal brace: Φ20, Steel Q235 Column brace: Φ20, Steel Q235 Tie rod: Φ89*3, Steel Q235 All processed and painted
Ordinary bolt	M12 Galvanized bolt
Roof System	Purlin: C160602.5, Steel Q235, galvanized and painted Roof panel: Sandwich panel or corrugated steel sheet Sky light: 6mm thick PVC Accessories: Glass cement, self-tapping screws Edge cover: 0.4mm steel sheet profile trimming Gutter: 0.4mm thick sheet steel profile or galvanized sheet Down pie: Φ110PVC
Walls	Purlin: C160602.5, Steel Q235, painted Wall: Sandwich panel or corrugated steel plate Accessories: Glass cement, self-tapping screws Edge cover: 0.4mm steel sheet profile trimming Ventilation: Ventilation ball Doors & windows: Rolling door/sliding door PVC/alu/steel/window

Manufacturing Capabilities

Our steel structure fabrication facility spans 35,000㎡ with 20,000㎡ of workshop space. Equipped with advanced production lines including light/heavy H steel production, BOX production, and C/Z purlin production lines. Our facility features state-of-the-art equipment such as plasma cutting machines for precision fabrication.

Service Scope

Structural steel fabrication, painting, galvanizing, and pre-assembly
Complete design, fabrication, and installation of prefabricated steel structures
Detailed fabrication drawings based on your architectural plans
Professional engineering consulting services

Packaging & Shipping

All structural components, panels, bolts, and accessories are securely packed for ocean transportation in 40'HQ containers. Our skilled workers use cranes and forklifts at our factory loading site to ensure damage-free loading and transport.
