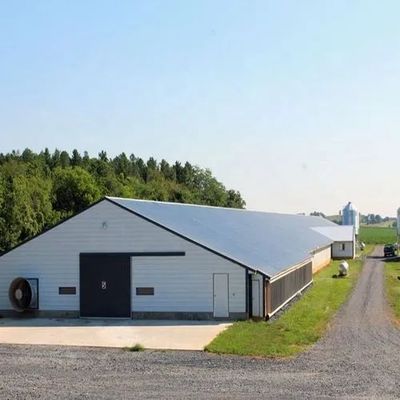

Maximize productivity and ensure optimal bird health with our high-performance poultry house, engineered for modern commercial farms. Designed for broilers, layers, and breeder flocks, this prefabricated poultry house delivers a controlled, durable, and cost-effective environment that supports higher growth rates, better feed conversion, and improved egg production.
Constructed with a galvanized steel frame structure, the building offers superior strength, corrosion resistance, and long-term durability—even in high-humidity and high-ammonia poultry farming environments. The rigid portal frame design ensures stability under heavy snow, strong winds, and daily operational stress.
The roof and wall cladding use insulated sandwich panels (available with EPS, PU, PIR or Rockwool core), providing excellent thermal insulation to maintain stable internal temperatures year-round. This reduces heat stress in summer and minimizes heating needs in winter—critical for animal welfare and energy savings.

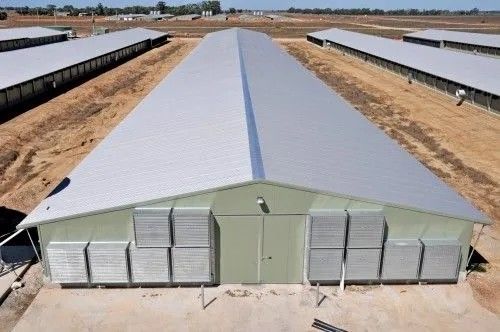

Each poultry house is equipped with a mechanical ventilation system (customizable & optional), including axial fans, cooling pads, and automated side curtains or inlet baffles, ensuring consistent airflow, humidity control, and ammonia removal. Optional tunnel ventilation and smart controller integration allow for fully automated climate management based on temperature and humidity sensors.

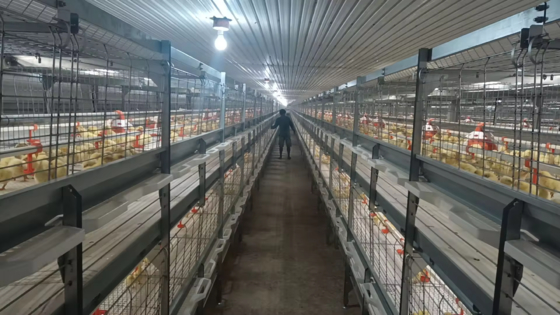

The interior features an open-span design with no interior columns, maximizing usable space for feeding lines, drinkers, nesting systems, and manure belts. The structure supports easy integration with automated feeding, egg collection, and slurry removal systems.
All components are factory-precut, pre-drilled, and numbered for fast on-site assembly using bolted connections—no welding required. Typical installation time is 40–60% faster than traditional construction, enabling quicker farm commissioning.
Main parts of the steel structures and technical parameters:
| Main structure |
H section steel Q355, alkyd painting, two primary painting, two finish painting. Or hot-dip galvanized |
| Roof purlin |
XZ160*60*20*2.5, galvanized |
| Wall purlin |
XZ160*60*20*2.5, galvanized |
| Intensive bolt |
Grade 10.9 |
| Turn buckle bolt |
M20+2, steel Q235, processing |
| Anchor bolt |
M24, steel Q235, processing |
| Ordinary bolt |
Galvanized bolt M20 |
| Ordinary bolt |
Galvanized bolt M12 |
| Brace nut |
Galvanized bolt M12 |
Bracing System
| Cross brace |
Φ20 round steel bar Q235, process and painted (alkyd painting) |
| Angle brace |
L50*5 angle steel Q235, process and painted (alkyd painting) |
| Column bracing |
Φ25 round steel bar Q235, process and painted (alkyd painting) |
| Tie bar |
Φ127*3 steel pipe Q235, process and painted (alkyd painting) |
| Batter brace |
Φ32*2.5, Φ12 round steel bar Q235, process and painted (alkyd painting) |
Wall & Roof System
| Roof panel |
Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU/PIR) |
| Wall panel |
Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU/PIR) |
| Edge cover |
0.5mm color plate, angle Alu. |
| Fittings & accessories |
Nails, glue etc. |
| Unpowered ventilator |
Diameter Φ600, stainless steel |
| Sliding door |
sandwich panel door |
| Poultry equipment |
Cooling pad, exhaust fan, etc. |
How to install:
Method 1: We provide shop drawing before installation.
Method 2: If you still don't know how to install, We will teach you the installation in our factory. when necessary , we will assemble a sample steel structure building for you.
Packing and transport:
This poultry house is a smart, long-term investment in sustainable and efficient poultry farming. All structures come with full engineering drawings, load calculations, and material certifications for international compliance.
Choose a poultry house that combines durability, climate control, and rapid deployment—built to support your farm’s success today and into the future.
