Large Span Fast Assembling Prefabricated House Construction Steel Structure Building
Product Attributes
| Raw Steel Material |
Q235B, Q355B, ASTM A36 |
| Application |
Steel Workshop, Steel Structure Platform, Structural Roofing, Frame Part |
| Surface Treatment |
Painting or Hot-DIP Galvanized |
| Service Life |
50 Years |
| Wall and Roof |
Steel cladding sheet, Sandwich Panel |
| Columns & Beams |
H-Section Steel |
| Shot Blasting Level |
SA 2.5 |
| Certification |
CE, AISC, SGS, BV, ISO, GB |
| Installation |
Engineer Guidance on Site |
| Drawing |
CAD, TEKLA, 3D Model, PKPM, BIM |
| HS Code |
9406900090 |
| Transport Package |
Standard Export Package or Customer's Requirement |
| Production Capacity |
30000ton/Year |
| Features |
Prefab Steel Structure, Large Span, Multi-Floor |
| Connection Form |
Bolt Connection |
| Parapet Wall |
As Requested |
Product Description
Large Span and Fast Assembling Industrial Workshop Prefab House Construction Steel Structure Building Prefabricated Warehouse
Key Features
- Lighter weight capacity compared to traditional building materials
- High strength and good toughness with uniform material properties for excellent seismic performance
- Factory prefabrication and on-site installation enables faster construction and lower costs than reinforced concrete structures
- Environmentally friendly construction with recyclable materials that reduce resource waste
Technical Specifications
| Steel Frame |
H section steel | Q235/Q355 steel 8mm/10mm |
| Welding |
Automatic submerged arc welding |
| Rust removal |
Sand blasting |
| Surface finish |
Alkyd paint or galvanized |
| Intensive bolt |
M20, Grade 10.9 |
| Supporting System |
Angle brace | L50x4, Steel Q235, processed and painted |
| Horizontal brace |
Φ20, Steel Q235, processed and painted |
| Column brace |
Φ20, Steel Q235, processed and painted |
| Tie rod |
Φ89*3, Steel Q235, processed and painted |
| Ordinary bolt |
M12 Galvanized bolt |
| Roof Purlin |
C160*60*2.5, Steel Q235, galvanized and painted |
| Roof panel |
Sandwich panel or corrugated steel sheet |
| Sunlight |
1mm thick PVC |
| Accessories |
Glass cement, self-tapping screws, etc. |
| Edge cover |
0.4mm steel sheet profile trimming |
| Gutter |
0.4mm thick sheet steel profile or galvanized sheet |
| Down pipe |
Φ110PVC |
| Wall Purlin |
C160*60*2.5, Steel Q235, painted |
| Wall |
Sandwich panel or corrugated steel plate |
| Ventilation |
Powered Ventilation ball |
| Doors & windows |
Rolling door/sliding door PVC/alu/steel/window |

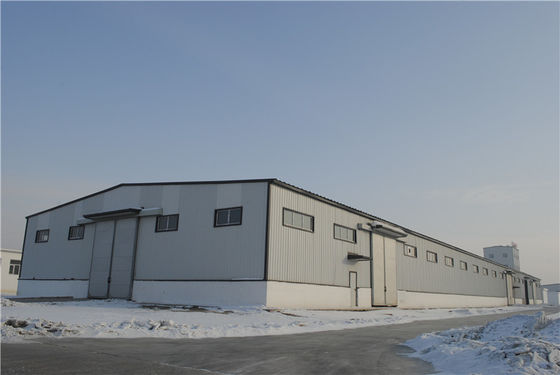

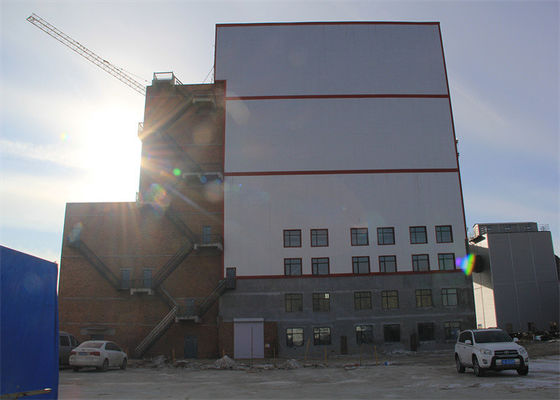

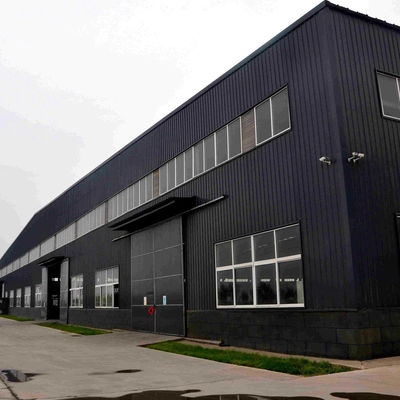

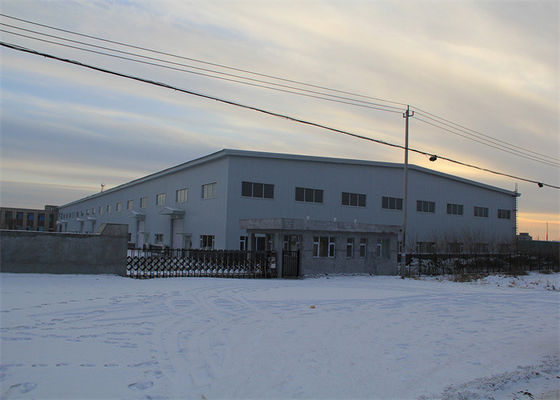

Project Showcase
High-End Intelligent Hydraulic Machine Tool Equipment
Size: Total Area 9,702 Sqm
Steel Structure Weight: 630Ton
Logistics Steel Warehouse For High-Speed Rail Station
Size: Total Area 24,570 Sqm
Steel Structure Weight: 985Ton
Textile Manufacturing Machine Tool Equipment
Size: Total Area 6,615 Sqm
Steel Structure Weight: 750Ton
About Our Company
Qingdao Ruly Steel Engineering Co., Ltd is a professional steel structure fabrication and engineering company located in Qingdao, China. We integrate steel structure design, research and development, manufacturing and installation for various project types including prefabricated steel workshops, warehouses, logistics parks, and other civil building systems.
Our 35,000 square meter facility includes a 20,000 square meter processing plant with over 100 employees and monthly production capacity exceeding 1500 tons. We manufacture light/heavy H steel, BOX steel, cross shaped section steel, large diameter submerged arc straight-weld pipe, and various structural components.
Certifications include ISO9001:2008 quality management system, ISO14001:2004 environmental system, GB/T28001:2001 occupational health system, ASTM certification, and international SGS product certification.
Our Services
- Structural steel fabrication, painting, galvanizing, and pre-assembly
- Design, fabrication and installation of prefabricated steel structure buildings
- Detailed fabrication drawings based on your architectural plans
- Technical advice for usage, maintenance and improvements
Packaging & Shipping
All structure components, panels, bolts and accessories are packed in standard ocean transportation packages and loaded into 40'HQ containers. Our skilled workers use cranes and forklifts to prevent damage during loading.
Frequently Asked Questions
Are you a manufacture factory or trading company?
We are a manufacturing factory. You're welcome to visit our facility to see our quality control processes and get the most competitive pricing.
Is your price competitive compared with other companies?
We offer the best price for equivalent quality and the best quality for equivalent prices, working to reduce your costs while guaranteeing product quality.
Can you send engineers or whole team to install my project?
We provide detailed installation drawings for free and can send engineers or installation teams upon request.
Do you accept container loading inspection?
You may send an inspector at any time during production or container loading.
Do you offer designing service for us?
Yes, we provide complete design solutions using AutoCAD, PKPM, MTS, 3D3S, Tarch, and Tekla Structures.
What is the delivery time?
Delivery typically takes 40 days after receiving deposit, depending on order quantities.
How can you get a quotation for your projects?
Contact us by email, phone, WhatsApp, or Viber - we respond within 8 hours.
Why Choose Us?
- Professional design team for customized solutions
- Skilled fabrication team with advanced equipment
- One-stop service for complete project solutions
- Quality control team ensuring product standards
- Comprehensive after-sales service and support
