Product Details:
|
Features: | Prefab Steel Structure, Large Span, Multi-Floor | Raw Steel Material: | Q235B, Q355B, ASTM A36 |
---|---|---|---|
Application: | Steel Workshop, Steel Structure Platform, Structural Roofing, Frame Part | Surface Treatment: | Painting Or Hot-DIP Galvanized |
Service Life: | 50 Years | Wall And Roof: | Steel Cladding Sheet,Sandwich Panel |
Columns & Beams: | H-Section Steel | Shot Blasting Level: | SA 2.5 |
Certification: | CE, AISC, SGS, BV, ISO, GB | Installation: | Engineer Guidance On Site |
Drawing: | CAD, TEKLA, 3D Model, PKPM, BIM | HS Code: | 9406900090 |
Transport Package: | Standard Export Package Or Customer′s Requirement | Production Capacity: | 30000ton/Year |
Connection Form: | Bolt Connection | ||
Highlight: | Galvanized Steel Structure Warehouse,Prefabricated Steel Structure Warehouse,Prefabricated Galvanized Construction Warehouse |

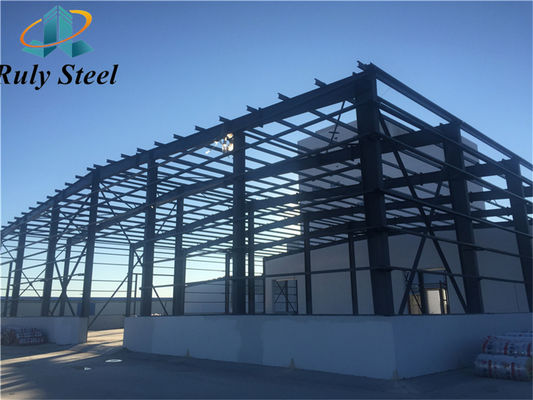

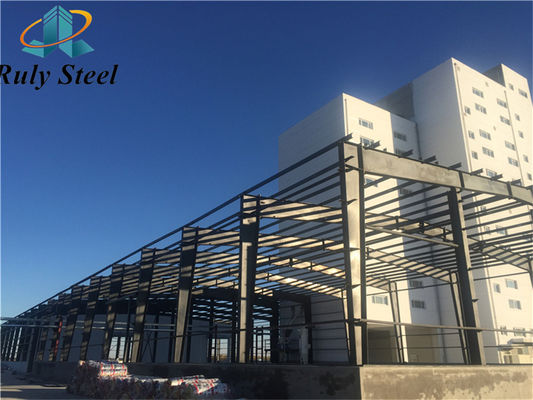

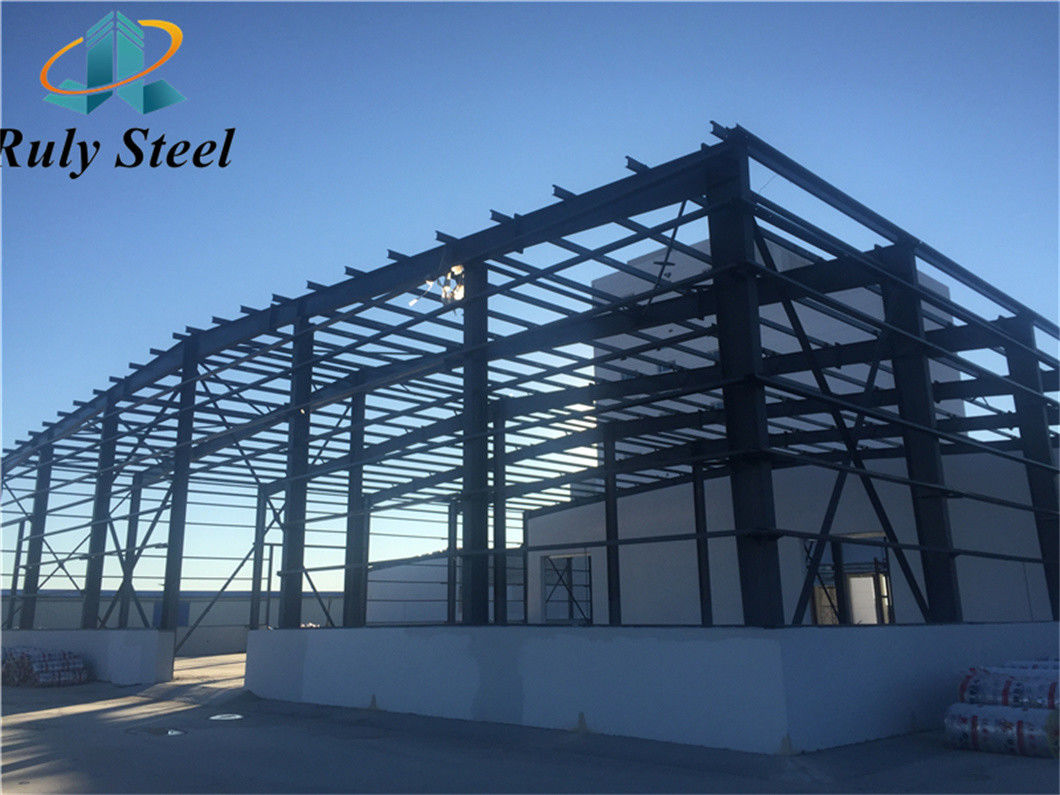

Prefabricated Steel Structure Warehouse Steel Structure Construction Steel Structure Food Processing Plant
A steel structure food processing plant is a facility designed and constructed using steel components to provide an efficient and hygienic environment for food production and processing. Here is a description of a steel structure food processing plant:
Food Safety: The steel structure of the food processing plant is designed to meet strict food safety standards. The use of stainless steel or other food-grade materials helps prevent contamination and ensures a clean and sanitary processing environment. The smooth surfaces of steel are easy to clean and maintain, reducing the risk of bacterial growth and facilitating proper sanitation practices.
Customizable Layout: Steel structures offer flexibility in designing the layout of a food processing plant. The open span design allows for customizable floor plans, optimizing the flow of materials, workers, and equipment. The absence of internal columns or walls provides a spacious and unobstructed area for different processing stages, such as receiving, processing, packaging, and storage.
High Structural Strength: Steel structures provide excellent structural strength, allowing for the construction of large-scale food processing facilities. Steel beams and columns can support heavy equipment, conveyor systems, and storage racks without compromising the integrity of the structure. This ensures the safe operation of machinery and efficient use of space.
Temperature Control: Steel structures can be designed to incorporate insulation and climate control systems, ensuring proper temperature regulation throughout the food processing plant. This is crucial for maintaining the freshness, quality, and safety of perishable food products. Insulated panels or coatings can be used to create a controlled environment for specific processing areas, such as cold storage or temperature-controlled production rooms.
Hygienic Design: Steel structures in food processing plants are designed with hygiene in mind. Smooth, seamless surfaces reduce the accumulation of dirt, dust, and food particles, making cleaning and sanitation easier. The layout can incorporate features such as sloped floors, stainless steel drains, and washable wall panels to facilitate proper drainage and cleaning procedures.
Compliance with Regulations: Steel structure food processing plants are constructed in compliance with local and international regulations and standards for food safety and manufacturing. This includes adherence to guidelines for ventilation, lighting, plumbing, waste management, and fire safety. Compliance ensures that the facility meets legal requirements and operates in a safe and responsible manner.
Expansion and Adaptability: Steel structures allow for scalability and future expansion of the food processing plant. As the business grows or production needs change, additional sections or floors can be added to accommodate increased capacity or introduce new processing lines. The modular nature of steel construction facilitates easy modifications and upgrades to meet evolving industry demands.
In summary, a steel structure food processing plant provides a safe, hygienic, and efficient environment for food production and processing. The use of steel components ensures structural strength, customizable layouts, temperature control, and compliance with food safety regulations. The versatility and adaptability of steel structures make them an ideal choice for constructing food processing facilities.
Main Steel Frame System | |
Main structure | H section steel Q355, alkyd painting, two primary painting, two finish painting. |
Roof purlin | XZ160*60*20*2.5, galvanized |
Wall purlin | XZ160*60*20*2.5, galvanized |
Intensive bolt | Grade 10.9 |
Turn buckle bolt | M20+2, steel Q235, processing |
Anchor bolt | M24, steel Q235, processing |
Ordinary bolt | Galvanized bolt M20 |
Ordinary bolt | Galvanized bolt M12 |
Brace nut | Galvanized bolt M12 |
Bracing System | |
Cross brace | Φ20 round steel bar Q235, process and painted (alkyd painting) |
Angle brace | L50*5 angle steel Q235, process and painted (alkyd painting) |
Column bracing | Φ25 round steel bar Q235, process and painted (alkyd painting) |
Tie bar | Φ127*3 steel pipe Q235, process and painted (alkyd painting) |
Batter brace | Φ32*2.5, Φ12 round steel bar Q235, process and painted (alkyd painting) |
Wall & Roof System | |
Roof panel | Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU) |
Wall panel | Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU) |
Edge cover | 0.5mm color plate, angle Alu. |
Fittings & accessories | Nails, glue etc. |
Unpowered ventilator | Diameter Φ600, stainless steel |
Sky lighting band | 1.2mm FRP, double layer |
Sliding door | sandwich panel door |
Roof drainage system | |
Gutter | 0.5mm color steel plate |
Rainspout pipes | Φ110 PVC pipe |
Qingdao Ruly Steel Engineering Co., Ltd is a professional steel structure design, research, fabrication and construction company, located in Qingdao, China. Our company's steel structure processing plant now covers an area of 35, 000 square meters, plant20, 000 square meters. More than 100 employees. The monthly production capacity for steel structure is more than 2000 Tons.
We could contract the projects such as prefabricated steel structure warehouse, workshop, storage sheds, garage, hangar, chicken shed, car parking, showroom, office buildings, gym, dormitory building, high rise steel residence buildings, oli&gas project, power station, infrastructure buildings, etc.
At present, Our products have been exported to Southeast Asia, South America, Middle East and Africa, Australia, etc. In order to serve better for the exported project, we get certification of AWS D1.1, CE(EN 1090-1: 2009+A1: 2011), ISO 14001, ISO9001, ISO45001, AS/NZS 1554, SGS and BV Certification.
We provide one-stop service for steel structure project, just tell us your requirement, and we will give you what you need.
All the structure components, panels,bolts and sort of accessories will bewell packed with standard package suitable ocean transportation and loaded into 40'HQ.
All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers,who will prevent the goods to be damaged.
1. Professional design team, we could design the drawing as your requirement or calculate the steel quantity based on your drawing.
2. Skilled fabrication team and advanced equipment. We make the independent production schedule to each project.
3. One-stop service: We have completed lots such kinds of projects, we could provide the integrated proposal for your project.
4. Professional QC team will guarantee that we will provide the production and service as your request.
5. After sales service: If it has any questions that need us to do in your process of using, such as the maintain of outside insulation and steel components, just tell us , we will try to provide the service as well as we can.
The following questions we need to know before offering the quotation. Just feel free to fill in what you know.
1 | Location (where will it be built?) | _____country, area |
2 | Size: length*width*height | _____mm*_____mm*_____mm |
3 | wind load (max. wind speed) | _____kn/m2, _____km/h, _____m/s |
4 | snow load (max. snow height) | _____kn/m2, _____mm |
5 | anti-earthquake | _____level |
6 | brickwall needed or not | If yes, 1.2m high or 1.5m high |
7 | thermal insulation | If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; . if not, the metal steel sheets will be ok. The cost of the latter will be much lower than that of the former |
8 | door quantity & size | _____units, _____(width)mm*_____(height)mm |
9 | window quanity & size | _____units, _____(width)mm*_____(height)mm |
10 | crane needed or not | If yes, _____units, max. lifting weight____tons; max. lifting height _____m |
