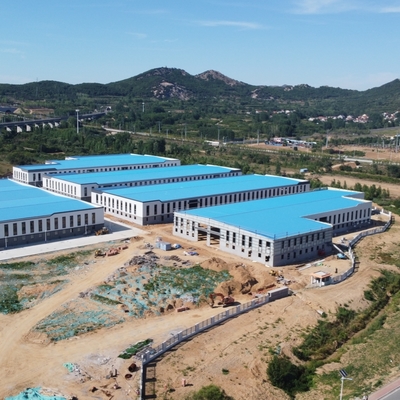

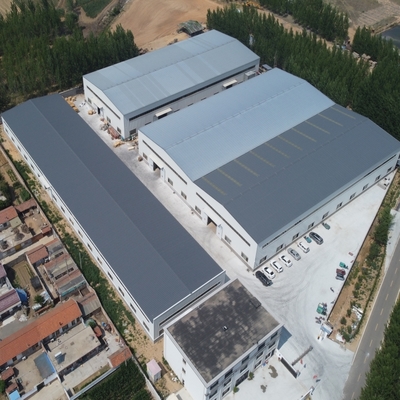

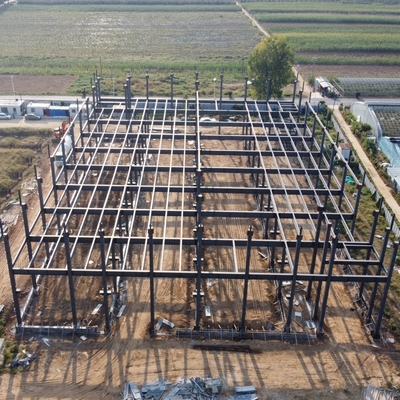

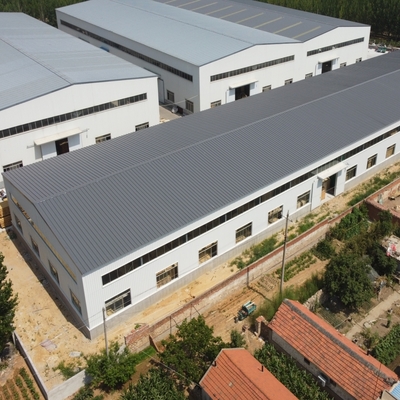

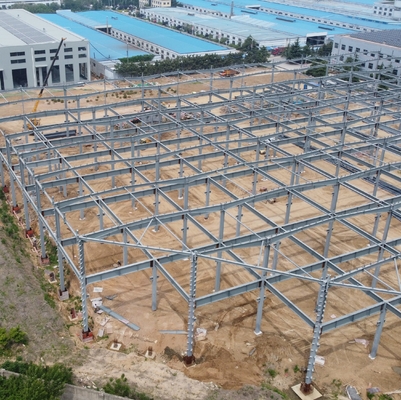

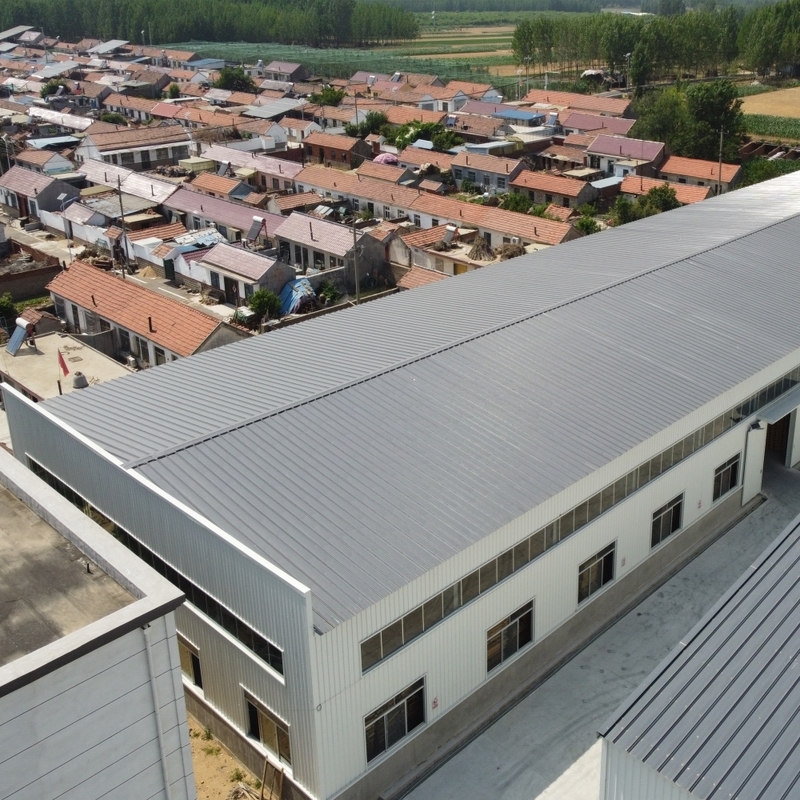

High Strength and Durability Industrial Steel Buildings for Construction and Warehouse/Workshop
Product Specifications
| Attribute |
Value |
| Raw Steel Material |
Q235B, Q355B, ASTM A36 |
| Application |
Steel Workshop, Steel Structure Platform, Structural Roofing, Frame Part |
| Surface Treatment |
Painting or Hot-DIP Galvanized |
| Service Life |
50 Years |
| Wall and Roof |
Steel cladding sheet, Sandwich Panel |
| Columns & Beams |
H-Section Steel |
| Shot Blasting Level |
SA 2.5 |
| Certification |
CE, AISC, SGS, BV, ISO, GB |
| Installation |
Engineer Guidance on Site |
| Drawing |
CAD, TEKLA, 3D Model, PKPM, BIM |
| HS Code |
9406900090 |
| Transport Package |
Standard Export Package or Customer′s Requirement |
| Production Capacity |
30000ton/Year |
| Features |
Prefab Steel Structure, Large Span, Multi-Floor |
| Connection Form |
Bolt Connection |
| Parapet Wall |
As Requested |
Product Description
Industrial Factory Building Construction Prefabricated Steel Frame Plant and Steel Structure Warehouse/Workshop
Key Customer Requirements
- Strength and durability: High-performance steel structures designed to withstand environmental conditions and natural disasters including earthquakes, storms, and fires.
- Aesthetics and flexibility: Modern designs with customizable features to accommodate various project requirements and purposes.
- Sustainability: Environmentally friendly solutions meeting green building standards with energy efficiency and reduced carbon emissions.
- Cost-effectiveness: Economical solutions with rapid construction capabilities to meet tight project timelines.
Material Specifications
| Main Steel Frame |
Column: Q235, Q355 Welded H Section Steel
Beam: Q235, Q355 Welded H Section Steel |
| Secondary Frame |
Purlin: Q235 C and Z purlin
Knee bracing: Q235 Angle Steel
Tie Bar: Q235 Circular Steel Pipe
Bracing: Q235 Round Bar
Column and Horizontal Bracing: Q235 Angle Steel, Round Bar or Steel Pipe |
| Maintenance System |
Roof Panel: EPS Sandwich Panel / Fiber Glass Sandwich Panel / Rock Wool Sandwich Panel / PU Sandwich Panel / Steel Sheet
Wall Panel: Sandwich Panel / Corrugated Steel Sheet |
| Accessories |
Window: Aluminium Alloy Window / PVC Window
Door: Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door
Downspout: PVC |
| Structure Usage |
Up to 50 years |
| Finishing Options |
Vast array of colors and textures available |
| Paint Options |
Alkyd painting, two primary painting, two finish painting (gray paint, red paint, white paint, epoxy zinc etc.) Or Galvanized. |
Project Showcase
Project Usage: High-End Intelligent Hydraulic Machine Tool Equipment
Size of the plant: Total Area 9,702 Sqm
Steel Structure Weight: 630Ton
Project Usage: Logistics Steel Warehouse For High-Speed Rail Station
Size of the plant: Total Area 24,570 Sqm
Steel Structure Weight: 985Ton
Project Usage: Textile Manufacturing Machine Tool Equipment
Size of the plant: Total Area 6,615 Sqm
Steel Structure Weight: 750Ton
Our Company
Qingdao Ruly Steel Engineering Co., Ltd is a professional steel structure fabrication and engineering company located in Qingdao, China. We integrate steel structure design, research and development, manufacturing and installation for various project types including prefabricated steel workshops, warehouses, logistics parks, and other civil building systems.
Our 35,000 square meter facility includes a 20,000 square meter processing plant with over 100 employees and a monthly production capacity exceeding 1500 tons. We produce various steel structure components including light/heavy H steel, BOX steel, Cross shaped section steel, and more.
We maintain ISO9001:2008 quality management, ISO14001:2004 environmental system, and GB/T28001:2001 occupational health certifications, along with ASTM and SGS product certifications.
Certifications
Our Services
- Structural steel fabrication, painting, galvanizing, pre-assembly
- Designing, fabrication and installation for prefabricated steel structure buildings
- Deepening or designing fabrication drawings based on your architectural plans
- Technical advice for usage, maintenance and improvements
Quality Control
Raw Material Quality Control
- Thickness tolerance <0.25mm
- Yield and tension strength testing in-house
- Third party inspection certificate
- Supply traceable mill certificate
Structural Steel Fabrication Quality Control
- 100% testing dimension tolerance <1mm
- 20% sample welding line ultrasonic testing
- 20% magnetic powder testing
- Supply third-party inspection assistance
Surface Treatment Quality Control
- Shot blasting grade Sa. 2.5
- Paint primer within 5 hours after shot blasting
- Dry Film Thickness (DFT) >75UM
- Pre-assembly testing of connection details
Packing and Transport
All structure components, panels, bolts and accessories are packed with standard export packaging suitable for ocean transportation and loaded into 40'HQ containers. Our skilled workers use cranes and forklifts to prevent damage during loading.
Components
Frequently Asked Questions
Q: You are manufacture factory or trading company?
A: We are manufacture factory. And you are welcomed to visit us at any time. The quality control flow and sales team will show you our professionalism. Also you will can get best and most competitive price after visiting us.
Q: Is your price competitive compared with other companies?
A: Our business objectives are to give the best price with same quality and best quality with the same price. We will do everything we can to reduce your cost and guarantee you get the best product that you paid for.
Q: Can you send engineers or whole team to install my project?
A: We will give detailed installation drawings for free. We can send engineers as installation director or a team upon request.
Q: Do you accept container loading inspection?
A: You are welcomed to send an inspector, not only for the container loading, but any time during the production time.
Q: Do you offer designing service for us?
A: Yes, we could design full solution drawings as your requirements. By using AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (Xsteel) and etc.
Q: What is the delivery time?
A: Delivery time depends on order quantities. In general the delivery time to nearest seaport in China will be 40 days after receiving deposit.
Q: How can you get a quotation for your projects?
A: You can contact us by email, phone, WhatsApp,Viber and so on 24*7 and you will get reply within 8 hours.
Why Choose Us?
- Professional design team capable of creating custom drawings or calculating steel quantities
- Skilled fabrication team with advanced equipment and project-specific production schedules
- One-stop service with integrated project proposals
- Dedicated QC team ensuring product and service quality
- Comprehensive after-sales service including maintenance support
