Customizable Industrial Steel Buildings
High-quality prefabricated steel structures designed for various environmental conditions with a 50-year service life.
Product Specifications
| Attribute |
Value |
| Raw Steel Material |
Q235B, Q355B, ASTM A36 |
| Application |
Steel Workshop, Steel Structure Platform, Structural Roofing, Frame Part |
| Surface Treatment |
Painting or Hot-DIP Galvanized |
| Service Life |
50 Years |
| Wall and Roof |
Steel cladding sheet, Sandwich Panel |
| Columns & Beams |
H-Section Steel |
| Shot Blasting Level |
SA 2.5 |
| Certification |
CE, AISC, SGS, BV, ISO, GB |
| Installation |
Engineer Guidance on Site |
| Drawing |
CAD, TEKLA, 3D Model, PKPM, BIM |
| HS Code |
9406900090 |
| Transport Package |
Standard Export Package or Customer′s Requirement |
| Production Capacity |
30000ton/Year |
| Features |
Prefab Steel Structure, Large Span, Multi-Floor |
| Connection Form |
Bolt Connection |
| Parapet Wall |
As Requested |
Key Customer Requirements
- Strength and durability: Withstands environmental conditions and natural disasters including earthquakes, storms, and fires.
- Aesthetics and flexibility: Modern appearance with customizable design features for various project requirements.
- Sustainability: Meets environmental standards with energy-efficient materials and reduced carbon emissions.
- Cost-effectiveness: Rapid construction capability lowers overall building costs and accelerates project delivery.
Material Specifications
| Main Steel Frame |
Column: Q235, Q355 Welded H Section Steel
Beam: Q235, Q355 Welded H Section Steel |
| Secondary Frame |
Purlin: Q235 C and Z purlin
Knee bracing: Q235 Angle Steel
Tie Bar: Q235 Circular Steel Pipe
Bracing: Q235 Round Bar
Column and Horizontal Bracing: Q235 Angle Steel, Round Bar or Steel Pipe |
| Maintenance System |
Roof Panel: EPS Sandwich Panel / Fiber Glass Sandwich Panel / Rock Wool Sandwich Panel / PU Sandwich Panel / Steel Sheet
Wall Panel: Sandwich Panel / Corrugated Steel Sheet |
| Accessories |
Window: Aluminium Alloy Window / PVC Window
Door: Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door
Downspout: PVC |
| Structure Usage |
Up to 50 years |
| Finishing Options |
Vast array of colors and textures available |
| Paint Options |
Alkyd painting, two primary painting, two finish painting (gray paint, red paint, white paint, epoxy zinc etc.) Or Galvanized. |

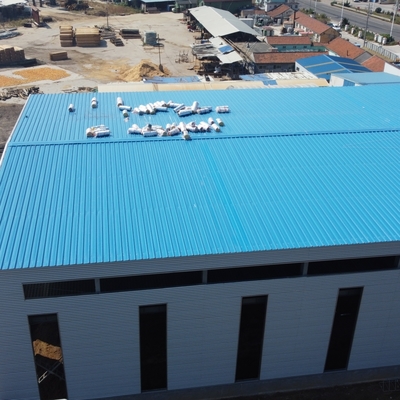

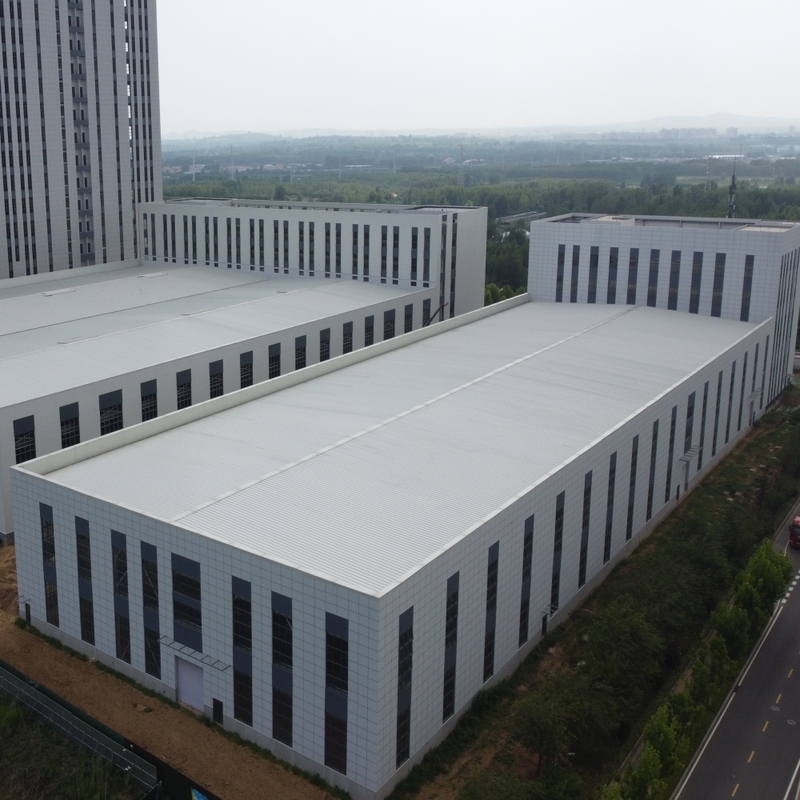

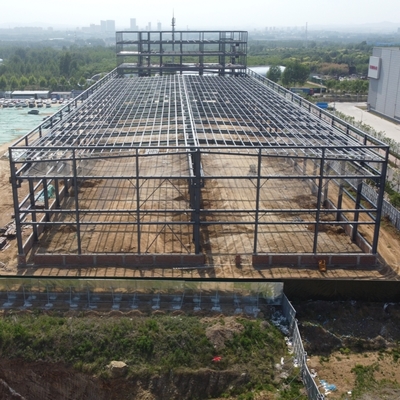

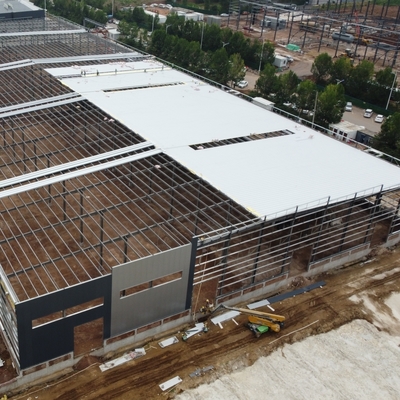

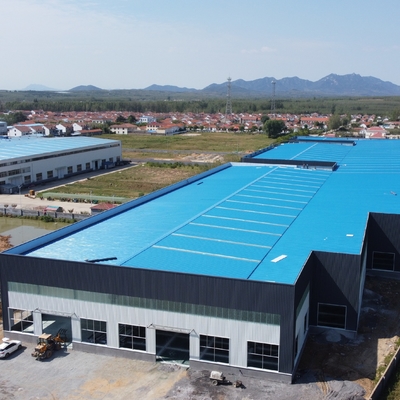

Project Showcase
Project Usage: High-End Intelligent Hydraulic Machine Tool Equipment
Size of the plant: Total Area 9,702 Sqm
Steel Structure Weight: 630Ton
Project Usage: Logistics Steel Warehouse For High-Speed Rail Station
Size of the plant: Total Area 24,570 Sqm
Steel Structure Weight: 985Ton
Project Usage: Textile Manufacturing Machine Machine Tool Equipment
Size of the plant: Total Area 6,615 Sqm
Steel Structure Weight: 750Ton
About Qingdao Ruly Steel Engineering Co., Ltd
Professional steel structure fabrication and engineering company located in Qingdao, China, integrating design, R&D, manufacturing and installation. Our project portfolio includes prefabricated steel workshops, warehouses, logistics parks, high-rise buildings, exhibition centers, stadiums, and industrial facilities.
Our 35,000 square meter facility with 20,000 square meters of plant space employs over 100 staff with a monthly production capacity exceeding 1500 tons. We manufacture various steel components including light/heavy H steel, BOX steel, large diameter submerged arc straight-weld pipes, and structural fittings.
Certified under ISO9001, ISO14001, GB/T28001 standards with ASTM and SGS certifications, we provide comprehensive solutions from design to installation.
Our Certifications
Our Services
- Structural steel fabrication, painting, galvanizing, and pre-assembly
- Design, fabrication and installation of prefabricated steel structures
- Detailed fabrication drawings based on your architectural plans
- Technical advice for usage, maintenance and improvements
Quality Control
- Raw material quality control: Thickness tolerance <0.25mm, yield and tension strength testing, third party inspection
- Fabrication quality control: Dimension tolerance <1mm, 20% sample welding line ultrasonic testing, magnetic powder testing
- Surface treatment: Shot blasting grade Sa. 2.5, paint primer within 5 hours, Dry Film Thickness >75UM
- Pre-assembly testing of all connection details
Packing and Transport
All components, panels, bolts and accessories are packed in standard export packages suitable for ocean transportation in 40'HQ containers. Our skilled workers use cranes and forklifts to prevent damage during loading.
Frequently Asked Questions
Q: You are manufacture factory or trading company?
A: We are manufacture factory. And you are welcomed to visit us at any time. The quality control flow and sales team will show you our professionalism. Also you will can get best and most competitive price after visiting us.
Q: Is your price competitive compared with other companies?
A: Our business objectives are to give the best price with same quality and best quality with the same price. We will do everything we can to reduce your cost and guarantee you get the best product that you paid for.
Q: Can you send engineers or whole team to install my project?
A: We will give detailed installation drawings for free. We can send engineers as installation director or a team upon request.
Q: Do you accept container loading inspection?
A: You are welcomed to send an inspector, not only for the container loading, but any time during the production time.
Q: Do you offer designing service for us?
A: Yes, we could design full solution drawings as your requirements. By using AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (Xsteel) and etc. we can design complex industrial buildings.
Q: What is the delivery time?
A: Delivery time depends on order quantities. In general the delivery time to nearest seaport in China will be 40 days after receiving deposit.
Q: How can you get a quotation for your projects?
A: You can contact us by email, phone, WhatsApp,Viber and so on 24*7 and you will get reply within 8 hours.
Why Choose Us?
- Professional design team capable of custom drawings and steel quantity calculations
- Skilled fabrication team with advanced equipment and project-specific production schedules
- One-stop service with integrated project proposals
- Dedicated QC team ensuring product and service quality
- Comprehensive after-sales service including maintenance support
