Industrial Steel Structure Fabrication Prefabricated Portal Steel Structure

Industrial Steel Structure Fabrication Prefabricated Portal Steel Structure
Industrial Steel Structure Fabrication Prefabricated Portal Steel Structure Industrial Steel Structure Fabrication Prefabricated Portal Steel Structure Industrial Steel Structure Fabrication Prefabricated Portal Steel Structure Industrial Steel Structure Fabrication Prefabricated Portal Steel Structure

Large Image :  Industrial Steel Structure Fabrication Prefabricated Portal Steel Structure

Product Details:
Place of Origin: Qingdao,China
Brand Name: Ruly Steel
Certification: CE,AISC,SGS, BV, ISO,GB
Model Number: RULYC015
Payment & Shipping Terms:
Minimum Order Quantity: 200 square meters
Price: USD19-USD39 Per Square Meter
Packaging Details: 40HQ/Open top container
Delivery Time: 20 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20,000 square meters or 1,500 tons per month

Industrial Steel Structure Fabrication Prefabricated Portal Steel Structure

Description
Features: Prefab Steel Structure, Large Span, Multi-Floor Raw Steel Material: Q235B, Q355B, ASTM A36
Application: Steel Workshop, Steel Structure Platform, Structural Roofing, Frame Part Surface Treatment: Painting Or Hot-DIP Galvanized
Service Life: 50 Years Wall And Roof: Steel Cladding Sheet,Sandwich Panel
Columns & Beams: H-Section Steel Shot Blasting Level: SA 2.5
Certification: CE, AISC, SGS, BV, ISO, GB Installation: Engineer Guidance On Site
Drawing: CAD, TEKLA, 3D Model, PKPM, BIM HS Code: 9406900090
Transport Package: Standard Export Package Or Customer′s Requirement Production Capacity: 30000ton/Year
Connection Form: Bolt Connection

Prefabricated Metal Steel Structure Warehouse Portal Steel Structure Building Steel Structure Industrial Park Workshop

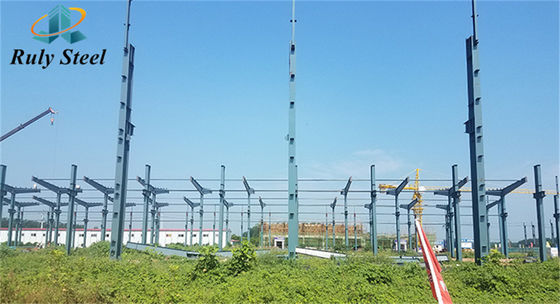

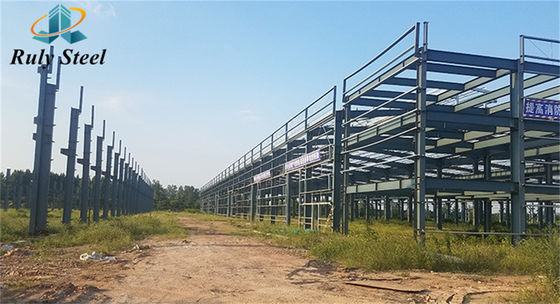

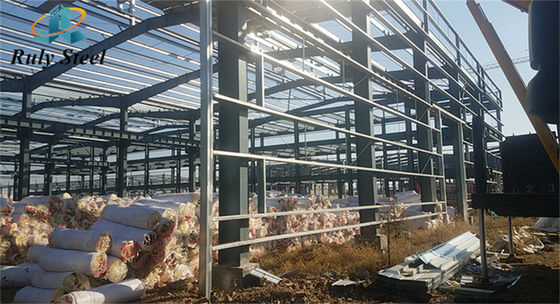

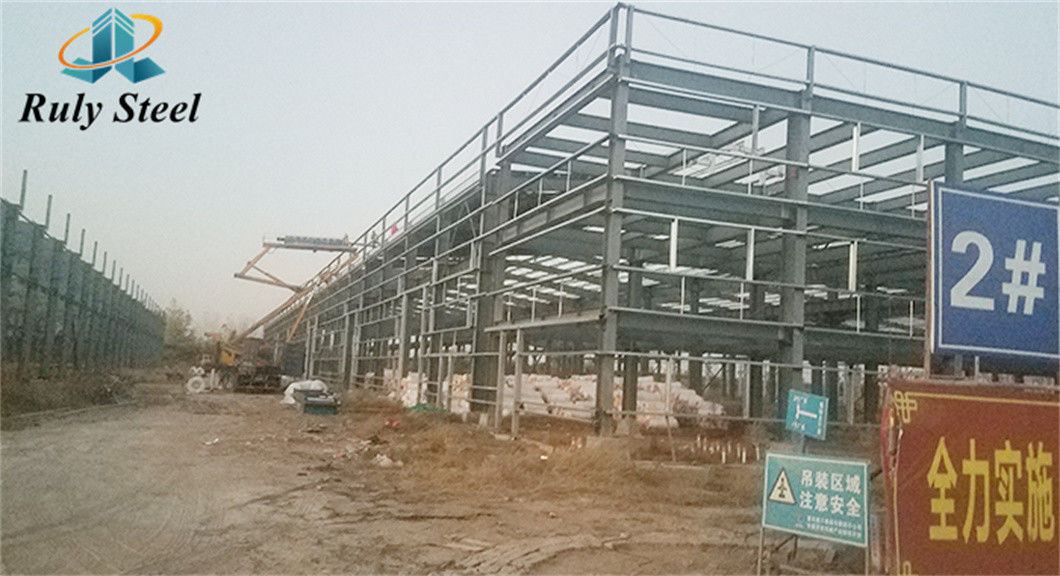

Project description:



The steel structure industrial park workshop is a large-scale manufacturing facility designed specifically for the production and assembly of steel structures. The workshop is typically a spacious and well-organized space, equipped with advanced machinery and tools to facilitate the fabrication process.



The workshop consists of several areas dedicated to different stages of production. The raw materials area is where steel beams, plates, and other necessary components are stored and prepared for fabrication. This area is equipped with cranes and forklifts to handle heavy materials and transport them to the appropriate workstations.



The fabrication area is where the steel components are cut, shaped, and welded according to the design specifications. Skilled workers use various cutting and welding machines, such as plasma cutters and arc welders, to shape the steel and join the components together. This area is equipped with ventilation systems to ensure a safe working environment.



Once the components are fabricated, they move to the assembly area. Here, workers assemble the steel structures using bolts, nuts, and other fasteners. The assembly area is designed to accommodate large structures, and it may have overhead cranes or gantry systems to assist in lifting and positioning the components.



Quality control is an essential part of the workshop. Dedicated inspectors conduct inspections at different stages of production to ensure that the steel structures meet the required standards and specifications. This may involve non-destructive testing, dimensional checks, and visual inspections.



The workshop may also have additional facilities, such as a painting booth or surface treatment area, where steel structures are coated with protective finishes to enhance their durability and resistance to corrosion.



Overall, the steel structure industrial park workshop is a crucial component of the steel construction industry, providing a controlled and efficient environment for the fabrication and assembly of high-quality steel structures.



Items Specification
Main steel frame Colume Q235,Q355 welded H section steel
Beam Q235,Q355 welded H section steel







Secondary frame

Purlin Q235 C and Z purlin
Knee brace Q235 angle steel
Tie rod Q235 circular steel pipe
Brace A235 round bar
Vertical and horizontal support Q235 angle steel, round bar or steel pipe
Maintenance system Roof panel EPS sandwich panel/glass fiber sandwich panel/rock wool sandwich panel/Pu sandwich panel/steel sheet
Wall panel Sandwich panel/corrugated steel sheet



Accessories

Window Aluminium alloy window/PVC window/sandwich panel window
Door Sliding sandwich panel door/rolling metal door/personal door
Rainspout PVC
Live load on roof In 120kg/sqm(color steel panel surrounded)
Wind resistance grade 12 grades
Earthquake-resistance 8 grades
Structure usage Up to 50 years
Finishing options Vast array of colors and textures available
Paint options Alkyd paiting, two primary paiting, two finish paiting(Gray paint, red paint, white paint, epoxy zinc etc.) or galvanized







Company profile:



Qingdao Ruly Steel Engineering Co., Ltd is a professional steel structure design, research, fabrication and construction company, located in Qingdao, China. Our company's steel structure processing plant now covers an area of 35, 000 square meters, plant20, 000 square meters. More than 100 employees. The monthly production capacity for steel structure is more than 2000 Tons.

We could contract the projects such as prefabricated steel structure warehouse, workshop, storage sheds, garage, hangar, chicken shed, car parking, showroom, office buildings, gym, dormitory building, high rise steel residence buildings, oli&gas project, power station, infrastructure buildings, etc.

At present, Our products have been exported to Southeast Asia, South America, Middle East and Africa, Australia, etc. In order to serve better for the exported project, we get certification of AWS D1.1, CE(EN 1090-1: 2009+A1: 2011), ISO 14001, ISO9001, ISO45001, AS/NZS 1554, SGS and BV Certification.

We provide one-stop service for steel structure project, just tell us your requirement, and we will give you what you need.



Industrial Steel Structure Fabrication Prefabricated Portal Steel Structure 0



Processing and fabrication:



Industrial Steel Structure Fabrication Prefabricated Portal Steel Structure 1Industrial Steel Structure Fabrication Prefabricated Portal Steel Structure 2
Industrial Steel Structure Fabrication Prefabricated Portal Steel Structure 3Industrial Steel Structure Fabrication Prefabricated Portal Steel Structure 4

Our service:





Industrial Steel Structure Fabrication Prefabricated Portal Steel Structure 5

Our certificate:

Industrial Steel Structure Fabrication Prefabricated Portal Steel Structure 6

Industrial Steel Structure Fabrication Prefabricated Portal Steel Structure 7

Packing and loading:



Industrial Steel Structure Fabrication Prefabricated Portal Steel Structure 8

Industrial Steel Structure Fabrication Prefabricated Portal Steel Structure 9

Industrial Steel Structure Fabrication Prefabricated Portal Steel Structure 10

All the structure components, panels,bolts and sort of accessories will bewell packed with standard package suitable ocean transportation and loaded into 40'HQ.

All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers,who will prevent the goods to be damaged.



Why us:



1. Professional design team, we could design the drawing as your requirement or calculate the steel quantity based on your drawing.

2. Skilled fabrication team and advanced equipment. We make the independent production schedule to each project.

3. One-stop service: We have completed lots such kinds of projects, we could provide the integrated proposal for your project.

4. Professional QC team will guarantee that we will provide the production and service as your request.

5. After sales service: If it has any questions that need us to do in your process of using, such as the maintain of outside insulation and steel components, just tell us , we will try to provide the service as well as we can.

Industrial Steel Structure Fabrication Prefabricated Portal Steel Structure 11

Industrial Steel Structure Fabrication Prefabricated Portal Steel Structure 12

Industrial Steel Structure Fabrication Prefabricated Portal Steel Structure 13

How to quote:



The following questions we need to know before offering the quotation. Just feel free to fill in what you know.



1 Location (where will it be built?) _____country, area
2 Size: length*width*height _____mm*_____mm*_____mm
3 wind load (max. wind speed) _____kn/m2, _____km/h, _____m/s
4 snow load (max. snow height) _____kn/m2, _____mm
5 anti-earthquake _____level
6 brickwall needed or not If yes, 1.2m high or 1.5m high
7 thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; . if not, the metal steel sheets will be ok. The cost of the latter will be much
lower than that of the former
8 door quantity & size _____units, _____(width)mm*_____(height)mm
9 window quanity & size _____units, _____(width)mm*_____(height)mm
10 crane needed or not If yes, _____units, max. lifting weight____tons; max. lifting height _____m
