Product Details:
|
| Application: | Prefabricated Logistics Warehouse Building Steel Structure | Type: | Light, Space Frame Structure |
|---|---|---|---|
| Surface Processing: | Painted Or Galvanized | Shot Blasting Level: | Sa 2.5 |
| Service Life: | 50 Years | Working Scope: | Design,Fabrication, Installation |
| Columns & Beams: | H-section Steel | ||
| High Light: | Sa2.5 Construction Steel Structure,SGS Galvanized Construction Steel Structure,Galvanized Steel Structure Exhibition Hall |
||

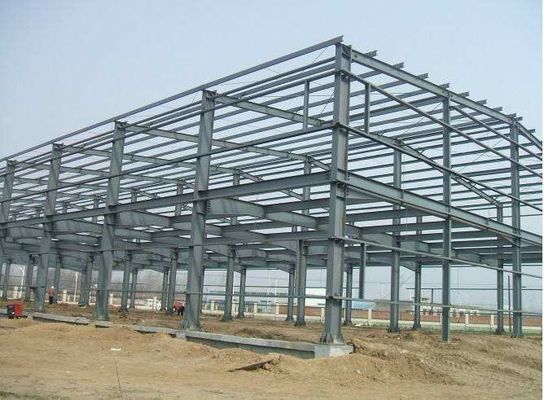

Construction Steel Structure 4s Car Shop/Warehouse/Workshop/Exhibition Hall
Construction Steel Structure 4s Car Shop/Warehouse/Workshop/Exhibition Hall:
1. The large available space of the steel structure enables more vehicles to be exhibited, with good lighting effect and bright interior space to perfectly display the advantages of vehicles.
2. Low cost and high efficiency, suitable price, high quality materials, cheap, fast construction speed, saving time and effort.
3. Convenient transportation, low transportation price and security during transportation.
4. Beautiful shape, can be customized design, bring you satisfactory results.
5. Longer service life, good fire and shock effect.
| Items | Specification | |
| Main Steel Frame | Column | Q235, Q345 Welded H Section Steel |
| Beam | Q235, Q345 Welded H Section Steel | |
| Secondary Frame | Purlin | Q235 C and Z purlin |
| Knee brace | Q235 Angle Steel | |
| Tie Rod | Q235 Circular Steel Pipe | |
| Brace | Q235 Round Bar | |
| Vertical and Horizontal Support | Q235 Angle Steel, Round Bar or Steel Pipe | |
| Maintenance system | Roof Panel | EPS Sandwich Panel / Glass Fiber Sandwich Panel / Rock Wool Sandwich Panel / Pu Sandwich Panel /Steel Sheet |
| Wall Panel | Sandwich Panel / Corrugated Steel Sheet | |
| Accessories | Window | Aluminiumn Alloy Window / PVC Window / Sandwich Panel Window |
| Door | Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door | |
| Rainspout | PVC | |
| Live load on Roof | In 120kg/Sqm (Color steel panel surrounded) | |
| Wind Resistance Grade | 12 Grades | |
| Earthquake-resistance | 8 Grades | |
| Structure Usage | Up to 50 years | |
| Temperature | Suitable temperature.-50°C~+50°C | |
| Certification | CE, SGS, ISO9001:2008, ISO14001:2004 | |
| Finishing Options | Vast array of colors and textures available | |
| Paint Options | Alkyd paiting, two primary painting, two finish painting (gray paint, red paint, white paint, epoxy zinc etc.) Or Galvanized. |
|
The floor space of our steel structre fabrication factory is 35,000㎡, and the workshop area is 20000㎡. We own three light/heavy H steel production lines, BOX production lines, C/Z purlin production lines and various types of profiling steel sheet machines with advanced equipment such as plasma cutting machine.
We will provide construction drawing before installation for each project. We could also dispatch our engineer to guide installation on site or we install it by our construction team.
The following question we need to know before making the price. Just feel free to fill what you know.
| 1 | Location (where will be built?) | _____country, area |
| 2 | Size: length*width*height | _____mm*_____mm*_____mm |
| 3 | wind load (max. wind speed) | _____kn/m2, _____km/h, _____m/s |
| 4 | snow load (max. snow height) | _____kn/m2, _____mm |
| 5 | anti-earthquake | _____level |
| 6 | brickwall needed or not | If yes, 1.2m high or 1.5m high |
| 7 | thermal insulation | If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; . if not, the metal steel sheets will be ok. The cost of the latter will be much lower than that of the former |
| 8 | door quantity & size | _____units, _____(width)mm*_____(height)mm |
| 9 | window quanity & size | _____units, _____(width)mm*_____(height)mm |
| 10 | crane needed or not | If yes, _____units, max. lifting weight____tons; max. lifting height _____m |
