Product Details:
|
Application: | Multi-Storey Steel Structure Warehouse | Type: | Prefabricated Steel Structure Building |
---|---|---|---|
Raw Steel Material: | Q235B, Q355B, ASTM A36 | Shot Blasting Level: | Sa 2.5 |
Service Life: | 50 Years | Wall And Roof: | Rock Wool |
Surface Treatment: | Painting | Working Scope: | Design,Fabrication, Installation |
Columns & Beams: | H-section Steel | Standard: | AISC, ASTM, BS, DIN, GB, JIS |
Highlight: | SGS Multi Storey Steel Structure Warehouse,Sa 2.5 Prefabricated Steel Structure Warehouse,Multi Storey Prefabricated Steel Structure Building |

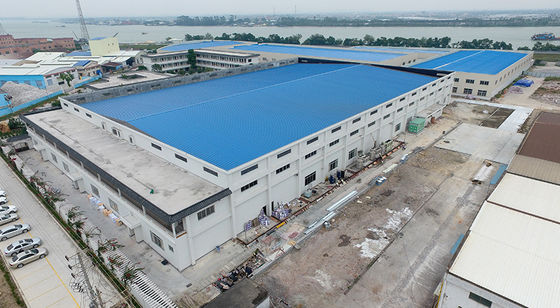

Multi-Storey Steel Structure Warehouse/Prefabricated Steel Structure Building
Multi-Storey Steel Structure Warehouse/Prefabricated Steel Structure Building, which opens up the industry boundaries between real estate, construction and metallurgical industries, and integrates into a new industrial system. This is generally optimistic about the steel structure building system industry.
Compared with traditional concrete buildings, steel structure buildings use steel plates or section steel instead of reinforced concrete, which have higher strength and better seismic performance. And because these components can be manufactured in the factory and installed on-site, the construction period is greatly shortened. Due to the reusability of steel, construction waste can be greatly reduced and it is more environmentally friendly. Therefore, it is widely adopted by countries all over the world and used in industrial and civil buildings.
At present, the application of steel structure in high-rise and super high-rise buildings is becoming more and more mature, and it has gradually become the mainstream construction technology, which is the development direction of future buildings.
A steel structure building is a building with a load-bearing structure composed of construction steel. Generally, beams, columns, trusses and other components made of section steel and steel plates constitute the load-bearing structure. Together with the roof, floor and walls, and other envelope structures, they form the replanted building.
Items | Specification | |
Main Steel Frame | Column | Q235, Q345 Welded H Section Steel |
Beam | Q235, Q345 Welded H Section Steel | |
Secondary Frame | Purlin | Q235 C and Z purlin |
Knee brace | Q235 Angle Steel | |
Tie Rod | Q235 Circular Steel Pipe | |
Brace | Q235 Round Bar | |
Vertical and Horizontal Support | Q235 Angle Steel, Round Bar or Steel Pipe | |
Maintenance system | Roof Panel | EPS Sandwich Panel / Glass Fiber Sandwich Panel / Rock Wool Sandwich Panel / Pu Sandwich Panel /Steel Sheet |
Wall Panel | Sandwich Panel / Corrugated Steel Sheet | |
Accessories | Window | Aluminiumn Alloy Window / PVC Window / Sandwich Panel Window |
Door | Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door | |
Rainspout | PVC | |
Live load on Roof | In 120kg/Sqm (Color steel panel surrounded) | |
Wind Resistance Grade | 12 Grades | |
Earthquake-resistance | 8 Grades | |
Structure Usage | Up to 50 years | |
Temperature | Suitable temperature.-50°C~+50°C | |
Certification | CE, SGS, ISO9001:2008, ISO14001:2004 | |
Finishing Options | Vast array of colors and textures available | |
Paint Options | Alkyd paiting, two primary painting, two finish painting (gray paint, red paint, white paint, epoxy zinc etc.) Or Galvanized. |
The floor space of our steel structre fabrication factory is 35,000㎡, and the workshop area is 20000㎡. We own three light/heavy H steel production lines, BOX production lines, C/Z purlin production lines and various types of profiling steel sheet machines with advanced equipment such as plasma cutting machine.
1. Structural steel fabrication, painting , galvanizing , pre-assembly
2. Designing, fabrication and installation for Prefabricated steel structure building.
3. Deepen or design the fabrication drawing or shop drawing based on your architectural drawing and construction drawing
4. Engineering consulting service
The following question we need to know before making the price. Just feel free to fill what you know.
1 | Location (where will be built?) | _____country, area |
2 | Size: length*width*height | _____mm*_____mm*_____mm |
3 | wind load (max. wind speed) | _____kn/m2, _____km/h, _____m/s |
4 | snow load (max. snow height) | _____kn/m2, _____mm |
5 | anti-earthquake | _____level |
6 | brickwall needed or not | If yes, 1.2m high or 1.5m high |
7 | thermal insulation | If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; . if not, the metal steel sheets will be ok. The cost of the latter will be much lower than that of the former |
8 | door quantity & size | _____units, _____(width)mm*_____(height)mm |
9 | window quanity & size | _____units, _____(width)mm*_____(height)mm |
10 | crane needed or not | If yes, _____units, max. lifting weight____tons; max. lifting height _____m |
