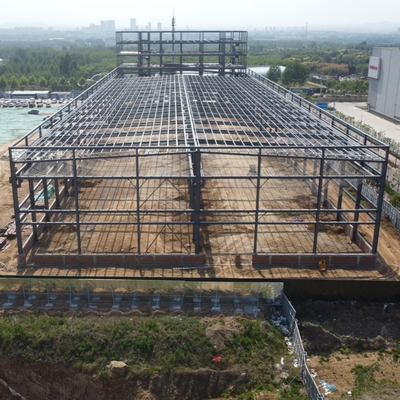

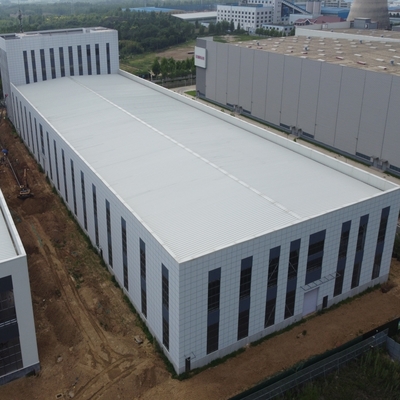

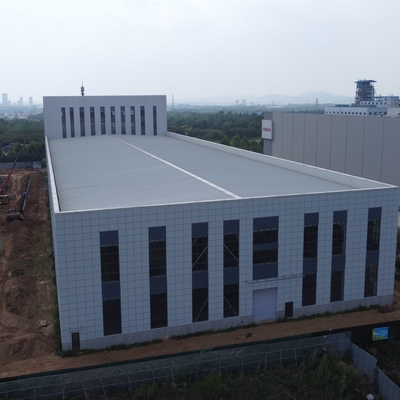

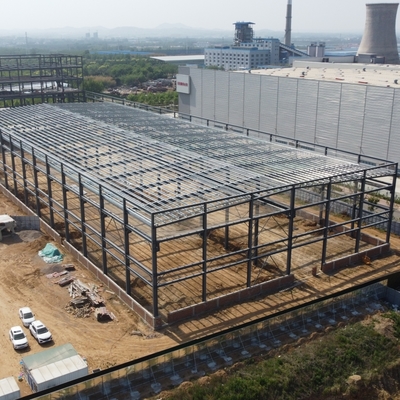

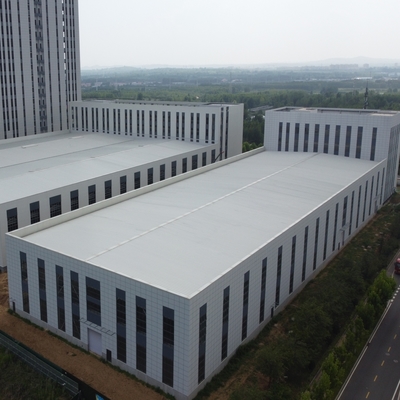

Prefabricated Steel Structure Workshop 200m x 40m with Rock Wool Insulation

Prefabricated Steel Structure Workshop 200m x 40m with Rock Wool Insulation
Prefabricated Steel Structure Workshop 200m x 40m with Rock Wool Insulation
Prefabricated Steel Structure Workshop 200m x 40m with Rock Wool Insulation Prefabricated Steel Structure Workshop 200m x 40m with Rock Wool Insulation Prefabricated Steel Structure Workshop 200m x 40m with Rock Wool Insulation Prefabricated Steel Structure Workshop 200m x 40m with Rock Wool Insulation Prefabricated Steel Structure Workshop 200m x 40m with Rock Wool Insulation Prefabricated Steel Structure Workshop 200m x 40m with Rock Wool Insulation Prefabricated Steel Structure Workshop 200m x 40m with Rock Wool Insulation

Large Image :  Prefabricated Steel Structure Workshop 200m x 40m with Rock Wool Insulation

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV, ISO
Model Number: Ruly0380
Payment & Shipping Terms:
Minimum Order Quantity: 300 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: Steel frame pallets and loaded into 40’HQ
Delivery Time: 30 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 20000 Square Meter Per Month
Contact Now

Prefabricated Steel Structure Workshop 200m x 40m with Rock Wool Insulation

Description
Application: Prefabricated Workshop Buildings Type: Steel Structure Workshop
Raw Steel Material: Q235B, Q355B, ASTM A36 Shot Blasting Level: Sa 2.5
Service Life: 50 Years Wall And Roof: Rock Wool
Surface Treatment: Painting Working Scope: Design,Fabrication, Installation
Columns & Beams: H-section Steel Standard: AISC, ASTM, BS, DIN, GB, JIS
Highlight:

Q355B Prefabricated Steel Structure Warehouse

,

Steel Structure Warehouse 200m×40m

,

Sa 2.5 Prefabricated Workshop Buildings

Prefabricated Steel Structure Warehouse Concrete Workshop 200m×40m
Product Specifications
Attribute Value
Application Prefabricated Workshop Buildings
Type Steel Structure Workshop
Raw steel material Q235B, Q355B, ASTM A36
Shot blasting level Sa 2.5
Service life 50 Years
Wall and Roof Rock wool
Surface treatment Painting
Working scope Design, Fabrication, Installation
Columns & Beams H-section steel
Standard AISC, ASTM, BS, DIN, GB, JIS
Project Overview

This prefabricated steel structure warehouse features a 200m × 40m concrete workshop design with welded H-section steel columns and beams connected by high-strength bolts, forming the main frame structure. The steel structure combines high strength with material efficiency, offering reliability and architectural versatility.

Steel Structure Material Specifications
Steel Frame H section steel | Q235/Q355 steel plate thickness: 8-30mm
Welding Automatic submerged arc welding
Rust removal Sand blasting
Surface finish Alkyd paint or galvanized
Intensive bolt M20, Grade 10.9
Supporting System Angle brace: L50x4, Steel Q235, processed and painted
Horizontal brace: Φ20, Steel Q235, processed and painted
Column brace: Φ20, Steel Q235, processed and painted
Tie rod: Φ89*3, Steel Q235, processed and painted
Ordinary bolt M12 Galvanized bolt
Roof System Purlin: C160*60*2.5, Steel Q235, galvanized and painted
Roof panel: Sandwich panel or corrugated steel sheet
Sky light: 6mm thick PVC
Accessories: Glass cement, self-tapping screws, etc.
Edge cover: 0.4mm steel sheet profile trimming
Gutter: 0.4mm thick sheet steel profile or galvanized sheet
Down pipe: Φ110PVC
Walls Purlin: C160*60*2.5, Steel Q235, painted
Wall: Sandwich panel or corrugated steel plate
Accessories: Glass cement, self-tapping screws, etc.
Edge cover: 0.4mm steel sheet profile trimming
Ventilation: Ventilation ball
Doors & windows: Rolling door/sliding door PVC/alu/steel/window
Our Manufacturing Facility

Our 35,000㎡ steel structure fabrication facility includes 20,000㎡ of workshop space equipped with multiple production lines for H steel, BOX sections, C/Z purlins, and profiling steel sheets. Advanced equipment includes plasma cutting machines for precision fabrication.

Prefabricated Steel Structure Workshop 200m x 40m with Rock Wool Insulation 0
Service Scope
  • Structural steel fabrication, painting, galvanizing, and pre-assembly
  • Complete design, fabrication, and installation of prefabricated steel structures
  • Detailed fabrication drawings based on architectural plans
  • Engineering consulting services
Prefabricated Steel Structure Workshop 200m x 40m with Rock Wool Insulation 1
Packaging and Transportation

All structural components, panels, bolts, and accessories are securely packed for ocean transportation in 40'HQ containers. Our skilled workers use cranes and forklifts at our factory loading site to ensure damage-free loading.

Prefabricated Steel Structure Workshop 200m x 40m with Rock Wool Insulation 2
