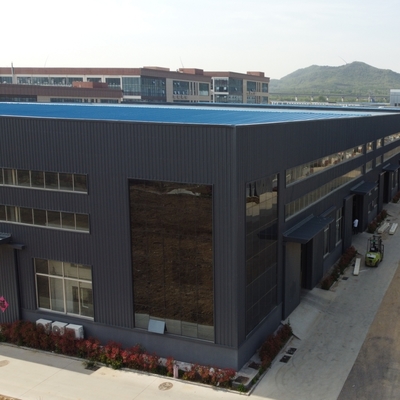

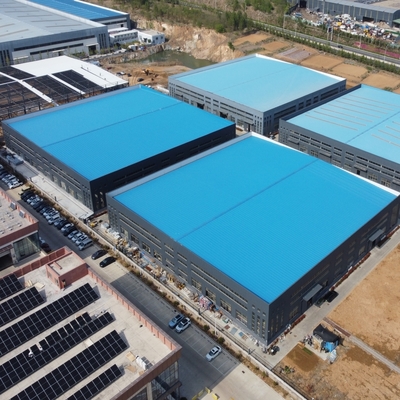

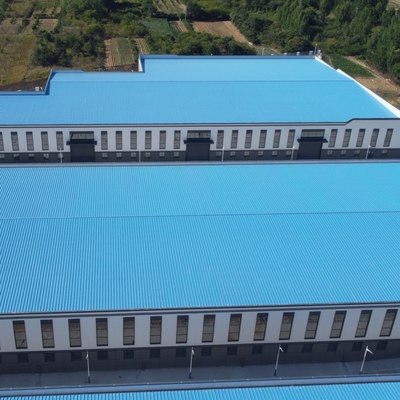

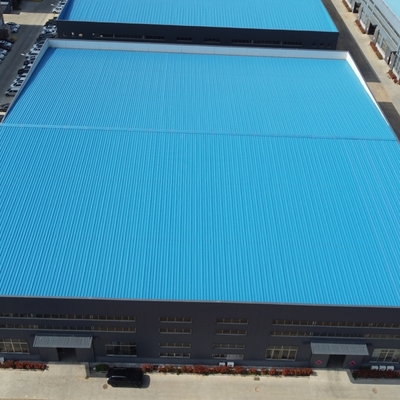

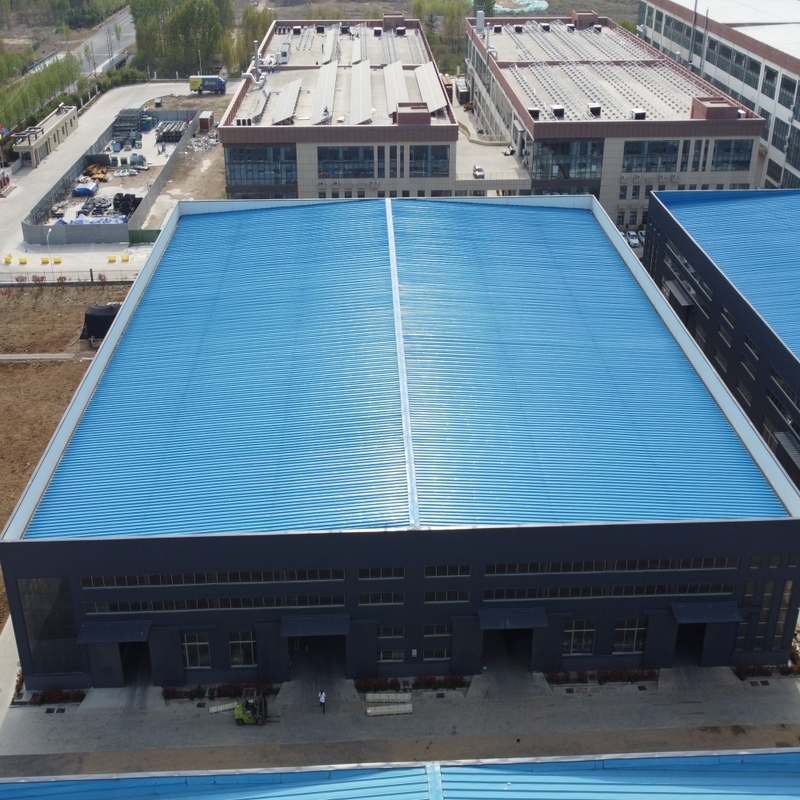

Prefabricated Steel Structure Warehouse with H-Section Beams

Prefabricated Steel Structure Warehouse with H-Section Beams
Prefabricated Steel Structure Warehouse with H-Section Beams
Prefabricated Steel Structure Warehouse with H-Section Beams Prefabricated Steel Structure Warehouse with H-Section Beams Prefabricated Steel Structure Warehouse with H-Section Beams Prefabricated Steel Structure Warehouse with H-Section Beams Prefabricated Steel Structure Warehouse with H-Section Beams Prefabricated Steel Structure Warehouse with H-Section Beams Prefabricated Steel Structure Warehouse with H-Section Beams Prefabricated Steel Structure Warehouse with H-Section Beams

Large Image :  Prefabricated Steel Structure Warehouse with H-Section Beams

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV, ISO
Model Number: Ruly0379
Payment & Shipping Terms:
Minimum Order Quantity: 300 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: Steel frame pallets and loaded into 40’HQ
Delivery Time: 30 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 20000 Square Meter Per Month
Contact Now

Prefabricated Steel Structure Warehouse with H-Section Beams

Description
Type: Steel Structure Workshop Raw Steel Material: Q235B, Q355B, ASTM A36
Service Life: 50 Years Wall And Roof: Rock Wool
Surface Treatment: Painting Working Scope: Design,Fabrication, Installation
Columns & Beams: H-section Steel Standard: AISC, ASTM, BS, DIN, GB, JIS
Highlight:

Prefabricated Steel Structure Warehouse Building

,

Q235B Steel Structure Warehouse Building

,

ASTM H Section Steel Structure Workshop

H Section Steel Structure Warehouse Building Prefabricated
Product Specifications
Attribute Value
Type Steel Structure Workshop
Raw steel material Q235B, Q355B, ASTM A36
Service life 50 Years
Wall and Roof Rock wool
Surface treatment Painting
Working scope Design, Fabrication, Installation
Columns & Beams H-section steel
Standard AISC, ASTM, BS, DIN, GB, JIS
Product Description

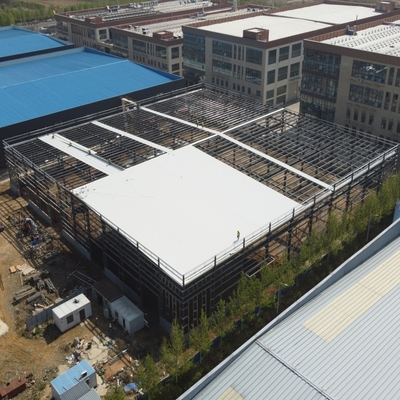

Manufacturing Plant/Steel Structure Building/Prefabricated Steel Structure Warehouse. This prefabricated workshop building features welded H-section steel columns and beams connected by high strength bolts to form the main frame structure.

Structural Specifications
Steel Frame H section steel | Q235/Q355 steel plate thickness: 8-30mm
Welding Automatic submerged arc welding
Rust removal Sand blasting
Surface finish Alkyd paint or galvanized
Intensive bolt M20, Grade 10.9
Supporting System Angle brace: L50x4, Steel Q235, processed and painted
Horizontal brace: Φ20, Steel Q235, processed and painted
Column brace: Φ20, Steel Q235, processed and painted
Tie rod: Φ89*3, Steel Q235, processed and painted
Ordinary bolt: M12 Galvanized bolt
Roof System Purlin: C160*60*2.5, Steel Q235, galvanized and painted
Roof panel: Sandwich panel or corrugated steel sheet
Sky light: 6mm thick PVC
Accessories: Glass cement, self-tapping screws, etc.
Edge cover: 0.4mm steel sheet profile trimming
Gutter: 0.4mm thick sheet steel profile or galvanized sheet
Down pie: Φ110PVC
Wall System Purlin: C160*60*2.5, Steel Q235, painted
Wall: Sandwich panel or corrugated steel plate
Accessories: Glass cement, self-tapping screws, etc.
Edge cover: 0.4mm steel sheet profile trimming
Ventilation: Ventilation ball
Doors & windows: Rolling door/sliding door PVC/alu/steel/window
Service Scope
  • Structural steel fabrication, painting, galvanizing, pre-assembly
  • Designing, fabrication and installation for prefabricated steel structure buildings
  • Deepening or designing fabrication drawings based on architectural drawings
  • Engineering consulting service
Prefabricated Steel Structure Warehouse with H-Section Beams 0
Packing and Transport

All structure components, panels, bolts and accessories are packed with standard packaging suitable for ocean transportation and loaded into 40'HQ containers. Our skilled workers use cranes and forklifts to load products carefully to prevent damage.

Prefabricated Steel Structure Warehouse with H-Section Beams 1
Frequently Asked Questions
What quality assurance do you provide and how do you control quality?

We have established procedures to check products at all manufacturing stages - from raw materials to finished goods. Third-party testing by SGS, BV and others is available.

Can you offer designing service?

Yes, our design engineers can create full solution drawings using Auto CAD, MTS, 3D3S, Tarch, and Tekla Structures (Xsteel) V12.0 software.

Do you offer guiding installation on site overseas?

We provide detailed installation drawings and can offer installation supervision and training services. Our professional engineers can supervise overseas installation when needed.
