Prefabricated Steel Structure Workshop for Frozen Food Storage

Prefabricated Steel Structure Workshop for Frozen Food Storage
Prefabricated Steel Structure Workshop for Frozen Food Storage
Prefabricated Steel Structure Workshop for Frozen Food Storage Prefabricated Steel Structure Workshop for Frozen Food Storage Prefabricated Steel Structure Workshop for Frozen Food Storage Prefabricated Steel Structure Workshop for Frozen Food Storage Prefabricated Steel Structure Workshop for Frozen Food Storage Prefabricated Steel Structure Workshop for Frozen Food Storage Prefabricated Steel Structure Workshop for Frozen Food Storage

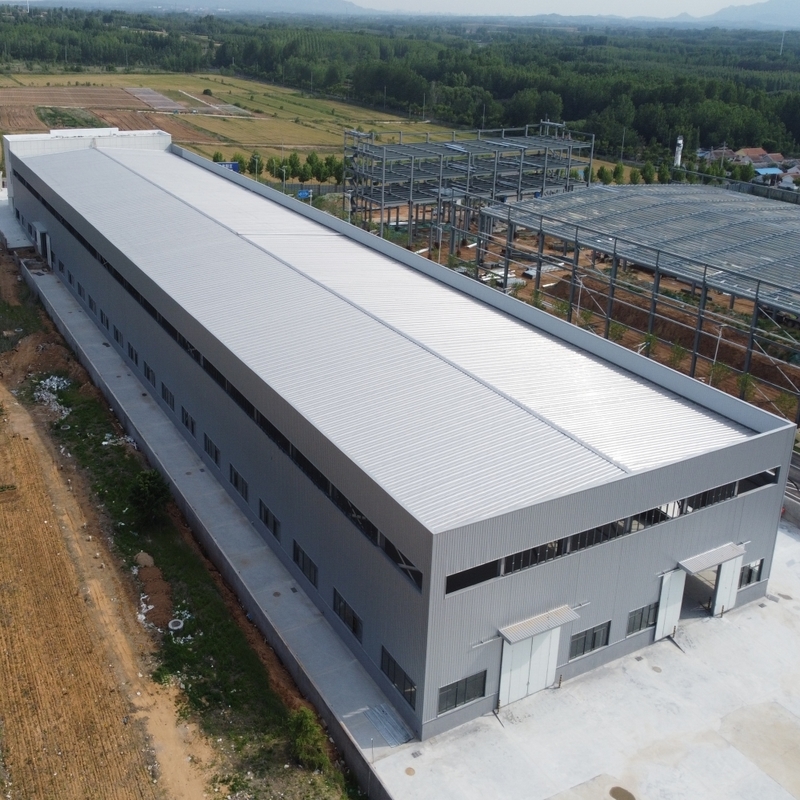

Large Image :  Prefabricated Steel Structure Workshop for Frozen Food Storage

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV, ISO
Model Number: Ruly0034
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 20000 Square Meter Per Month
Contact Now

Prefabricated Steel Structure Workshop for Frozen Food Storage

Description
Application: Pre Workshop Building Usage: Steel Structure Workshop， Factory Buildings
Type: Steel Structure Workshop Raw Steel Material: Q235B, Q355B
Surface Treatment: Painting Or Hot-dip Galvanize Service Life: 50 Years
Wall And Roof: Glass Wool Working Scope: Design,Fabrication, Installation
Highlight:

Steel Structure Building Food Workshop

,

Q355B Steel Structure Food Workshop

Large Span Frozen Food Workshop / Prefabricated Steel Structure Building
Product Specifications
Attribute Value
Application Pre Workshop Building
Usage Steel Structure Workshop, Factory Buildings
Type Steel Structure Workshop
Raw steel material Q235B, Q355B
Surface treatment Painting or Hot-dip Galvanize
Service life 50 Years
Wall and Roof Glass wool
Working scope Design, Fabrication, Installation
Product Overview

Our prefabricated steel structure buildings offer numerous advantages for frozen food workshop applications:

  • Lightweight yet high strength construction with large span capabilities
  • Rapid construction - factory-prefabricated components enable fast on-site assembly (6000m² building in just 40 days)
  • Aesthetic flexibility - clean modern lines with multiple color options for wall panels
  • Cost efficiency - reduced foundation requirements and faster completion compared to concrete structures
Prefabricated Steel Structure Workshop for Frozen Food Storage 0
Project Specifications
Parameter Specification
Structure Type Portal frame, single ridge, three spans
Dimensions 110m (Length) × 60m (Width)
Eave Height 12m
Roof Slope 10%
Gable Wall Column Spacing 7.5m
Roof Material 75mm thick Rock wool sandwich panel
Wall Material 75mm thick Rock wool sandwich panel
Door Type Sliding door
Window Type Ribbon Skylight
Height difference (indoor/outdoor) 300mm
Technical Components
Main Steel Frame System
Component Specification
Main structure H section steel Q355, alkyd painting (two primary, two finish coats)
Roof purlin XZ160×60×20×2.5, galvanized
Wall purlin XZ160×60×20×2.5, galvanized
Intensive bolt Grade 10.9
Anchor bolt M24, steel Q235
Bracing System
Component Specification
Cross brace Φ20 round steel bar Q235, painted
Column bracing Φ25 round steel bar Q235, painted
Tie bar Φ127×3 steel pipe Q235, painted
Wall & Roof System
Component Specification
Roof panel Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU)
Edge cover 0.5mm color plate, angle Alu.
Unpowered ventilator Diameter Φ600, stainless steel
Sky lighting band 1.2mm FRP, double layer
Installation Options
  • We provide detailed shop drawings prior to installation
  • On-site training available at our factory, including sample assembly demonstration if required
Prefabricated Steel Structure Workshop for Frozen Food Storage 1
Packaging & Transportation

All components including structure, panels, bolts and accessories are packed to withstand ocean transportation in standard 40'HQ containers. Our skilled workers handle loading using cranes and forklifts to prevent damage.

Prefabricated Steel Structure Workshop for Frozen Food Storage 2
Quotation Requirements

Please provide the following information for an accurate quote:

1 Location (country, area) _____
2 Size: length×width×height _____mm × _____mm × _____mm
3 Wind load (max. wind speed) _____kn/m², _____km/h, _____m/s
4 Snow load (max. snow height) _____kn/m², _____mm
5 Anti-earthquake requirements _____level
6 Brickwall needed (height if yes) 1.2m or 1.5m
7 Thermal insulation requirements EPS, fiberglass wool, rockwool, PU sandwich panels or metal sheets
8 Door quantity & size _____units, _____(w)mm × _____(h)mm
9 Window quantity & size _____units, _____(w)mm × _____(h)mm
10 Crane requirements _____units, max. _____tons; max. height _____m
