Product Details:
|
| Application: | Structural Steel Frame Construction | Raw Steel Material: | Q235B, Q355B, ASTM A36 |
|---|---|---|---|
| Shot Blasting Level: | Sa 2.5 | Service Life: | 50 Years |
| Wall And Roof: | Rock Wool | Surface Treatment: | Painting |
| Working Scope: | Design,Fabrication, Installation | Columns And Beam: | H Section Column&Beam |
| Highlight: | H Beam Steel Frame Construction,Structural Steel Frame Construction,H Beam Steel Structure Warehouse |
||

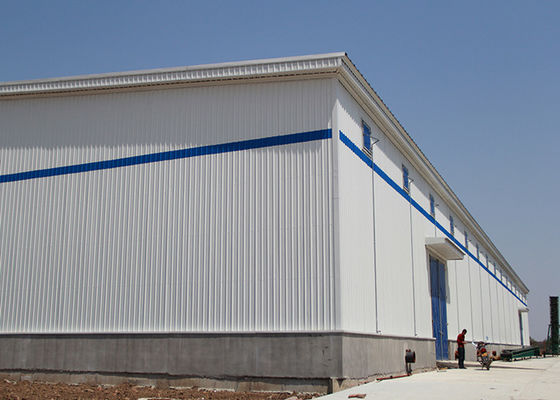

Structural Steel Frame Construction Steel Structure Warehouse
Steel structure is composed of steel material structure, is one of the main building structure types. The structure is mainly composed of steel plate, steel column, steel truss and other components, the components are usually used to between the weld, bolts or rivets connected. Because of its relatively light weight and simple construction, is widely used in large factories, venues, high-level areas.
It is mainly used for large-span structures, workshops, warehouses, office buildings, large supermarkets, logistics warehouses, showrooms, hangar, etc.
| Items | Specification | |
| Main steel frame | Colume | Q235,Q355 welded H section steel |
| Beam | Q235,Q355 welded H section steel | |
|
Secondary frame |
Purlin | Q235 C and Z purlin |
| Knee brace | Q235 angle steel | |
| Tie rod | Q235 circular steel pipe | |
| Brace | A235 round bar | |
| Vertical and horizontal support | Q235 angle steel, round bar or steel pipe | |
| Maintenance system | Roof panel | EPS sandwich panel/glass fiber sandwich panel/rock wool sandwich panel/Pu sandwich panel/steel sheet |
| Wall panel | Sandwich panel/corrugated steel sheet | |
|
Accessories |
Window | Aluminium alloy window/PVC window/sandwich panel window |
| Door | Sliding sandwich panel door/rolling metal door/personal door | |
| Rainspout | PVC | |
| Live load on roof | In 120kg/sqm(color steel panel surrounded) | |
| Wind resistance grade | 12 grades | |
| Earthquake-resistance | 8 grades | |
| Structure usage | Up to 50 years | |
| Finishing options | Vast array of colors and textures available | |
| Paint options | Alkyd paiting, two primary paiting, two finish paiting(Gray paint, red paint, white paint, epoxy zinc etc.) or galvanized | |
All the structure components, panels,bolts and sort of accessories will bewell packed with standard package suitable ocean transportation and loaded into 40’HQ.
All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers,who will prevent the goods to be damaged.
The following question we need to know before making the price. Just feel free to fill what you know.
| 1 | Location (where will be built?) | _____country, area |
| 2 | Size: length*width*height | _____mm*_____mm*_____mm |
| 3 | wind load (max. wind speed) | _____kn/m2, _____km/h, _____m/s |
| 4 | snow load (max. snow height) | _____kn/m2, _____mm |
| 5 | anti-earthquake | _____level |
| 6 | brickwall needed or not | If yes, 1.2m high or 1.5m high |
| 7 | thermal insulation | If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; . if not, the metal steel sheets will be ok. The cost of the latter will be much lower than that of the former |
| 8 | door quantity & size | _____units, _____(width)mm*_____(height)mm |
| 9 | window quanity & size | _____units, _____(width)mm*_____(height)mm |
| 10 | crane needed or not | If yes, _____units, max. lifting weight____tons; max. lifting height _____m |
