Product Details:
|
| Features: | Prefabricated Steel Building Industrial Steel Framed Buildings | Application: | Prefab Steel Industrial Building |
|---|---|---|---|
| Raw Steel Material: | Q235B, Q355B | Surface Treatment: | Painting Or Hot-dip Galvanize |
| Service Life: | 50 Years | Working Scope: | Design,Fabrication, Installation |
| Columns & Beams: | H-section Steel | Standard: | AISC, ASTM, BS, DIN, GB, JIS |
| High Light: | Sandwich Panel Prefabricated Steel Building,EPS refabricated Steel Building,EPS Steel Framed Buildings |
||

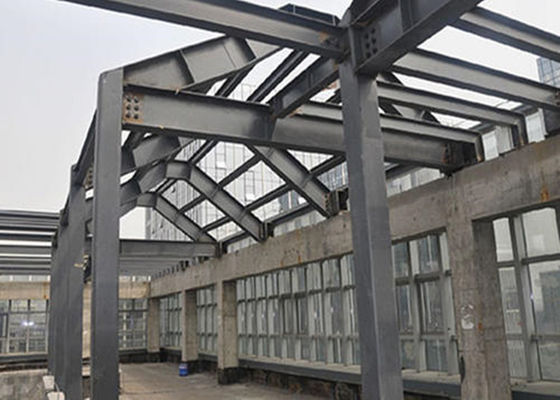

Prefabricated Steel Building Industrial Steel Framed Buildings
The industrial steel structure building is the future of the real estate market, it has many advantages.The speed of construction, flexibility and design efficiency of these types of buildings are huge advantages.When a building is commissioned, clients always want it completed as soon as possible so that they can use it for their intended purpose, whether that's starting their own business or renting it out to other businesses or sometimes even selling it to other businesses.
Rapid construction is one of the main advantages of steel construction.Most of the steel components needed to construct the structure are manufactured on site, including any protective coating that may be needed.At the construction site, this is mainly an assembly operation where all the various steel structures need to be bolted together.
Because of this special method, steel structures can be built faster than conventional brick-and-concrete structures.Rapid construction allows time-sensitive businesses, such as logistics companies and retailers, to get up and running more quickly, resulting in a faster return on investment than a conventional concrete building
| Items | Specification | |
| Main steel frame | Colume | Q235,Q355 welded H section steel |
| Beam | Q235,Q355 welded H section steel | |
|
Secondary frame |
Purlin | Q235 C and Z purlin |
| Knee brace | Q235 angle steel | |
| Tie rod | Q235 circular steel pipe | |
| Brace | A235 round bar | |
| Vertical and horizontal support | Q235 angle steel, round bar or steel pipe | |
| Maintenance system | Roof panel | EPS sandwich panel/glass fiber sandwich panel/rock wool sandwich panel/Pu sandwich panel/steel sheet |
| Wall panel | Sandwich panel/corrugated steel sheet | |
|
Accessories |
Window | Aluminium alloy window/PVC window/sandwich panel window |
| Door | Sliding sandwich panel door/rolling metal door/personal door | |
| Rainspout | PVC | |
| Live load on roof | In 120kg/sqm(color steel panel surrounded) | |
| Wind resistance grade | 12 grades | |
| Earthquake-resistance | 8 grades | |
| Structure usage | Up to 50 years | |
| Finishing options | Vast array of colors and textures available | |
| Paint options | Alkyd paiting, two primary paiting, two finish paiting(Gray paint, red paint, white paint, epoxy zinc etc.) or galvanized | |
All the structure components, panels,bolts and sort of accessories will bewell packed with standard package suitable ocean transportation and loaded into 40’HQ.
All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers,who will prevent the goods to be damaged.
